Label Roll to Sheet Die Cutter Machine with Lamination+Sheeting

Product Description

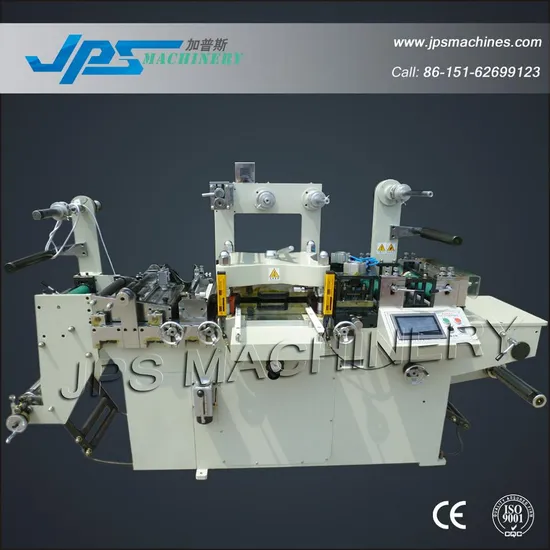

JPS-320A Label Roll to Sheet Die Cutter Machine With Lamination+ Punching + Hot Stamping +Sheeting Function
Feature:
This is a kind of flat-bed die cutting machine with high precision, whose material-going is controlled by servo motor. The three photoelectric eyes do the web guiding job. Die cutting, laminating , waste rewinding an sheeter ( or rewinding) can be finished in one process. The machine is applicable to die cut adhesive paper label, Dacron film label and laser anti-false label. It is an ideal auxiliary for flexo printer, silk-screen printer, rotogravure printer and so on.
Main Technical Parameter:

Model	JPS-320A	JPS-420A
Die Cutting Speed	20-180m/min	20-180m/min
Max Putting Diameter	650mm	650mm
Max Web Width	320mm	420mm
Max Die Cutting Width	300mm	400mm
Max Die Cutting Length	290mm	290mm
Positioning Precision	0.10mm	0.10mm
Total Power	2.5kw	3.5kw
Power Supply Voltage	220v	380v
Machine Weight	1500kg	2000kg
Dimensions(L x W x H)	2600x950x1400mm	2600x1050x1400mm

Charateritics:
1. This is a kind of flat-bed die cutting machine with high precision, whose material-going is controlled by servo motor.
2. The three photoelectric eyes do the web guiding job.
3. Die cutting, laminating, waste rewinding an sheeter (or rewinding) can be finished in one process.
4. The machine is applicable to die cut adhesive paper label, Dacron film label and laser anti-false label.
5. It is an ideal auxiliary for flexo printer, silk-screen printer, rotogravure printer and so on.
Optional Configurations:
1. Hot stamping
2. Punching
3. Laminating
4. Adding conveyor belt
5. Full-cut for die cutting
After-service:
1. Warranty for machine: 12months
2. After-service: A reply within 24 hours
3. A free training in our factory available before delivering machines
