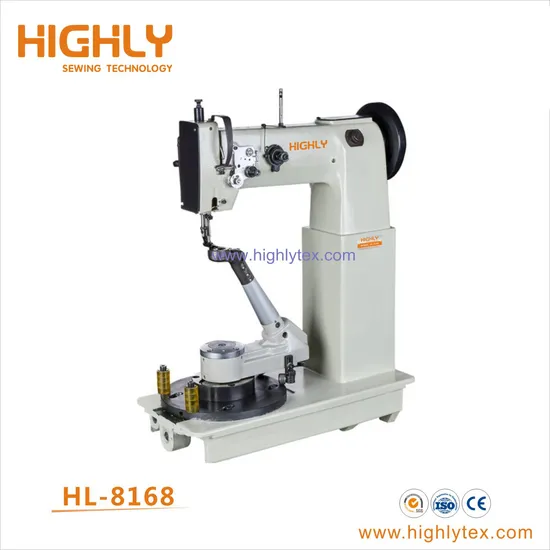

Hl-8168 Post Bed Heavy Duty Leather Sewing Machine

Product Description

HL-8168 High Cylinder Bed Heavy Duty Leather Shoes Sewing Machine
1. Light design of rocker mechanism to make the operator not easy to fatigue.
2. Oil immersed type of lubrication system, it never need to change horns when it is under normal use.
3. Separation type of drive system for shoes, when the train is on the line, it will automatically cut off the power and stop working to protect the machine from damaged.
4. The servo motor can automatically locating and lifting presser foot, the running speed can be set up by users, the speed can reach 2500r/min.
This machine adopts compound needle feed mechanism with firm stitching, uniform needle gage, and beautiful stitch. Simply design good and easy operation at work, automatic lubricating system makes long time warranty on horn part. Separated transmission makes auto power off, stop running, prevent the machine from damage when the thread is jammed. Electrical servo motor by automatic setting system and lifting the presser foot. Running speed can be adjusted by operators as required. Suitable for sporting shoes, leisure shoes and all kinds of special shoes.
HL-168 Normal Shoes
HL-168D Single Thread
HL-168S Chindren Shoes
HL-168W Sandal Slipper
HL-169 High Boot

Model			HL-168 / HL-168D / HL-168S / HL-168W / HL-169
Stitch Formation			Lockstitch
Mechanical Type			Cylinder Bed
Max Sewing Thickness			13mm
Max. sewing speed			1000rpm
Stitch Length			0-12mm
Type of Needle			DPX5
Feed Mechanism			Multiple
Packing Size			1200*500*800mm
Weight			170/150kgs

Model			HL-8168
Stitch Formation			Lockstitch
Mechanical Type			Cylinder Bed
Max Sewing Thickness			8-15mm
Max. sewing speed			2500rpm
Stitch Length			0-6mm
Type of Needle			DPX17
Feed Mechanism			Multiple
Packing Size			590*315*620mm
Weight			42/38kgs

HIGHLY brand sewing machine company is a reliable leading manufacturer and distributor for all kinds of sewing machines. The products scope include basic industrial sewing machine, such as single & double needle lockstitch sewing machine, heavy duty sewing machine, overlock sewing machine, interlock sewing machine, multi needle sewing machine, button attaching and button holing sewing machine, bar tacking sewing machine, zigzag sewing machine, handstitch sewing machine, chainstitch and blindstitch sewing machine, household sewing machine and cutting equipments. Also includes some special type and high precision technology sewing machine, such as leather sewing machine, shoes sewing machine, sofa sewing machine, jumbo & woven bag sewing machine, suitcase & handbag sewing machine, sail & tent sewing machine, labor & rope net sewing machine, seat & cushion sewing machine, programmable pattern sewing machine, mattress sewing machine, embroidery sewing machine, carpet overedging sewing machine, and so on.
We are very especially professional on super heavy thick material sewing machines and long arm sewing machines. Our sewing machines are widely used in clothes, shoes, sofa, jumbo bag, woven bag, suitcase, handbag, carpets, tent, umbrellas, luggage, leather and knitting industry. The reliable quality and good after sale service gained a positive comments and reputation from our customers. The sales network has covered more than 80 countries and regions in the world, such as South & North America, Europe, Middle East, Asia, Africa, etc. The Company has obtained in succession the certification of ISO9000, SGS, and CE certificates.
With the principle of "Highly products, Highly quality, Highly service", we would like to continue researching more advanced and functional garments machinery for different markets and requirements, so that we develop stable business cooperation with all clients from all over the world on the base of mutual benefit. "Highly Products, Highly Quality, Highly Service", you choose, you believe. You are always welcome to cooperate with HIGHLY brand sewing machine company, including OEM cooperation with your brand. You are warmly welcome to be our agency with our registered brands Highly, PARADA, WELMAC, Mastman.
