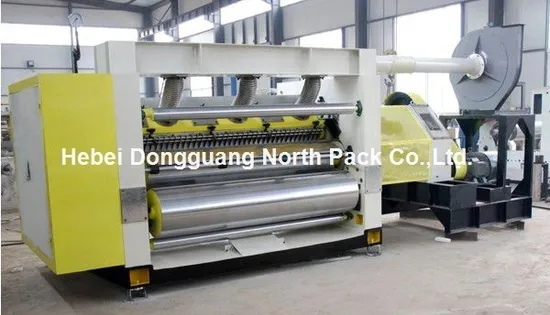

SF-320S Corrugated Roller Vacuum Adsorption Single Facer Machine

SF-320S Corrugated Roller Vacuum Adsorption Single Facer Machine

US$11,500.00-78,000.00 1 Set (MOQ)

Basic Info.

Model NO.
SF-320S
Automation
Automatic
Suitable for
Paper
Paper Thickness
Normal Specification Paper
Flute
B/C/D/E/F
Drive type
Electric
Transport Package
Plastic Film
Specification
280model
Trademark
NORTHPACK
Origin
China, Hebei
HS Code
8441309000
Production Capacity
80set/Year

Product Description

SF-320S Corrugated Roller Vacuum Adsorption Single Facer Machine

Structural Features:
1.Paper feeding: fingerless vacuum suction, with high pressure powerful draught fan,with silencer.
2.Engine base and main machine wallplate: iron casting material, thickness of the wall plate, adopt independent speed changing box, and 3 sets universal joint transmission.
3. Diameter of main corrugated roll: ¢280mm, and are made of 48CrMo alloy steel, after hardening and tempering, inner holes fine boring, NC grinding, mid frequency quenching, surface grinding and hard chrome plated, the rigidity of surface is higher than HRC52.
4. Pressure roll diameter: ¢280mm, surface are grinding and plate chrome, cylinder control up-down, raw material is 48CrMo alloy steel, hardening and tempering
5. Glue parts: pneumatic control glue supply and glue back, diameter of the applicator glue roll : ¢242mm, surface are treated by polished and chrome plated. Electric adjusting the glue quantity.
6.Press roll adopt ¢160 cylinder control adjut the gap with corrugated roll.
7.Pre-heater roll adopt seamless steel pipe, Diameter¢402mm, are all connected with rotary joint and metal soft pipe.
Technical parameter:
1 Woking width 1600mm
2 Operation direction left or right
3 Design speed 100m/min
4 Temperature scope 160-220 C
5 Pneumatic working pressure 0.4-0.9Mpa
6 Pressure 0.8-1.3Mpa
7 Flute profile UV type or UVV type
Parameter of Main roll:
1 Diameter of corrugated roll ¢320mm
2 Diameter of pressure roller ¢320mm
3 Diameter of applicator glue roll ¢242mm
4 Diameter of preheater roll ¢402mm
Motor parameter:
1 Main driving motor power 11kw
Normal voltage 380V 50HZ
Continues (S1) working system
2 Wind suction motor Normal voltage 380V 50HZ
Continues (S1) working system
3 Glue adjustment reduction box power 80kw
Normal voltage 380V 50HZ
Short time (S2) working system
4 Glue adjusting gap motor power 0.55KW
Normal voltage 380V 50HZ
Short time (S2) working system
5 Glue pump motor power 0.55KW
Normal voltage 380V 50HZ
Continues (S1) working system

Main bought-in parts and raw material and origin
No. Main parts name Origin Raw material
1 Wall plate and based wall plate Local HT200
2 Rotary joint and metal soft pipe LUGUANQIU, Shangdong
3 Main driving motor Hengshui
4 Bearing HRB, ZWZ, LYC
5 The shaft with seat HEBEI
6 High pressure fan HEBEI
7 Cylinder SHANDONG
8 Magnetic valve ZHEJIANG
9 Drain valve ZHEJIANG Stainless steel

Packaging & Shipping
After the machine is finished and running well, it will be coated with anti-rust oil, which makes the machine not easy to rust in the container, and winding film to prevent moisture. Each unit of the machine will be fixed in the container to ensure a stable and safe arrival at the destination.
Our Services 1. OEM service are available.
2. Trade Manager online, also contact by Email.
3. To solve problems by pictures/videos.
4. Engineers are available service abroad.
PS: Normally our machines are uneasy to broken because of our
professional machine making team and strict QC team, we will
also send you our manual and video, what you need to do is just
learn some basic thing such as machine maintenance.
ABOUT US
Hebei Dongguang North Pack Co.,Ltd is located in Hebei Province Dongguang County, Packaging Machinery Industry Area. We are specialized in the production of Carton packaging Machinery . We have advanced production processing equipment and high-quality technical and management personnel. Mainly produces3/5/7 layer Corrugated Cardboard Production Line, medium and high speed FLEXO Ink Printing Machine, Slotting Machine, Die-cutting Machine, Stitching Machine, Gluing Machine, stitching machine and other related series equipment. Our company has the import and export rights, products have been exported to Russia, Iran, Turkey, Egypt, India, Pakistan, the United Arab Emirates, Mesico, Brazil and other countries and regions.
FAQ
1. Are you a factory or trading company?
We are both a factory and a trading company in this field .
2. What is the terms of payment you accept?
We usually accept the T/T payment, we need 30% of total amount as deposit,
pay the 70% balance before delivery, but we can also accept the L/C.
3. Where is your factory located ? How can I visit there?
Our factory located in Dongguang County, Hebei Province, China., near to the
capital city Beijing and port Tianjin. You can fly to Beijing airport directly and we
will pick you up there.
4. How does your factory do regarding quality control?
Quality is priority. We always regard great importance to quality controlling from the very small thing(even a small screw we will choose the best quality) from the beginning.
