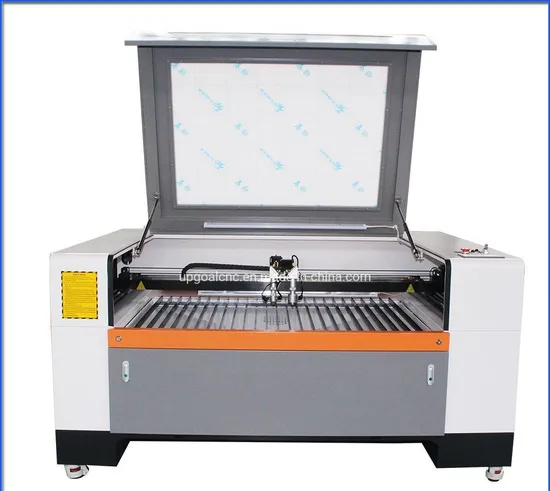

Economic Mixed Stainless Steel Wood Glass Bottle CO2 Laser Engraving Cutting Machine 1300*900mm

Product Description

Economic Mixed Stainless Steel Wood Glass Bottle Co2 Laser Engraving Cutting Machine 1300*900mm
Features
1.Welding machine bed with quenching treatment to remove away the stress .Milled by Large precision gantry milling machine ensured the accuracy.
2.Equipped with double economic mixed metal&non-metal cutting head. Stainless steel, carbon steel, acrylic, leather, foam, and wood can be cut.
Laser head A1: with Reci W6 130W Co2 laser tube, mainly used for thin 1.2mm thickness metal cutting & thick non-metal cutting, laser head A2: with Reci W2 90W Co2 laser tube, used for non-metal fine engraving cutting.

3. Adopting imported focus lens with high luminous and mirror with high relativity ensure stable power transference and laser beam consistency.
4. Working Table: double working table and auto lifting table
Honey Comb Table: applicable to various soft materials with Good adsorption effect and low reflection ratio.
Knife Strips: With oxidation treatment and low reflection ratio Ensured cutting quality

Auto Lifting Table:Maximum Loading 50kgs with 200mm up-down distance.
6.Motion System: Imported High precision, low friction force and stand wear and CSK Taiwan linear square guide rail and blocks with 3M belt ensured stable transmission, lower noise.
7.With advanced embedded Leetro MPC 8530 DSP real-time mixed metal & non-metal laser cutting control system, running faster, laser intensity and speed automatic matching, perfectly realized the consistency of the corner cutting effect high strength cutting table, applicable for metal and non-metal cutting.
8.Industrial water chiller CW-5202 is equipped to ensure the machine can work last long time.
9. With chuck or roller type rotary axis for cylinder engraving.

9.Rationalized placement of the electronic parts. Optimized heat dissipation effect. Ensured system stability and anti jamming capability.

Technical Parameters

Effective working area of each laser head	1150*900mm
Laser Type	Co2 sealed-off laser tube
Laser tube power	A1: W6 series, Reci, Beijing (Rated power: 130W, max. Power: 160W) A2: W2 series, Reci, Beijing (Rated power: 90W, max. Power: 100W)
Working table	Double working table:honey comb and strip knife
Auto lifting table	Up and down 200mm automatically
Driver mode	3 phases stepper motor and Driver, Yako brand
Guide rail	Linear square guide rail ( Hiwin,Taiwan)
Transmission	Belt transmission
Control panel	English
Laser output control	1-100% software setting
Engraving speed	0-60000mm/min
Cutting speed	0-10000mm/min
Control system	Leetro MPC8530
Control software	LaserCut 6.1
Design software when delivery	CorelDraw
Control panel	DSP offline
Resolution accuracy	< 0.01mm
Location precision	< 0.01mm
Highest scanning accuracy	2500DPI
Type of cooling	Industrial chiller, CW-5202 cooling
Water protection system	Yes
Oxygen control system	Have
Blow-off system	Air pump(138W) and air blower(550W)
Working temperature	0-45 °C
Operating humidity	5-95% (without condensed water)
Supporting picture format	PLT,DST,DXF,BMP, DWG,AI,LAS,etc
Voltage	AC 220V/110V, 50/60Hz, single phase
Certificate	CE/FDA

Applications
Applied to a certain of metal and non-metal materials Professional engraving/cutting such as stainless steel,carbon steel,wood,organic glass,plastic, cloth.
Widely used in the industry of Advertising, craft gift, shose, toys, garment, model, construction, package, paper and computerized embroidery &lipping.
Reference Sample Photos

For more information, just feel free to contact us!
