Double Screw Extruder for Powder Coating Line

Product Description

Double Screw Extruder for Powder Coating Line
Extruder with Hydraulic Pressure Opening Barrel
1. Main Characteristic:
1. Hand hydraulic pressure barrel; Easy to change color and cleaning
2. Three zone PID temperature control accuracy ±1°C
3. Cooling water system inside the screw
4. Separately cooling water system in barrel No. 3 zone to avoid block water passage
5. Gear box equipped with lubricating system
6. Gear box equipped with water cooling system
7. Feeding area has permanent magnetic metal remover
8. Extruder noise lower than ≤80dB
2. Main Technical Characteristic:

1.The changing during moving gap is zero
2. High disperse efficiency
3. Self-cleaning system
4. Double temperature PID control, control accuracy ±2°C
5. Barrel equipped with soft water recycle automatic cooling system
6. Low noise and high secure gear box system
7. Equipped with permanent magnetic iron remover
8. Low material consumption, electricity and material rate kg/h.kw is higher
3. Main Technical Parameter:

Model	SFJ-46A or B	SFJ-55A or G	SFJ-64A or G	SFJ-80G
Screw diameter(mm)	46	55	64	80
Length-diameter(L/D)	14:1	16:1	15:1	15:1
Capacity(Kg/H)	100~180 or 100~280	300~400	400~500	600~800
Screw motor power(kw)	15, 6 or 22, 4	30	45	55
Feeding motor power(kw)	0.37	0.37	0.55	0.55
Heating power(kw)	0.75*4	0.75*6	1*5+0.75*1	2*5+1.5*1
Mixing motor power(kw)	-	0.37	0.37	0.37
Screw speed(rpm)	0~500/0~800	0~500	0~500	0~500
Temperature control system	±2°C Double temperature PID auto-control. Accuracy ±2
Speed adjust system	Adjustable speed by means of frequency inverter
Feeding system	Variable by means of frequency inverter
Cooling system	Water cooled
Equipped with	Screw feeding
	Permanent strong-magnetic device
Overall dimension(mm)		2650*900*1900	2900*900*2000	3600*950*2260

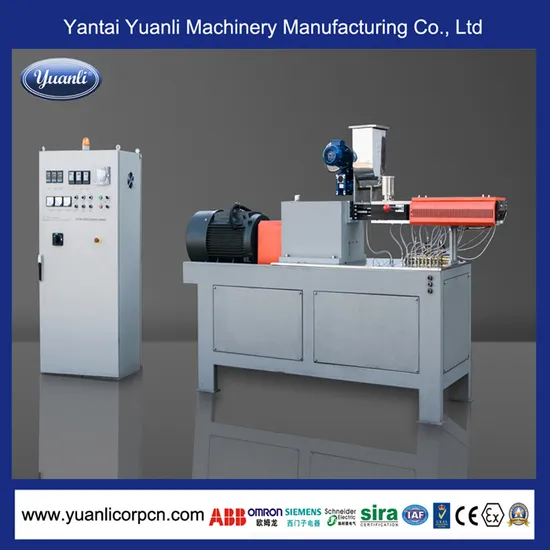

4. Machine Pic:
5. Company Profile:
Yantai Yuanli Machinery Manufacturing Co., Ltd. with more than 27 years experiments, offer wide range of services in powder coating field from A to Z including know-how, technology, machinery, raw material, technical support.
Our product has been supplied all around China and exported to international market like, Italy, Iran, Turkey, India, Thailand, Egypt, Malaysia, Czech, Poland, Russia, USA.

As the first and pioneer of powder coating production machinery supplier in China, Yantai Yuanli Machinery Manufacturing Co., Ltd. with very good reputation in domestic and overseas, supplying high quality machines and services.

6. Workshop View:
We make machining part in our own factory to control the quality of the machine parts to make sure the machine's quality.
7. Our Certificate:
CE Certificate
CE Certificate authorized by APRAGAZ Inspecting Authority from Belgium
Sira Certification Service
The Quality Management System of Yantai Yuanli Machinery Manufacturing Co., Ltd. has been assessed by Sira Certification Service and found to comply with GB/T19001-2008 idt ISO9001:2008 for the Design, manufacturer and sales of electrostatic power production equipment.
8. Our Advantage & Service:
-Technical Support Online Service Provided
According to customer's requirement, we provide layout (plant designer), excellent mechanical engineer, excellent electrician, etc.
-On-site Training Service Provided
In customer factory, we provide all kinds of training, including installation, commissioning
-Long-term Maintenance Provided
In the area of maintenance, we offer needs-oriented and standardized maintenance packages, such as the overhaul of components, gearboxes, in order to guarantee the safe and economic operation of plant and machinery.
-Spare Parts Replacement and Repair Service Provided
Providing spare parts for all kinds of powder coating processing equipment in long-term. And can provide tailored made spare parts according to customers' requirements. Ensure advanced craft, good material and high precision.
Formulation Provided (our advantage):
Some customers are worried their final products if can get best result, we have our own formulator (Engineer for powder coating formulation) who is testing and updating the formulation according to customer requirement all the time. And have very good experience for the formulation to support customer to make different effect powder coatings.
9.Coating Show:
We sincerely welcome customers from all over the world come to visit and negotiation with us!
