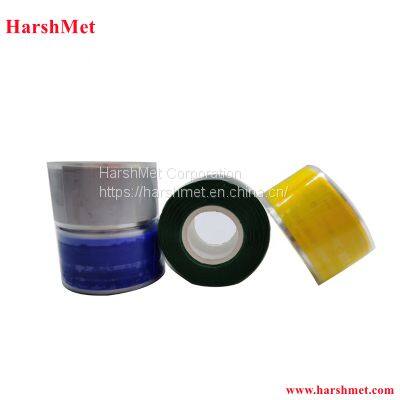

SFT-40C Transaprent Silicone Rubber Self Fusing Tape
Descriptions
HarshMet SFT-40 transparent silicone rubber self fusing tape is a high temperature and arc-and-track resistant tape composed of self fusing, inorganic silicone rubber and easy-tear and easy-strip liner. SFT-40 has wide
temperature tolerance of -50 to 250 . It can be
applied through 15kV for insulation and sealing for cable and reenter connections.
Sizes
Thickness* Width(mm)Length
0.25*25, 0.25*30, 0.3*25, 0.3*30, 0.4*25, 0.4*30, 0.5*25 , 0.5*38.1, 0.5*30 , 0.5*45 , 0.5*50, 0.75*25, 0.75*30, 0.75*38.1, 0.75*45, 0.75*50, 0.8*50, 0.5*100, 0.7*100
Standard 3m, or any custom length

Features
Standard colors, black, red, yellow, green, gray, blue, orange, etc
Excellent track and arc resistance
Excellent ozone resistance
High Dielectric strength
Workable in extremely low temperatures
Excellent conformability, excellent fusion
Excellent weathering characteristics
Applications
As an ove-wrap for protection of terminating high voltage cables against arcing and tracking. Suitable for submarine cables, large motors, sensors, motors, electrical connections in aircraft engines and insulation wrap electrical equipment.
Technical Data
PerformanceTypical dataTest Method
Thickness0.51mmASTM D1000-76
Tensile Strength23N/10mmASTM D-1000
Elongation640%ASTMD -1000
Dielectric Strength35KV/mm, airASTM D 1000
39KV/mm, oil
33 KV/mm, oil at 180ºC ±5ºCGB-T1695-2005
FusionPass
UV ResistancePassASTM D 4388
Ozone ResistancePassASTM D 4388
Xenon-arc exposure@1008hPassASTM D 4388
