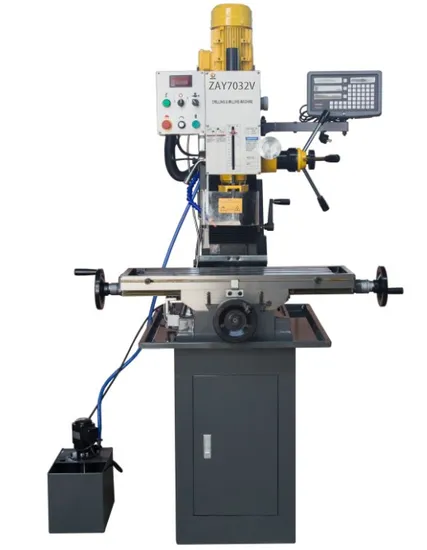

bridgeport milling machine ZAY7032V/1 with auto feeding
| US$1,400.00-1,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZAY7032V/1
Type
Worktable Milling Machine
Object
Tool
Structure
Desktop
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Integral
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
Normal Precision
Certification
GS, CE, ISO 9001
Condition
New
Table Size
800X240mm
Drilling Capacity
45mm
Spindle Travel
130mm
Spindle Taper
Mt3/R8
Motor Power
1.1kw
Transport Package
Standard Plywood Package
Specification
CE
Trademark
WMTCNC
Origin
Anhui
HS Code
84592900
Production Capacity
50 Sets/ Month
Product Description
Product Description FeatureVariable speed
Milling, drilling, boring, reaming and tapping
Head swivels 90 vertical
Micro feed precision
Adjustable gibs on table precision.
Strong rigidity, powerful cutting and precisely positioning.
Machine main Specification:
| Specification | ZAY7032V/1 | ZAY7040V/1 | ZAY7045V/1 |
| Max.Drilling capacity | 32mm | 40mm | 45mm |
| Max. face mill capacity | 63mm | 63mm | 80mm |
| Max. end mill capacity | 20mm | 20mm | 32mm |
| Distance from spindle nose to table | 450mm | ||
| Min. distance from spindle axis to column | 260mm | ||
| Spindle travel | 130mm | ||
| Spindle taper | MT3 or R8 | MT3 or R8 | MT4 or R8 |
| Range of spindle speed(2 steps) | 100-530, 530-2800rpm | ||
| Auto-feeding steps of spindle | 6 steps | ||
| Auto-feeding amount of spindle | 0.06-0.30mm/r | ||
| Swivel angle of headstock(perpendicular) | ±90° | ||
| Table size | 800×240mm | ||
| Forward and backward travel of table | 175mm | ||
| Left and right travel of table | 500mm | ||
| Motor power(DC) | 1.1kw | 1.1kw | 1.5kw |
| N.W/G.W | 320/370kgs | 320/370kgs | 325/375kgs |
| Packing size(L*W*H) | 770×880×1160mm | 770×880×1160mm | 770×880×1160mm |
| Loading amount/20" container | 36pcs | ||
Guarantee Terms:
Complete service by free of charge within 13 months after B/L date Technical service will be given forever at any time. Any questions during operation, can contact us freely by email, or contact on line by Skype, WhatsApp, etc. Also can talk face to face during fairs. You will get response within 20 hours.
