Basic Info.
Application
Bridge Crane, Single Grinder Crane
Maximum Lifting Height
>20m
Certification
CE, ISO9001:2000
Transport Package
Plastic Woven Cloth, Polywood Case
Trademark
KUANGYUAN or Customized
Production Capacity
35000sets Per Year
Product Description
Product Parameters
Capacity | 1~20 ton |
Working duty | M7-M3 |
Hoisting height | 6/9/12/18 meters |
Lifting speed | 0.8 / 5.0 m/min |
Travelling speed | 5~20 m/min |
Product Description

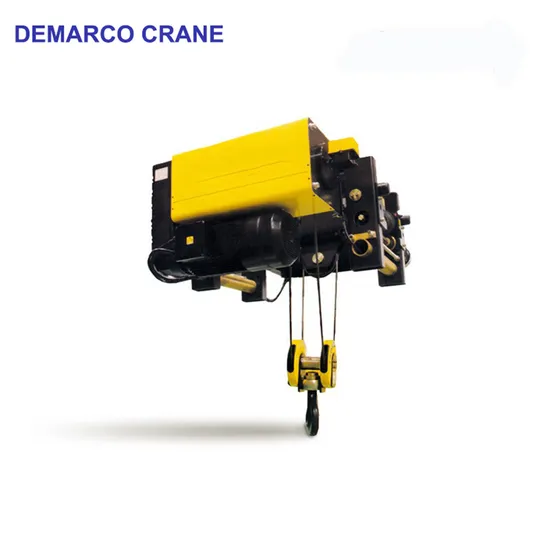

European Type Wire Rope Electric Hoist for Double Girder Crane
New type of electric hoist employs motor of hoisting mechanism and reducer imported from Germany. The integrated and compact design of hoisting motor, reducer, reel and limit switch saves space for the user. Modular design increases the reliability of mechanism meanwhile reduces the time and cost for maintaining.
It has more and faster hoist speed and various pulley ratio which can be selected. The standard traveling mechanism of trolley is controlled by converter, with speed of 20m/min, which makes a little swing and accurate position if hoisting items while trolley traveling as well as lifts precision and valuable items reliably.
Safety System
1. Overload protection
2. Emergency brake
3. Main lifting motor: With thermal protection and currency protection.
4. Hooks with latch
5. Rubber buffers
6. Travelling and lifting limite switch
7. All cranes must be tested before leaving factory and offer the certification of test.
Customizable
We can design cranes meets your need, it would be very kind of you to give us the data needed listed below:
1, lift weight (t):
2, lifting height (m):
3, Working industrial voltage (**V**Hz, 3pH):
4, How many sets do you need:
Company Profile
FAQ
Q1: What's the information should I provide when inquiry?
A1: The more details or drawings,the better.Such as Lifting capacity, Lifting height,Span,Voltage or others special requirements.
Q2: Can you provide custom service?
A2: Yes, of course. We are manufacturer and we have our own engineer group.They can out customized design according to your requirement. You just need to tell us your requirements.
Q3: Are there professional technicians to assist in the installation?
A3: Yes. We have a professional installation team and have been to many countries to assist in installation. lf you need us to provide this service,please let us know in advance and we will provide you with the best solution.
Q4: How do you guarantee the quality?
A4: We will constantly check the quality during the manufacturing process, and strictly test the equipment before shipment, and we will also send you a quality certificate.
Q5: What international certifications have your crane passed?
A5: Our crane has passed CE,ISO,GOST.SGS,TUV.BV.and so on.
