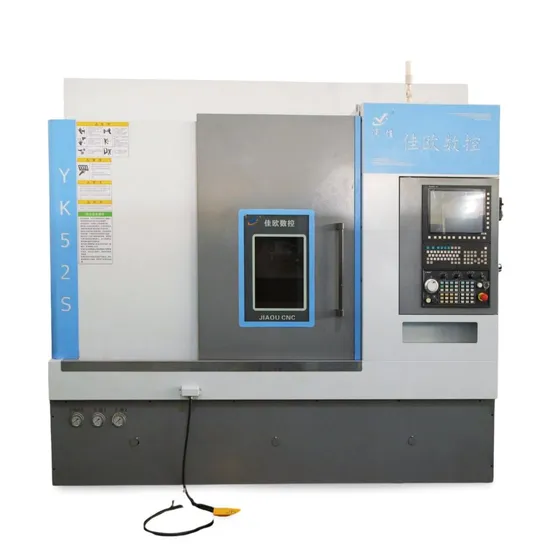

High Rigidity Complex CNC Turning and Milling Lathe Machine Yk52s

High Rigidity Complex CNC Turning and Milling Lathe Machine Yk52s

US$50,000.00-70,000.00 1 Set (MOQ)

Basic Info.

Model NO.
YK52S
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Performance Classification
Mid-Range CNC Machine Tools
Certification
ISO 9001
Condition
New
Max. Swing Over Bed
420
Max. Swing Over Carriage
250
Max. Machining Length
460
Max. Turning Dia
400
Max. Bar/Rod Material Size
52
Bed Degree
90
Main Spindle Nose
A2-6
Couter Spindle Nose
A2-5
Chuck Type
Hydraulic
Spindle Chuck Size
6"/8"
Axis
3 Axes
Tool Type
Bmt 55 Power Turret
Tool Position
12 Positions
Tool Holder Size
25*25/32
Transport Package
Wooden Case, Metal Pallet
Specification
Machine around 2570*1780*2600
Trademark
JIAOU
Origin
Taizhou City, China
HS Code
8458912090
Production Capacity
400sets/Year

Product Description

Product Description
Dual-Spindle Configuration for Enhanced Productivity
The dual-spindle setup allows for seamless transitioning between operations, enabling simultaneous machining on both ends of a workpiece. This design significantly reduces setup times and boosts overall throughput.
90-Degree Y-Axis with BMT55 Power Turret
Equipped with a 90-degree Y-axis and a BMT55 power turret, this machine offers superior milling capabilities alongside traditional turning functions. The Y-axis facilitates off-center milling operations, enhancing the machine's versatility in handling intricate geometries.
Integrated Turning and Milling Functions
This multifunctional lathe combines turning and milling operations within a single setup, streamlining workflows and minimizing the need for multiple machines. Such integration leads to reduced processing times and improved machining accuracy.
High-Precision Components from Taiwan, Japan, and Germany
Incorporating precision parts sourced from leading manufacturers in Taiwan, Japan, and Germany, the machine ensures exceptional accuracy, reliability, and longevity, meeting the stringent demands of modern manufacturing.
Rigid Slant Bed Cast Iron Structure
The robust slant bed design provides excellent rigidity and vibration dampening, maintaining machining accuracy and surface finish quality during heavy-duty operations.
Product Parameters

Machining Capacity Swing over bed mm ф420
Swing over carriage mm ф250
Max machining length mm 460
Max turning dia mm ф400
Interference diameter mm ф200
Spindle Spindle nose - A2-6
Spindle bore mm ф67
Max bar material size mm ф52
Taper of spindle inner hole Metric 70(1:20)
Spindle motor power kw 22
Chuck size inch 8
Spindle speed rpm 4000
Sub-spindle Sub-spindle nose - A2-5
Sub-spindle bore mm ф56
Max bar material size mm ф46
Taper of sub-spindle inner hole MT 6#
Sub-spindle motor power kw 11
Chuck size inch 6
Sub-spindle speed rpm 5000
Axes specs Axes travel mm Z1500 Z2500 X240 Y±50
Axes fast moving m/min Z124 Z224 X22 Y18
Repeatable positioning accuracy mm X0.003 Y0.003 Z10.005 Z20.005
Tool type Turret - 12-125-380-BMT55
Tool holder size mm 25*25/ф32
Other specs Programming ISO standard
Cooling motor w 650
Measurements Dimension around 2570*1780*2600
Weight kg around 5000

Certifications
We have our own independent R&D and design team and have applied for a number of technical patents. From high-precision spindles to bed bodies to external sheet metal, the R&D and design department designs and the production department implements, giving us full control over design and production autonomy, making it more flexible and changeable.
Company Profile
Yuhuan Jiaou CNC Machine Tool Manufacturing Co., Ltd. is located in Bingang Industrial City, Shamen Town, Yuhuan City. Our company is a technology-based enterprise, specializing in the R&D, production and sales of CNC machine tools, and has a professional technical and sales service team who has long been engaged in the design and development of CNC machine tools, constantly innovating and advancing with the times. The precision CNC lathes designed for the metal working, including gang type, turret type, mill-turn compound type, can easily handle complex, precise, small-batch, and multi-variety part processing problems, and provide customers with targeted and efficient metal cutting solutions, creating more possibilities for their intelligent and automated production processing.
Equipped with a complete quality testing system and sophisticated testing instruments, our company has passed the ISO9001 system certification to ensure that we provide customers with high-quality equipment and fast after-sales service.
We adhere to the business philosophy of "Detail first, customer first, and creating maximum value for customers", and always implements the quality guideline of "Quality first, continuous improvement". We provide full-service from pre-sales to after-sales, from products to designs, and wholeheartedly commit to providing customers with thoughtful, advanced, high-quality, cost-effective equipment.
Creating the greatest value for you is of most significance for Jiaou's efforts!
Yuhuan JIAOU CNC has multiple production workshops, from bed component blank processing, optical and mechanical assembly, installation and debugging, sheet metal laser cutting and bending, external protective sheet metal spraying, etc., all of which are independently produced and processed.
Packaging & Shipping
FAQ
Q: What's the availability of spare parts?
A: We maintain a comprehensive stock of spare parts with quick delivery options.
Q: What CNC control system does it use?
A: Our machines can be equipped with different brands of CNC control systems, such as FANUC, SIEMENS, SYNTEC, KND, GSK, etc.
Q: Do you provide operator training?
A: Yes. We welcome your engineers or operators to have operator training at our site. And we are able to provide online technical support as well.
Q: What's the lead time for delivery?
A: Faster delievery time. 10-20 days for our standard regular machines, the delivery time of customized machine need to be negotiated.
Q: Is customization available?
A: Yes. We have rich experience in custom processing and can provide flexible customization services from bed to processing parameters to appearance.
