6-8kg Commercial Home Fruits Vegetables Candy Small Lyophilizer Food Freeze Drying Machine Vacuum Home Freeze Dryer

Product Description

Product Description
Household-type freeze dryer, also known as home freeze dryer, is a small vacuum freeze dryer.Apply to the family, online
shop a small amount of freeze-dried use, widely adapted to fruits, meat, vegetables, Chinese herbal medicines, health products,
etc. freeze-drying.
Lyophilization or freeze drying is a process in which water is removed from a product after it is frozen and placed under a vacuum,
allowing the ice to change directly from solid to vapor without passing through a liquid phase. The process consists of three separate,
unique, and interdependent processes; freezing, primary drying (sublimation), and secondary drying (desorption).

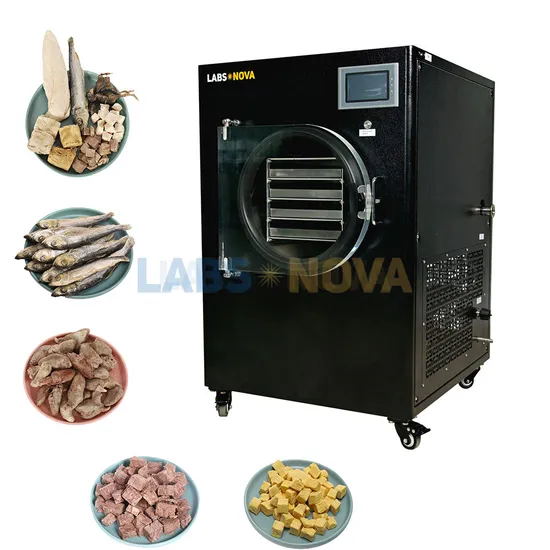

Product shows

Product feature of Freeze Dryer:
1. Stylish appearance, small size and exquisite;
2. Transparent plexiglass door for easy observation of the lyophilization process;
3. SUS304 stainless steel material plate and liner, safe and secure;
4. Acrylic door with flexbile hinge to ensure vacuum degree
5. Import of key components, low noise, high capacity, high quality and high performance;
6. Touch screen operation, one-button start, automatic control of freeze-drying process, easy and convenient;
7. The freeze-drying process can be set and adjusted in real time, and the freeze-drying data and freeze-drying curve can be displayed.
8. Advanced system, low operating current and low energy consumption;
9. One-button fast defrosting technology, over temperature automatic protection.
10.Commercial grade vacuum pump with low noise (oilless vacuum pump is optional)

Product Parameters

Product Model	WK-HF1	WK-HF4	WK-HF6
Freeze-dried Area	0.1	0.4	0.6
Cold Trap Coil Temperature	<-40ºC (no-load)
Ultimate Vacuum	15pa (no-load)
Power Supply	220V 50HZ
Power	750W	1100W	2300W
Handling Capacity	1-2KG / batch	4-6KG / batch	6-8kg / batch
Layer Spacing	45mm	45mm	50mm
Weight	50KG	80KG	120KG
Material Tray Size	140mm x 278mm three layers	200mm x 450mm four layers	300mm x 400mm four layers
Dimension	400mm x 550mm x700mm	510mm x 700mm 850mm	700mm x 800mm x 1300mm

Integrated structure, small size, easy to use, no leakage

Materials in contact with the product meet food grade requirements

The cold trap is made of stainless steel, which is anti-corrosion and easy to clean

With sample pre-freezing function

The cold trap captures ice evenly; strong ice capture ability

International famous brand compressor, which are high efficiency, energy saving, long service life, low noise.

Well-known brand vacuum pump, which are high pumping speed and higher ultimate vacuum.

Intelligently record and export data

Detailed Photos

Application Field
Company Profile
Zhengzhou Well-known Instrument & Equipment Co.,Ltd,founded in 2001,specialized in manufacturing extraction and
distillation equipment from lab scale to production scale for almost 20 years.
Our main products include Freezer dryer, Rotary evaporator, Glass reactor, Heating&cooling circulator,Water circulating
vacuum pump,Vacuum drying oven, Low temp cooling liquid circulating pump and so on.So far, our products have been
sold all over Asia, Europe and America. Also,we have covered most of laboratories in China.
Well-known has become one of the most popular and trustworthy brand.We are a manufacturer, so we can also customized
products as you need. Because our quality and service, many customer buy second times from us. Most of our standard
products are in stock and ready to ship.
Related product
Packaging & Shipping
Packaging
-The glass parts will be wrapped with foam, then put into the carton, the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, UPS, TNT, EMS and so on, you can also choose the
appropriate one based on your timeline and budget. Besides, you can choose to use your own shipping agent.
FAQ:
1. The period, scope and condition of the warranty.
(1)We offer 1 years warranty on the date of shipping from China. During the warranty time, because of manufacturing&quality
problem, we offer replacement, maintenance service.
(2)The damage caused by the transportation problem shall be borne by the seller.
2. How to solve the problem of your equipment?
Please send us email of the problem, pictures or a small video will be much better. we will find the problem and tell you how to
solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.
3.How to shipping the replacement parts?
We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
4. Could you do customized for us?
We are a manufacturer that can provide all kinds of customized services.
