PP PE Recycled Plastic Film Washing Equipment Line/Plastic Recycling Machine

Product Description

Description of the equipment for the plastic recycling line

Place of Origin:	Jiangsu ,China
Brand Name:	Polestar
Model Number:	300kg/h,500kg/h,800kg/h,1000KG/H
Certification:	SGS

Minimum Order Quantity:	1 set
Price:	25000-60000USD/set
Packaging Details:	Wood pallet covered by plastic film
Delivery Time:	60 days
Payment Terms:	L/C,T/T
Supply Ability:	35 sets/month

Quick Detail:
1.pe pp film washing line
2.film recycling line
3.waste plastic recycling machine
4. film crushing washing and drying line

Description:
Brief introduction:
The whole pe film washing line equipment is researched, design and manufactured by our company, integration of Europe technology, it has features as high efficiency, working stable, low humidity content(less than 5%). We use good quality on our washing machine(SUS-304,more than 3mm thickness) ensures whole production equipment long service life time.

Working flow:
Belt conveyor→2.crusher→3.Screw feeder→4.friction washer→5.Screw feeder→6.Floating washer→7.Screw feeder→8.Dewatering machine→9.Hot air drying system→10.Storage hopper→11.Control cabinet
Function of each equipment:
1.Belt conveyor:conveying or transporting dirty plastic films into crusher.If too much scrap iron,metal detector may be needed.
2.Plastic crusher:cutting or shearing type:cutting jumbo film or bag into small pieces
3.Screw feeder:feeding film pieces into the next step
4.High speed friction washer:clean the dirty on the surface of film scraps
5.Floating washer:clean the rest dirty on the surface of film scraps
6.Dewatering machine:dewater for film scraps to get final good quality film scraps
7.Hot air drying system and air blower:use hot air to remove the moisture from PP/PE scraps.
8.Storage hopper:store the PP/PE scraps for next step packing.
9.Control cabinet:elements:

Applications:
This PE film washing line can be suitable for recycling PE PP bag, woven bag, non-woven bag, HDPE milk bottle, oil barrel, Oil tank, car cover, agricultural film etc.
Specifications:

Capacity	300kg/h	500kg/h	800kg/h
Item	Qty:(Set)	Qty:(Set)	Qty:(Set)
Belt conveyor	1	1	1
Wet Crusher	1	1	1
Screw feeder	1	1	1
Hot washer	----	1	1
Screw feeder	----	1	1
High speed friction washer	1	1	1
Floating washer	1	1	2
Dewatering machine	1	1	1
Pipeline dryer	1	1	1
Storage silo	1	1	1

Competitive Advantage:
My friend,if you are interested in our pe film crushing and washing line
Pls tell me:
1.What about the pollution degree of your film? Is it oily?
2.What is the capacity of one washing line you required?
3.Do you need the related machines or other machines?

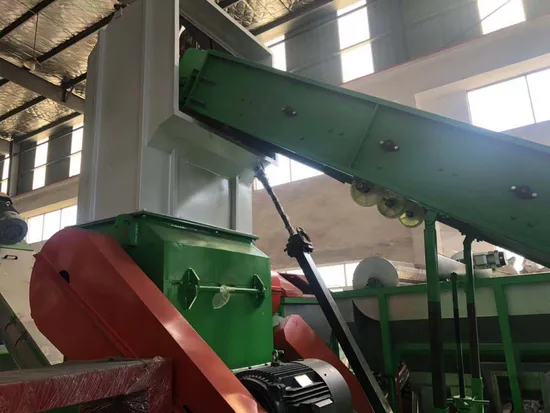

picture of the machines
GLY-3114
