S212-80L Explosion-Proof Double-Layer Glass Reactor Equipped with Universal Casters Jacketed Glass Reactor

Product Description

S212-80L Explosion-proof double-layer glass reactor equipped with universal casters jacketed Glass Reactor Product Description
S212-80L Jacketed Glass Reactor
Brief Introduction:
The double-layer glass reactor is mainly used for testing and production in the pharmaceutical, chemical, biological products and other industries. This product is under the vacuum negative pressure condition, using the principle of constant speed stirring to uniformly stir the raw materials, so that the material can fully react in the kettle body. The glass interlayer can be externally connected with high temperature circulation equipment to heat, evaporate, separate and recover the materials in the kettle. And other operations; external refrigeration cycle equipment can also be used to react to low temperature reaction in the kettle; if there is heating and cooling in the material reaction process, external high and low temperature circulation devices can be used. Moreover, the contact parts with materials are all made of high-temperature and corrosion-resistant high borosilicate glass and polytetrafluoroethylene material, which is especially suitable for the reaction of easily decomposing denatured biological products, and is not easy to react with various materials.
Working Principle
Under the vacuum negative pressure condition, the stirring rod is stirred at a constant speed by using the speed-regulating knob, so that the material is fully reacted in the kettle body, and the heating or cooling reaction of the material in the kettle is indirectly heated by the glass interlayer external heating or cooling device, and the reaction process is heated during the heating process. The resulting solvent vapor is rapidly cooled, distilled or refluxed via a cooling coil of a glass condenser. After the reaction is completed, the material can be quickly discharged through the oblique discharge valve.
The double-layer glass reactor has the main capacity of 1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L, 100L, 150L,200L, all of which have the function of lower discharge. More than 10 liters are equipped with universal casters for easy movement and The temperature display function in the kettle.
It can be used together with the vacuum pump to improve the working efficiency; the cooling coil of the glass condenser can be used together with the low temperature coolant circulating pump to improve the recycling efficiency. Please purchase the matching equipment at the discretion of the customer. The kettle body interlayer can be equipped with heating, refrigeration equipment or high and low temperature circulation devices according to the material reaction requirements.

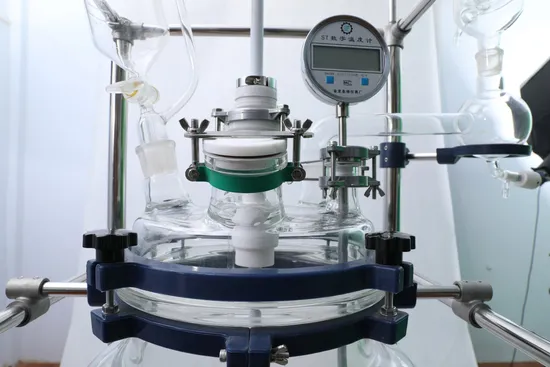

Detailed Photos
Product Parameters
Specifications

Model	S212-50L	S212-80L	S212-100L
Glass Material	GG-17	GG-17	GG-17
Frame Material	304 Stainless steel	304 Stainless steel	304 Stainless steel
Fittings Material	304 Stainless steel	304 Stainless steel	304 Stainless steel
Moves	Brake Caster	Brake Caster	Brake Caster
Reaction bottle capacity	50L	80L	100L
Jacketed Capacity	12L	16L	18L
Flanged out of the oil circulation port	Low feed high outlet	Low feed high outlet	Low feed high outlet
Reaction bottle cover	Six port	Six port	Six port
Discharger port distance to ground	450mm	450mm	450mm
Temp. range	-80-250ºC	-80-250ºC	-80-250ºC
Vacuum degreee	0.098Mpa	0.098Mpa	0.098Mpa
Stirring speed	0-450rpm	0-450rpm	0-450rpm
Stirring diameter	12mm	15mm	15mm
Stirring power	120W1/3	250W1/3	250W1/3
Coltage(V/Hz)	220V/50Hz	220V/50Hz	220V/50Hz
Dimension(mm)	760*560*2450	610*610*2400	610*610*2400
Packing size(mm)	1720*680*850	1900*700*870	1900*700*870
Packign weight(KG)	92	125	125
