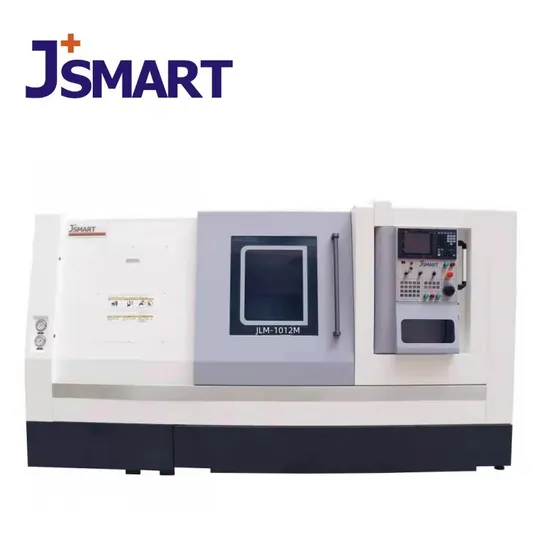

JLM-1012 Large Span for Machining Length More Than 1m CNC Lathe machine

Product Description

JLM-1012
	Max. swing diameter over bed	mm	∅650	Control system			MITSUBISHI M80B
Machining	Max. swing diameter over camiage	mm	∅370	Tool	Center height	mm	100
capacity	Max. turning diameter	mm	∅650	turret	Cutter diameter	mm	∅380
	Interference diameter of adjacent tool machining	mm	∅230		Numbers of tools	pcs	12
	Max. machining length	mm	1050		Shank diameter of square tool holder	mm	25
	Max. stroke of Z axis	mm	1080		Shank diameter of boring tool holder	mm	40
	Max. stroke of X axis	mm	350	Tailstock	Distance between centers	mm	1060
	Motor power of Z1 axis	Kw	3		Drive Mode	-	Driven by Servo
	Motor power of Z2 axis	Kw	2.2		Center interface	mk	5#
	Motor power of X axis	Kw	2.2	Appearance	Machine tool appearance	mm	3400*20100*2050
	Rapid traverse of X / Z1 / Z2 axis	m/min	25	& Weight	Machine tool weight	Kg	7400
Spindle	Spindle nose	-	A2-8
	Spindle diameter	mm	∅230
	Bar specification (Standard/Optional)	mm	∅75/90
	Supporting chuck	inch	12"
	Motor power (continuous / 30min)	Kw	11/15
	Max. speed	rpm	3200
	spindle motor torque (rate/max)	Nm	70/95.5
	spindle motor current (continous/30min)	A	61/71
	C-axis resolution	1/n	1024/32768

JLM Series Characteristics
JLM-106 / JLM-106M
JLM-508 / JLM-508M
JLM-1012 / JLM-1012M
JLM-1 series adopts the compact design concept, especially for machining shorter parts, to provide customers with a turning and milling composite center with high cost-effectiveness.
JLM-5 series is specially designed for machining ultra-long part. The effective machining length in Z axis is 500mm, and the outer diameter taper of machined product at the maximum stroke is less than 0.008mm, which is much excellent than the industry standard and national standard.
JLM-10 series machine is designed to have a slant bed and a saddle with large span, achieving better rigidity and stable cutting performance.
with a large swing over bed and an effective machining length of more than 1,000 mm, both long-axial and disc parts can be machined by this series machine. The machine is equipped with standard MT5 servo tailstock, with high precision and fast speed. It is also optionally provided with a variety of optional accessories, such as steady center rest and servo follow rest, which can provide more machining solutions for customers.
JLM series is the type of general-purpose machine, which equipped with high-rigidity bed and roller linear guide rail, combined with the advantages of heavy cutting and fast travel, and fixed with standard hydraulic tailstock under programmable control, so it can meet the machining demand of customers to the greatest extent.
With Its powerful cutting performance and extreme machining accuracy, the JLM series CNC lathe and CNC milling and turning machine of Jhenjet Intelligent combines the advantages of high spindle motor power, high-rigidity bed and turret to provide customer with efficient machining capability.
Base
Integrally formed rigid structure
Add specific trace elements to improve stability
30-degree inclined bed
Easy for chips removal, close-distance operation, and handling
Servo Turret Series
Compact design, small size, high stability, and simple structure.
Servo motor drive design for fast two-way tool selection.
Extremely strong hydraulic locking force provided by three-piece clutch locking device.

CNC system
The Mitsubishi system is the best choice to provide you with stable multi-axis combined machining, and it can optimize your product process while ensuring better product consistency, improving your machining effciency.
Meanwhile, its after-sales service is as timely and efficient as expected by Jhenjet Intelligent.
Hydraulic System
Korea or Japanese hydraulic system is adopted to improve equipment stability.

Spindle
The spindle is supported by front three and rear two roller bearings to improve the rigidity of the spindle and reduce the runout of the spindle.
The spindle has a strong hydraulic clamping force to facilitate the replacement of collets and chucks.
Screw rod and guide rail
The screw pitch in X and Z directions is perfectly matched to create a more perfect appearance effect and an excellent rapid feeding.
Internal Workpiece
