Automatic Die Cutting and Creasing Machine

Product Description

MQ-QPSeries High-Speed Corrugated Board Die Cutting and Creasing Machine
Company Profile Yutian Shengtian Printing and Packing Machinery Co., Ltd.Was founded in 1999, come by former Tangshan Shengtian Printing and Packing Machinery Co., Ltd.(1996), It is a colligated enterprise including design, manufacture and sales.It is a technological enterprise, and professionally produces flute laminator, waterbased film laminator and die-cutter of three series more than 20 types.The company covers more than 41,800 square meters with 120 employees, among whom more than 30 are experienced technicians.The company riches in experienced technicians, advanced manufacturing examination equipments, well-established management system, It passed ISO9001:2008 International Quality Management System Certification in November, 2010 and CE in 2006.
Since 1996, the company has been gaining the great support from a large number of customers with its high-qualified products, richness of categories and good service.The product is popular sold to the domestic market and other countries-U.K., France, Poland, Russia, U.S.A, Egypt, Iran, Turkey, Pakistan, Thailand, etc, many countries and regions.
The company insists of the precept-Developing With New Technology and Making the Top-grade Product.It introduces advanced technology from abroad, cooperate with well-known university-Peking Printing University to develop.At the same time the company attaches importance to after-sale service, set up a full-time after-sale service team with enginrrtd, after-sale service hotline, and customer feedback information system, to provide more efficient service for customers.
New situation, in new century;High standard, at high start point encourages Shengtian people to pursue:Same standard, more reasonable price;Same price, better quality;Same quality, more excellent service;Same service, higher standard.Shengtian Company wishes with high standard, more excellent quality more reasonable price, much better service, joint hands with all fiends domestic and oversea in the business to create a bright future together. Product Parameters

MODEL	MQ1500QP	MQ1700QP
Max.paper size	1520×1200	1720×1200
Min.paper size	550×450	550×450
Max.die-cutting size	1500×1180	1700×1180
Thickness of the paper	≤9mm(Corrugated board)	≤9mm(Corrugated board)
Gripper margin	12-25mm, standard15mm	12-25mm,standard15mm
Max. working pressure	400t	400t
Max. speed	5500sheets/h	5000sheets/h
Total power	40kw	40kw
Air source pressure/Air flow	0.6-0.7/MPa>0.6m³/min	0.6-0.7/MPa>0.6m³/min
Overall dimensions (L×W×H)	10970×5800×2900mm (with pedal and lifter)	10970×6000×290mm (with pedal and lifter)
Machine weight	37t	38t

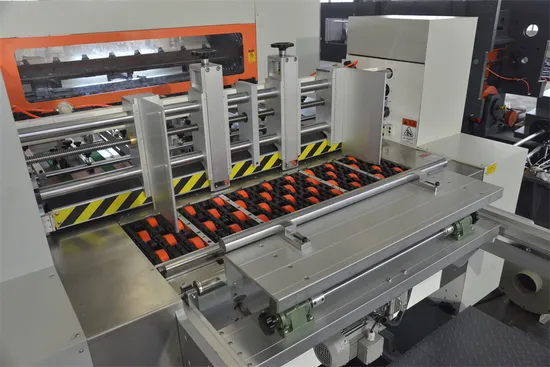

Detailed Photos
After Sales Service
YUTIAN SHENGTIAN PRINTING&PACKING MACHINERY CO., LTD.
Address: Changsheng Street, Yutian Economic and Technological Development Zone, Hebei Province
Aftersale service:the buyer will send an engineer for installation and operator training.
