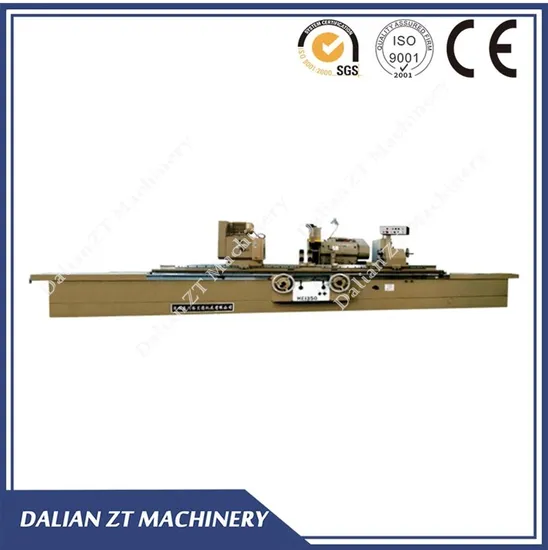

Conventional Universal Large Cylindrical Grinding Grinder Machine ME1450Ax1500

Conventional Universal Large Cylindrical Grinding Grinder Machine ME1450Ax1500

US$50,000.00-70,000.00 1 set (MOQ)

Basic Info.

Model NO.
ME1450Ax1500
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE, ISO 9001
Condition
New
Cylindrical Diameter
30-500mm
Workpiece Length
1500mm
Roundness
0.0025
Max. Workpiece Weight
1000kg
Machine Center Height
270mm
Wheel Speed
35m/S
Headstock Center
Morse 6
Tailstock Center
Morse 6
Total Motor Power
34.525kw
Weight of Machine
8500kg
Transport Package
Wooden Case
Specification
14kW
Trademark
Dalian ZT Machinery
Origin
China
HS Code
84602911
Production Capacity
500 Sets/Year

Product Description

The Universal Cylindrical Grinding Machine is designed for grinding cylindrical or conical external surface with accuracy of IT5 and IT6. It is most suitable for tooling or repair workshop in small batch production. The longitudinal travel of worktable is controlled steplessly by hydraulic system or by handwheeel. The infeed of wheelhead is carried out by hydraulic automatic periodic feed and also by handwheel. The rapid approach and withdrawal of wheelhead retracting of tailstock center lubrication of slideway and lead-screw are all hydraulically controlled.
Item M1450x1500
OD grinding diameter Φ30-500mm (with/without steady rest)
ID grinding diameter Φ30-200mm
Center height 270mm
Workpiece speed 8-200r/min
Roughnes Ra0.32
Wheel speed 35m/s
Max. Workpiece weight 1000kg
Grinding length External 1500mm
Width of grinding wheel 50-75mm
External wheel size ¢600x63x¢305mm/¢450x63x¢305mm
Workhead and tailstock center Morse 6
Total motor power 14kW

Standard accessories:

Oil tankl
Coolant tank;
Wheel dresser;
Wheel with flange;
Wheel balancing arbor;
Driving dog;
Parallet wedge;
Parallel wedge;

Quality Control & Inspection before Packing
We control the assembly quality as well as control the quality of casting and parts/units to ensure the machines will be good enough from appearance to performance and stability keeping.
After testing and painting before packing, we will check all the accessories item by item:
Packing & Local Transportation & Fixing
Normally we will pack the machines with fumigated wooden cases or poly wooden case and steel pallets. When the machines are loaded into the container, fixing job will be done to ensure the sea shipment safety.
FAQ
1. MOQ
1 set
.
2. DELIVERY TIME
It depends on the machine and model you choose. Mostly 2 months - 4months. All machines are 100% new and not used.

3. PAYMENT TERM
T/T 30% down payment when order, 70% balance payment before shipment.
4. WARRANTY PERIOD
13 months from the date of B/L, during the warranty period, daily damage parts will be supplied freely, the after sale service will be done by dealers . After warranty period, the spare parts will be supplied at factory price.
