Super 8k Polisher/Grinder

Product Description

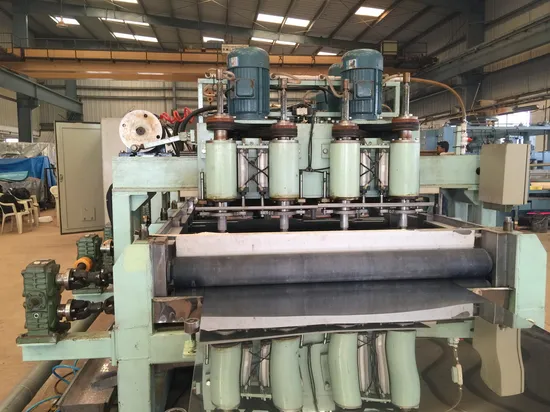

Mirror (8K) Polishing Machine

Mirror Polishing Machine is used to polish Sheet or Plates of Stainless Steel up to Highly Reflective Mirror Effect. The surface receives a uniform and directionless gloss with a magnificent brilliance.

After Grinded in Grinding Section, Sheets will feed into the polishing section. Polishing compound is evenly distributed to the flat surface of the sheets or plates, which will be polished with Rotating Buffing Felts until the surface reaches a highly reflective level.

Polishing Compound feeds the work pieces continuously from the source and then is filtered & recycled by the assistant filtering system, which will afterwards, feeds the cleaned compound back to its source for reuse.
After Polishing is done, work pieces will be processed by the following cleaning & drying unit before they are laminated with Protective Film for usage or further treatment.

Super Mirror Finishing Can be get from this machine in one pass.

Mirror (8K) Polishing Machine is featured by

--- Environment Friendly, Liquid compound will be recycled and reused, No Compound
leakage or Splash.

--- High Working efficiency, Low Operation Cost.

--- Compact Design, Machine parts are free from being etched by Polishing Compound.

--- Stable Oscillation System, Vibration lines are avoided

--- Adjustable Transmitting Speed, Forward and Backward Transmission

--- Adjustable Polishing Pressure

--- Fast Change of the Polishing heads

--- Large Polishing head with High RPM

--- Automatic thickness Adjustment, With Manual Assistance

--- Perfect Cleaning & Drying Unit, No Water mark or dirt is left after Laminating

--- Large Machine Space for Maintenance and Repairing.

--- Easy Operation

--- Best Cost Performance


Mirror (8K) Polishing Machine is composed of Inlet & Outlet Roller Table, Main Polishing Machine, Cleaning & Drying Unit, Laminator and electrical Control Unit etc.

Special Machine will be tailor-made.
Main Parameters

Work Pieces: Stainless Steel Sheets or Plates of all grades
Useful thickness: 0.5~~3 MM, 3~~6 MM
Useful Width: <=1,250 MM, <=1,550 MM, <=2,050 MM
Useful Length: 1,000~~6,000 MM
Processing Speed: 0.5~~1.0 M /Min

Non-Standard Machine will be made upon Request.
Application:

The reflectivity of Super Mirror creates light and space and is easily fabricate, it has reflectivity of Glass Mirror, but unlike Glass Mirror, It will not cause the so-called Light Pollution, Which is why it is widely used in Modern Society.


Typical Application of Mirror Polished sheet is: elevator, escalator, interior cladding, building facades, Medical & Chemical purpose etc.

Mirror Polished Sheets or plated can be further treated with Etching, PVD or other processes.
