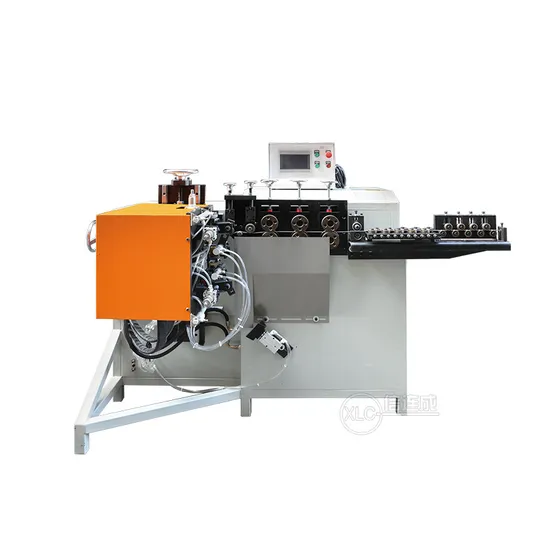

Hot-Selling New Type of Round Welding Machine Steel Wire Ring Welding Machine

Hot-Selling New Type of Round Welding Machine Steel Wire Ring Welding Machine

US$9,500.00 1 sets (MOQ)

Basic Info.

Model NO.
3-8mm
Axis Count
3 Axis
Warranty
1 Year
Weight (Kg)
800
Productivity
10-20 PCS/Min
Feeding Speed
35m/Min
Ring Diameter Range
25mm-550mm
Servo Motor
2.6kw/3000r
Ring Diameter Error
+-0.5mm
Dimension(L*W*H)
1950*1450*1500mm
Showroom Location
Turkey, Mexico, United States
Welding Loading Rate
50%
Length Error
+-0.2mm
Core Components
Motor, Gearbox, Gear
Key Selling Points
High Productivity
Welding Power
50kVA/80 Intermediate Frequency
Voltage
380VAC
Hydraulic Motor
2.2kw
Transport Package
Wooden Large Box with Screw
Specification
iron frame
Trademark
JCXLC
Origin
Guangdong, China
Production Capacity
200 Set/Sets Per Month

Product Description

Product Description
Specification
item
Value
Place of Origin
China
Warranty
1 Year
Key Selling Points
High Productivity
Applicable Industries
Construction works , Building Material Shops, Machinery Repair Shops, Manufacturing Plant
Showroom Location
Turkey, United States, Mexico
Servo motor
2.6KW/3000R
Hydraulic motor
2.2KW
Feeding speed
35m/min
Productivity
10-20 pcs/min
Ring diameter range
25mm-550mm
Wire range
2-6 mm(Low carbon steel,stainless steel,electroplate)
Ring diameter error
+-0.5mm
Length error
+-0.2mm
Welding power
50KVA/80 intermediate frequency
Welding loading rate
50%
Compress air MPA
0.6
Cooling water flow
50L/min
Size
1950*1450*1500(MM)
Weight
800KG

Packing & Delivery
Wooden large box with screw
Makeable product
Company Profile
Foshan Jinchun Industrial Automation Technology Co., Ltd., established in 1998, is a technology-intensive industrial company specializing in the development of welding technology and equipment research and manufacturing.
FAQ
1. who are we?
Foshan Jinchun Industrial Automation Technology Co., Ltd., established in 1998, is a technology-intensive industrial company
specializing in the development of welding technology and equipment research and manufacturing.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
2D Wire bending machine,3D wire bending machine,ring making butt welding machine,straightening machine,welding machine
4. why should you buy from us not from other suppliers?
Efficient communication Strong customization ability, Short lead time Stable machine performance Excellent after-sales service
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,Credit Card,Cash;
Language Spoken:English,Chinese
