Liqiang 0.1-0.32mm Hot Selling Brass Wire and Cable Drawing Machine

Product Description

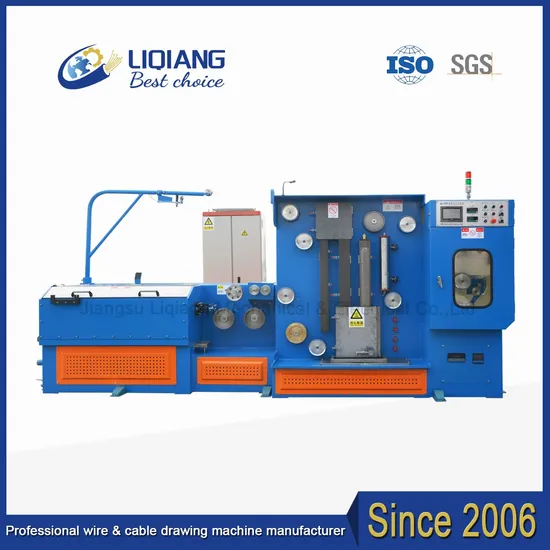

22DHT brass fine wire drawing machine

Model	22DHT
Usage	Bare brass wire drawing
Inlet diameter	Ф0.8-1.2mm
Outlet diameter	Ф0.1-0.32mm
Max. annealing speed	1500m/min
Using motor/ main motor	18.5KW
Annealing voltage & current	DC80V 120A
Annealing method	DC four section annealing
Voltage	380V or Customized
Frame	Cast
Drawing pass	22
Correction system	Automatically control
Transmission method	Timing belt
Lubrication system of drawing	immersing+spray type
Dynamic control	Double frequency converters control

1_Suitable for brass EDM wire(hard/soft) production.
2_Horizontal drawing arrangement
3_High accuracy timing belt driving.
4_Take up bobbin can be designed according to the dimension of spool provided by customer.
