Tianhe Pharmaceutical Equipment Sbh-200 for Dry Powder Mixing

Product Description

Product Description

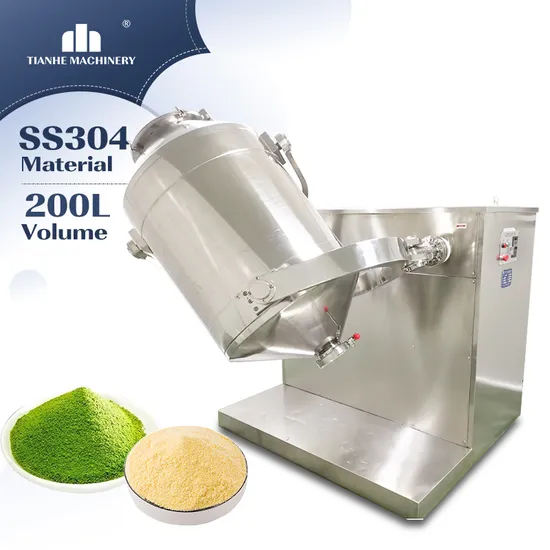

SBH Type Mixer With Three-Dimensional Swing This machine is suitable for mixing dry-powder material of pharmaceutical, chemical and food industries. It is used in mixing evenly and quickly between different proportion and fineness of materials. The working principles when the machine is in operation. Because of the running actions of the mixing tank in multi direction, the now and derision of the various kinds of materials are sped up in the process of mixing. At the same time, the phenomenon is avoided that the congregation and segregation of the material in gravity ratio caning due to the centrifugal force in the normal mixer and extremely good effect can be obtained. Series Multi directional Movement Mixer consists of the base, driving system. Electric control system, multi-directional, movement mechanism and mixing tank. The mixing tank to be in contact with the materials is made of quality stainless steel, with both inside and outside of the tank mirror polished. Because the nixing tank performs a multi directional movement, there are many points of mixing with a good effect of mixing. The uniformity of the mixing iceberg than that of the normal mixer. The shape of the mixing tank is reasonably designed with no death corner and both the inside and outside polished. The discharge of materials is free with no accumulation. It is easy to clean.The materials are mixed in an enclosed state. With no contamination to the working environment and materials.

Model	Barrel capacit (L)	Capacity max(L)	Capacity weight (kg)	Spindle speed(r/min)	Motor power (kw)	Weigh (kg)	Overall size (mm)
SBH10	10	8	5	0-15	0.55	120	800*1200*1000
SBH20	20	16	10	0-15	0.75	125	800*1200*1000
SBH30	30	24	15	0-15	0.75	150	800*1200*1000
SBH50	50	40	25	0-15	1.1	300	1000*1400*1200
SBH100	100	80	50	0-15	1.5	500	1200*1700*1500
SBH200	200	160	100	0-15	2.2	800	1400*1800*1600
SBH300	300	240	150	0-15	4.0	1000	1800*1950*1800
SBH400	400	320	200	0-15	4.0	1200	1800*2100*1950
SBH600	600	480	300	0-15	5.5	1500	1900*2100*2250
SBH800	800	640	400	0-15	7.5	2000	2200*2600*2600
SBH1000	1000	800	500	0-15	7.5	2500	2250*2600*2600
SBH1200	1200	950	600	0-15	11	2800	2400*2800*2800
SBH1500	1500	1200	750	0-15	15	3000	2500*2950*3000

Detailed Photos
Product packaging Our Service Company Profile Shanghai Tianhe Machinery Equipment Company (SHTH) is a reliable manufacturer, specialized in making
machines and turn key project of tablets and capsules production for pharmaceutical, food and chemical
processing industries.
SHTH starts from year 2011 in Shanghai, after more than ten years contentious development and accumulations,
we now expand our professional R & D center, three production and processing bases, and extend more skilled
workers and salesman. We acquire advantages all aspects to keep our machines in the leading position, and we
take fully advantage of the internet conveniences to provide our customers top ranking after sales services .
We make tablet press, mixer, capsule filling, soft capsule maker, blister packing and stick packing machines,
counter, grinder, coating machine,tablet and capsule polishing machine, as well as herb pill making machine,
vacuum feeder, vacuum collector.
Above mentioned machines are strictly follow GMP standard and acquired CE certificates. Our patented
models are especially popular in both domestic and overseas markets, as they always be most practical and
easier to use type. Clients love to buy from us also because of our fast shipment, you can always get the package
safe and easy.
SHTH provide not only nice machines, but also practical and specific solutions that aiming to boost our
end users' business.
In short, with us your money is safe, and your business is growing.
We appreciate the chances to work with you!
Certifications
FAQ
1. How long is the machine warranty?
The whole machine has a one-year warranty and lifetime maintenance and aftersales services.
2. Is there a instructional video?
We provide insturction videos and we also support online video call instruction 7/24 service.
3 What shipping service do you offer?
We support fast and safe delivery services by DHL, Fedex, UPS, SF express
We also have DDP services to almost all the countries.
4. Do you support samples making before placing order?
We Support samples making, as long as you can manage sample materials to us, we try on our machine
and take videos or we support online video call for the sample making process.
5. Do you support OEM or ODM?
Yes, we are facotry, and we have a strong RD team , we support customization for machines, and we make
blueprint specific practical for your program.
