US$5,000.00-50,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Automatic Grade
Automatic
Transport Package
Woodencase
Production Capacity
1000pieces/Year
Product Description
Product Description

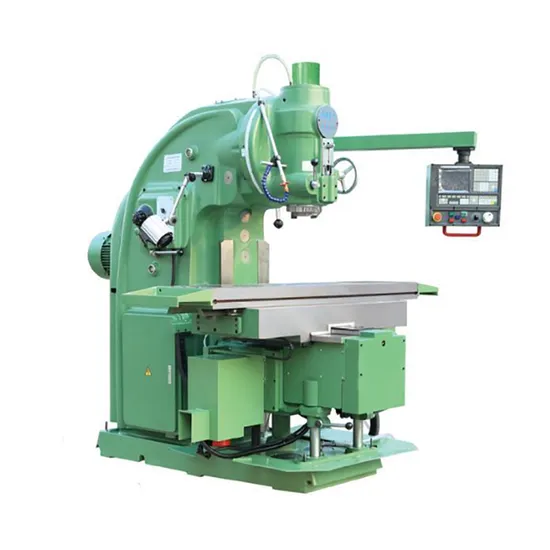

XK5032 is a vertical lifting table milling machine, the main motor 3KW can be increased to 4KW (all copper core motor) power foot, the spindle sleeve can be micro-adjusted downward movement, suitable for tools, molds, fixture processing and manufacturing.
XK5040 is a vertical three-coordinate CNC milling machine with lifting table, which can carry out three-axis linkage machining, and can realize any four-axis three-linkage after being equipped with CNC turntable (indexing head).
Standard equipment: SIEMENS808D
Optional equiment: The fourth axis CNC rotary table
CNC dividing head)
CNC system: FANUC,Mitsubishi. GSK980MDC Product Parameters
Specification | Units | XK5040 | XK5032 |
Table size | mm | 1700*400 | 1600*320 |
T slots ( N/W/D) | mm | 3/18/90 | 3/18/70 |
Longitudinal travel | mm | 1000 | 900 |
Cross travel | mm | 350 | 310 |
Vertical travel | mm | 375 | 350 |
Table longitudinal feed ( auto ) | mm/min | 6-3200 |
Table cross feed ( auto ) | mm/min | 6-3200 |
Table vertical feed ( auto ) | mm/min | 3-1600 |
Distance between spindle and table surface | mm | 90-465 | 35-385 |
Spindle hole taper | - | ISO 50(7:24) |
Spindle speed step | step | 18 |
Spindle speed range | r/min | 30-1500 |
Max. swivel angle of head | - | ±45° |
Stroke of spindle quill | mm | 85 | 70 |
Power of spindle motor | kw | 11 | 7.5 |
Torque of X / Y / Z axis AC servo motor | N.m | 15/15/23 | 10/10/18 |
Overall size | mm | 2760*2160*2250 | 2040*1800*1910 |
Net weight | kg | 4200 | 2900 |
Select Configuration
Pneumatic tool clamping
Matal protection
