CNC Connection Plate Punching Machine FINCM CNC Hydraulic Metal Sheet Drilling Punching(1500KN) Machine

CNC Connection Plate Punching Machine FINCM CNC Hydraulic Metal Sheet Drilling Punching(1500KN) Machine

US$46,000.00
1-2 Sets
US$45,000.00
3+ Sets

Basic Info.

Model NO.
PPHD153
Structure
Horizontal Drilling Machine
Layout
Horizontal
Controlling Mode
CNC
Number of Shaft
3
Hole Diameter
40mm
Automatic Grade
Automatic
Precision
Precision
Certification
GS, CE, ISO 9001
Condition
New
Max. Plate Size
1500mm*775mm
Thickness of olate
5-25mm
Max. Drilling Diameter
50mm
Max.Punching Diameter
26mm
Number of Die-Stations
4
Punching Force
1000kN
Marking Force
800kN
Characters Number
10
Feeding Speed of Drill
20-280mm
Power of Servo Motor
2*2kW
Stroke of Hydraulic Slide
50mm
Speeds of Drilling Spindle(Rpm)
0-2000r/Min
Air Pressure
0.5Mpa
Machine Weight
11500kG
Cooling Mode
Water-Cooling
Transport Package
Container
Specification
40GP
Trademark
FIN CNC
Origin
Shandong
HS Code
84592100
Production Capacity
350 Sets

Product Description

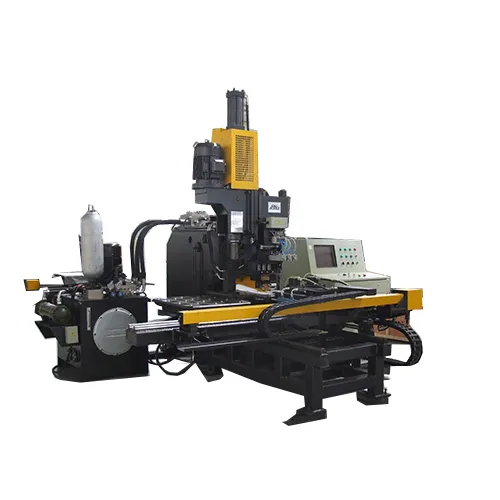

PPHD153 FINCM Automatic CNC Hydraulic Punching And Drilling Machine For Plate
Product Description
CNC hydraulic flat punching and drilling compound machine is mainly used for punching small and medium sized plates in steel structure, electric power and automobile industries.

Main Technical Specifications:
Parameter name Unit Value
Thickness Workpiece Size mm 5mm~25 mm
Max. size of workpiece mm 1800mm×800mm
Punch force KN 1500KN
Max size of drilling diameter mm ¢40mm
Max.size of punching diameter mm ¢30mm
Punching diameter &thickness mm σb≤420MPa:¢30×25mm
σb≤610MPa:¢26×20mm
Minimum hole margin mm 25mm
Spindle Drilling taper BT50
Drilling diameter mm φ13-φ40(Carbide drill)
Max. speed of spindle: r/min 3000r/min
Clamp cylinder Number piece 2
Quantity of CNC axes piece 3
Stroke of X ,Y,Z axis-speed m/min 0--18m/min
Motor power of oil pump KW 22KW
Motor power of spindle KW 15KW
AC servo motor power of X axis KW 3KW
AC servo motor power of Y axis KW 3KW
AC servo motor power of Z axis KW 2KW
Work-pressure of high-lift pump MPa 24MPa
Work-pressure of low-lift pump MPa 6MPa
Method of hydraulic cooling Water cooling
Method of Tools cooling trace Oil fog cooling system
Total power KW 26KW
Overall dimensions (L×W×H) mm About 3620×3720×2400mm
Net weight of the machine Kg About 11500Kg

Relateed Products
Company Profile
Shandong FIN CNC MACHINE CO., LTD. is always focusing on our ultimate goal - to secure and increase our customer's productivity - has made us the leader in China market in the manufacture of machines for processing angle bar, beam channel profiles, steel plates, tubesheet and flanges, mainly serving for fabricating iron towers, steel structure, heat exchangers, boilers, bridges, and trucks.Strong R & D center with 30 engineers team, 24 years of experience from year 1997, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine, about 40 million US dollars sales turnover per year.
FIN CNC machines' market share in China is around 70% and exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: CNC Angle Line, CNC Beam Drilling Sawing Machine, CNC Plate Drilling Machine, CNC Rail Processing Machine, CNC Tubesheet Flange Drilling Machine, Truck beam plate punching machine, etc..One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines' perfect quality and reliable performance.
The company drafted many China national standards for CNC angle line machine and CNC beam drilling sawing machine and CNC plate drilling machine.
Cooperative Supplier

Product Process Control

Customer Praise:

Sale Networks

Customer praise:
FAQ:
1. When can you arrange shipment?
For machines available in stock, the shipment can be arranged within 15 days after getting advance payment or L/C;
For machines non available in stock, the shipment can be arranged with 60 days after getting advance payment or L/C.
2. What can you do if my machines have problems?
1) We can send you free components if machines are in warranty period;
2) 24 hours service on line;
3) We can assign our engineers to serve you if you want.
3. Do you provide machine operation training?
Yes. We can send professional engineers to the working site for machine's installation, commissioning and operation training.
4. Which machine model shall I choose when I purchase from you?
Please share us your material size and your processing request, then we will recommend our machine most suitable and most cost effective for your work demand.
5. What's your machine's market share in China?
Our market share in China is about 70%+, and we've exported to 50+ countries across the globe market, since year 1998.
