Corrosion Resistance Plastic Rubber Lining Centrifuge Machine for Chemical Dye Industry

Product Description

Product Description Corrosion Resistance Plastic Rubber Lining Centrifuge Machine For Chemical Dye Industry

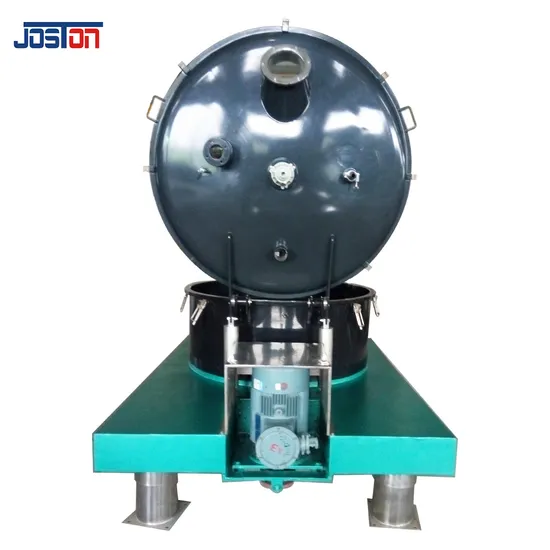

PS series centrifuge is a filter centrifuge operated intermittently by manual loading and unloading. This model has the advantages of simple structure, convenient operation, and strong adaptability. The filtering time can be flexibly controlled according to the material characteristics and separation requirements. The filter residue can be fully washed, and the solid particles are not easy to be damaged. It can be widely used in the chemical industry, light industry, pharmacy, food, textile, machinery, and other industries.
What is Halar coating? The most basic explanation for Halar is that it is a type of plastic. This particular type of plastic known as Halar is special because it is semi-crystalline and melt-processable. There are additional properties of Halar that make it desirable for use as an industrial coating. These properties include:
It has high impact strength. It is resistant to chemicals with a wide range of temperatures - specifically, -105 degrees Fahrenheit to 300 degrees Fahrenheit. It is resistant to corrosion, again with the same wide temperature range. It has high electrical resistivity, which means that it strongly opposes the flow of electric current. It has low dielectric constant. It has superior cryogenic properties, meaning that it can withstand extremely cold temperatures.

Type	Basket					Power (kw)	Weight (kg)	Overall size (L × W × H) (mm)
	Diameter (mm)	Volume (L)	Capacity (kg)	Speed (rpm)	G-force
PS300	300	5	10	2500	1050	1.1	180	890*600*500
PS450	450	20	25	1900	910	1.5	250	980*650*870
PS600	600	40	50	1500	756	3	800	1300*880*900
PS800	800	100	135	1200	645	5.5	1300	1800*1200*1140
PS1000	1000	150	200	1000	560	7.5	2000	2050*1500*1120
PS1200	1200	250	300	800	431	11	2500	2350*1650*1370

Detailed Photos
Drawing
1. vibration isolator 2. chassis base 3. rotor drum base 4. bearing 5. outer covering 6. upper cover of bearing 7. rotor drum tube 8. cover fastener 9. lip ring 10. cover 11. spindle nut 12. spindle 13. flame-proof lamp 14. passive wheel 15. balancer 16. electric motor 17. electric motor protection cover 18. the base of the electric motor 19. adjusting bolt 20. belt protection cover 21. active wheel 22. screw of ring 23. triangular belt 24. feeding pipe 25. sluicing pipe 26. discharge pipe 27. upper cover of the bearing 28. bearing 29. viewing mirror 30. bearing base Feature 1. Foundation installation exemption, simplifying installation process by ridding of the conventional 3-leg suspension structure; foundation platform is the working platform, convenient for operation and maintenance;
2. Reasonable structure design can effectively eliminate the sanitation dead corner with all the welding lines polished. The internal and external surface is all made of stainless steel and are polished and passivating treated by acid cleaning;
3. The outer cover is the wide-open flip cover (optional: partly open flip cover), easy for material feeding and perfect in air-tightness; the cover is equipped with a feeding inlet, sluicing pipe, explosion-proof light, viewing mirror, etc., for spot monitoring of the whole feeding, separation and laundry process.
4. The vibration isolator connected to the flat plate activates the total absorption of the energy resulting from the vibration of the centrifuge, incurring no shock disturbance to the foundation ground or nearby environment.
5. All the fastening pieces are made of stainless steel and sealed with silicon rubber. It can be fitted with a cleansing and sprinkling system, complying with GMP standards.
Application It is applicable to the filtrating of suspension-containing granules and also be used for the dehydration of fiber substances and especially applicable to the filtrating of materials of high viscosity and fine granules as well as toxic and flammable materials. It has found wide applications in such trades as chemical, pharmacy, food, light industry, etc. for example gypsum, thiamine, mirabilite, ferric sulfate, copper sulfate, nickel sulfate, potassium chloride, acetic acid, borax, soda, rubber additive, dye, plastic raw material, soap, grease, all kinds of resins, food salt, sodium glutamate, food additives, starch sugar-making, vitamins, antibiotics, herbicide, insecticide, the dehydration of such mineral fines as copper, zinc, aluminum, etc.
Rubber lining centrifuges are used for corrosive & acidic applications in industries such as chemical, dyes, pigment, pesticides, intermediates, and others.
