Hand Feeding Pet Bottle Blow Moulding Machine (ZQ-A600 Series)

Hand Feeding Pet Bottle Blow Moulding Machine (ZQ-A600 Series)

Negotiable 1 Set (MOQ)

Basic Info.

Model NO.
ZQ-A600 Series
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008
Number of Cavity
1 to 3 Cavities
Products Volume
600ml Pet Bottle
Products Output
1100-3300bph
Delivery Date
30 Days
Warranty
12 Months
After-Sales Service Provided
Engineers Available to Service Machinery Overseas
Machine Type
Economic
Transport Package
General Packing
Specification
CE & ISO 9001
Trademark
Ziqiang
Origin
HUANGYAN, CHINA
HS Code
8477300000
Production Capacity
30 pcs/month

Product Description

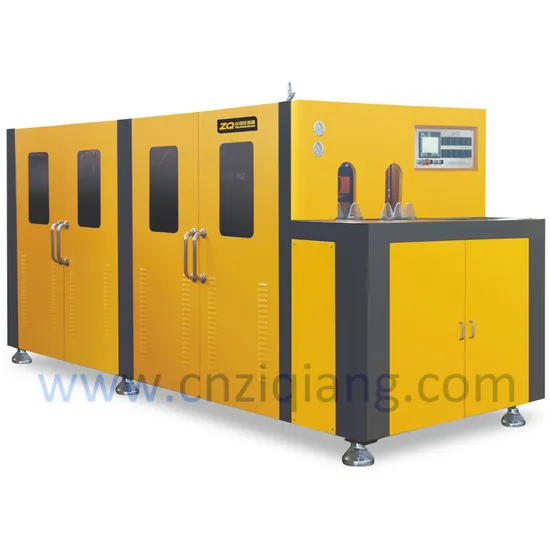

Hand Feeding PET Bottle Blow Moulding Machine
ZQ-A600 Series hand feed preform automatic blow molding machine
(ZQ-A600), newly developed by our company, is a two-step automatic blow-molding machine, which requires labor to put performs into the preheater only. ZQ-A series is of one cavity and the maximum cavity of the bottles is 0.6L, 2.0L, 5L. It can blow various bottles in shapes: Carbonated, mineral, pesticide, cosmetics, wide-mouth, hot filling, and other packing containers, which is made of plastic of crystalline type, such as PET, PP etc.
Compared with other full-automatic series, ZQ-A series has no automatic conveyer, so it can't transfer performs automatically, but requires labors to put performs into preheater. The distinctive feature of the ZQ-A is as follows: It has saved the cost to the maximum extent; It has lower rejection rate, higher production, and more stable performance than the semi-automatic one, and moreover, it is easy to run. Therefore, it will take the place of the semi-automatic blow-molding machine.
Hand Feeding PET Bottle Blow Moulding Machine,equipment information.
TYPE ITEM ZQ-A600-1 ZQ-A600-2 ZQ-A600-3
CONTAINER Number of cavity 1 2 3
Output 1100-1400 pcs/hr 1700-2300 pcs/hr 3000-3300 pcs/hr
Max.container volume 0.6L 0.6L 0.6L
Max.neck diameter 38mm 38mm 38mm
Max.container diameter 60mm 60mm 60mm
Max.container height 260mm 260mm 260mm
ELECTRICAL SYSTEM Number of lamp 14pcs 28pcs 32pcs
Max.heating power 9kw 22kw 32kw
Installation power 12kw 25kw 35kw
Actual power consumption 9kw 14kw 20kw
AIR SYSTEM Operatating pressure 7kg/cm² 7kg/cm² 7kg/cm²
Low pressure consuming 800Ltr/min 1000 Ltr/min 1200 Ltr/min
Blowing pressure ≤30kg/cm² ≤30kg/cm² ≤30kg/cm²
High pressure consuming 1200-1600Ltr/min 1500-2000Ltr/min 2000-2500Ltr/min
CHILLER WATER Operating pressure 5-6 kg/cm² 5-6 kg/cm² 5-6 kg/cm²
Temperatuer 10°C 10°C 10°C
Consuming 3600kcal/hr 5600kcal/hr 7600kcal/hr
Flow rater 20Ltr/min 30Ltr/min 40Ltr/min
MACHINE Machine dimension 2.5×1.4×1.7(m) 2.9×1.55×1.8(m) 3.4×1.4×1.8(m)
Machine weight 1.5T 1.6T 1.9T

Note: The specifications are subject to change without notice for the further improvement.
Note: Custom production accepted. Any client idea tried.
