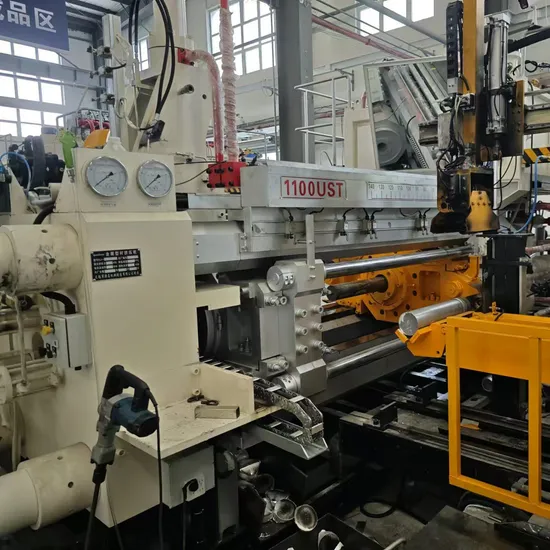

High Productivity Aluminium Extrusion Press Xj-1100ust
| US$80,000.00-180,000.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
XJ-1100UST
Power Source
Hydraulic Pressure
Feature
Automation
Certification
ISO9001, CE
Warranty
12 Months
Customized
Customized
Advantage
Work Flexible
Condition
New
Transport Package
Shipping Cargo
Specification
19.0mx10.0mx7.0m
Trademark
YC
Origin
China (Mainland) Jiangsu
HS Code
8462911000
Production Capacity
180set/Year
Product Description
| Selection Table | |||||
| Model | Pressure (MPa) | Billet Diameter (mm) | Billet Length (mm) | Total Power (KW) | Overall Size |
| Metric Tons(UST) | |||||
| XJ-630(690UST) | 21 | Φ80-Φ100 | 500 | 120 | 8.0×3.2×2.8 |
| XJ-800(880UST) | 21 | Φ100-Φ130 | 550 | 250 | 11.0×3.5×3.2 |
| XJ-1000(1100UST) | 21 | Φ110-Φ140 | 600 | 250 | 11.5×3.8×3.4 |
| XJ-1350(1500UST) | 25 | Φ120-Φ152 | 750 | 400 | 12.5×4.2×3.8 |
| XJ-1500(1650UST) | 25 | Φ127-Φ152 | 850 | 400 | 13.5×4.2×3.8 |
| XJ-1800(2000UST) | 28 | Φ152-Φ203 | 950 | 600 | 15.5×6.0×4.2 |
| XJ-2000(2200UST) | 28 | Φ178-Φ228 | 1000 | 600 | 16.0×6.5×4.5 |
| XJ-2200(2400UST) | 28 | Φ178-Φ228 | 1050 | 750 | 16.5×6.5×4.5 |
| XJ-2500(2750UST) | 28 | Φ203-Φ254 | 1050 | 750 | 18.0×7.5×5.5 |
| XJ-2750(3000UST) | 28 | Φ203-Φ254 | 1100 | 850 | 18.0×7.5×5.5 |
| XJ-3000(3300UST) | 28 | Φ228-Φ280 | 1150 | 1000 | 19.0×8.0×6.0 |
| XJ-3600(4000UST) | 28 | Φ254-Φ330 | 1200 | 1100 | 20.0×9.0×6.5 |
| XJ-4000(4400UST) | 28 | Φ280-Φ330 | 1300 | 1100 | 20.0×9.0×6.5 |
| XJ-4500(5000UST) | 28 | Φ280-Φ355 | 1300 | 1300 | 21.5×10.0×7.0 |
| XJ-5500(6000UST) | 28 | Φ305-Φ406 | 1500 | 1500 | 23.0×11.0×7.5 |
| XJ-7500(8200UST) | 28 | Φ355-Φ457 | 1700 | 1800 | 25.0×14.0×8.5 |
ps:The above data is for reference only, and adjustments may be made based on actual circumstances(Copper extruders also refer to the above table)
Company Profile
Wuxi Yuanchang Machinery Co.,Ltd is a professional enterprise specializing in the manufacturing of complete sets of equipment for non-ferrous metal extrusion machines.With years of manufacturing experience and technological accumulation,our company is committed to providing high-quality and reliable extrusion equipment and solutions for the global non-ferrous metal extrusion industry.
Details of product
Our honor
CNC machining center
Our clients vist
Delivery site
