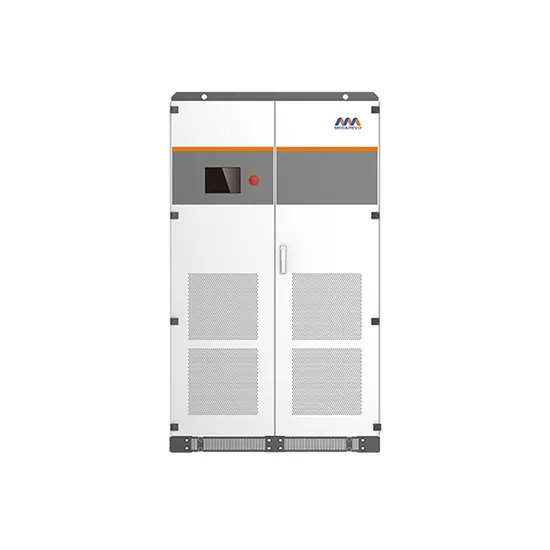

Convenient Operation and Maintenance Megarevo Mega00150ts PCS 150kw Three-Phase Energy Storage Converter
Basic Info.
Model NO.
MEGA00150TS
Output Power
150kw
Grid Type
off-Grid Inverter
Output Type
Triple
Circuit Topologies
Full-Bridge Type
Nature of Wave String
Sine Wave Inverter
Type
DC/AC Inverters
Communication Interface
Can
Protection Class
IP21
Display
LCD Touch-Screen
on/ off Grid Switching
Automatic
Cooling
Forced Air
Operating Temperature (ºC)
-30 ~ 55
Product Name
Power Conversion System PCS
Isolation Method
Transformer
Transport Package
Wooden Package
Specification
800X800X1900mm
Trademark
Megarevo
Origin
Henan, China
Production Capacity
1000 Piece/Pieces Per Month
Packaging & Delivery
Package Size
90.00cm * 90.00cm * 200.00cm
Package Gross Weight
1060.000kg
Product Description
Product Description Convenient operation and maintenance Megarevo MEGA00150TS PCS 150kw Three-Phase Energy Storage ConverterProduct Parameters
| Model | MEGA0030TS | MEGA0050TS | MEGA0100TS | MEGA0150TS | MEGA0250TS | MEGA0500TS |
| DC(battery) | ||||||
| Voltage range (V) | 250~850 | 320~850 | 420~850 | 420~850 | 420~850 | 500~850 |
| Max. Current (A) | 137 | 178 | 270 | 405 | 673 | 1,128 |
| AC(on-grid) | ||||||
| Max output power(kVA) | 33 | 55 | 110 | 165 | 275 | 550 |
| Rate output power(kW) | 30 | 50 | 100 | 150 | 250 | 500 |
| Rated voltage(V) | 400 | |||||
| Voltage range(V) | 320~460 | |||||
| Rated current(A) | 43 | 72 | 144 | 216 | 361 | 722 |
| Max. output current(A) | 48 | 80 | 59 | 238 | 397 | 794 |
| Rated frequency (Hz) | 50/60 | |||||
| AC connection | 3W+N+PE | |||||
| AC(off-grid) | ||||||
| Rated voltage (V) | 400 | |||||
| THDu | <1% Linear <5% Nonlinear | |||||
| Rated frequency (Hz) | 50/60 | |||||
| Overload capacity | 110%long-term | |||||
| General data | ||||||
| Max.efficiency | 96.3% | 96.5% | 97.1% | 97.1% | 97.3% | 97.5% |
| Ingress protection | IP21 | |||||
| Noise emission (dB) | <70 | |||||
| Cooling | Forced air | |||||
| Dimension W*D*H (mm) | 800*800*1,900 | 800*800*1,900 | 800*800*1,900 | 800*800*1,900 | 1,200*800*2,050 | 1,600*1,050*2,050 |
| Net Weight(kg) | 621 | 712 | 936 | 1,057 | 1,582 | 2,665 |
| Transformer ratio | 100/400 | 200/400 | 270/400 | 270/400 | 270/400 | 315/400 |
| Self-consumption (W) | <100 | <208 | ||||
| On/ Off grid switching | Automatic | |||||
| Display and communication | ||||||
| Display | LCD touch-screen | |||||
| BMS communication | RS485, CAN | |||||
| EMS communication | RS485, TCP/IP | |||||
| Certificates | IEC/EN62109-1/-2, IEC/EN 62477-1 , IEC/EN 61000-6-2, IEC/EN 61000-6-4, CGC | |||||
