Tant Hbts40 High Quality Concrete Pump by Professional Manufacturer

Product Description

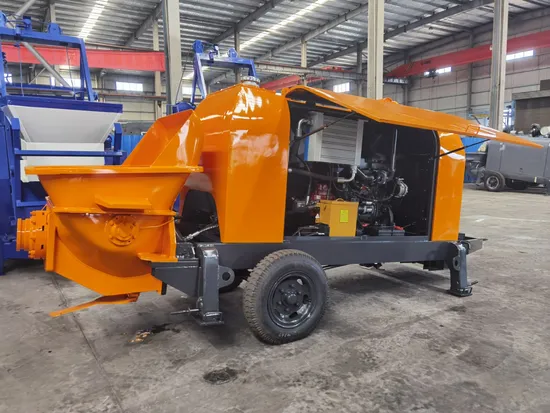

Trailer Mounted Concrete Pump Professional manufacturer in Changsha, Hunan
20 years+ Production & Export Experience
Solid technical foundation and independent innovation to ensure product quality
Well-know brand components from Germany, Italy, Japan, France etc. strive for the best combination of mechanical parts
Concrete pumping capacity 20, 30, 40, 50, 60, 80, 90
Electric Motor series & Diesel Engine series

Technical parameters
Electric Motor series

Parameter	Unit	HBTS30.06.45E	HBTS50.10.75E	HBTS60.13.90E	HBTS80.16.110E	HBTS90.18.132E
Max.Theor.Concrete Output	m3/h	30	50	60	80	90
Pumping Pressure	Mpa	6	10	13	16	18
Form of Distribution Valve		S valve	S valve	S valve	S valve	S valve
Concrete Cylinder Size	mm	160x1000	200x1400	200x1600	200x1800	200x1800
Hopper Capacity	L	350	700	700	700	700
Hopper Height	mm	1000	1450	1450	1450	1450
Practical Pumping Distance (Vertical/ Horizontal)	m	30/100	80/350	100/700	140/800	180/1200
Max. Aggregate Size	mm	30	40	40	40	40
Motor Power	kw	45	75	90	110	132
Overall Dimension (LxWxH)	m	4800x1500x1700	5320x2160x2010	5800x2160x2200	5800x2160x2200	5800x2160x2200
Total Weight	kgs	2600	4800	6480	6480	6480

Diesel Engine series

Parameter	Unit	HBTS20.06.38R	HBTS30.06.52R	HBTS40.08.72R	HBTS50.10.85R	HBTS60.13.130R	HBTS80.16.176R	HBTS90.18.186R
Max.Theor.Concrete Output	m3/h	20	30	40	50	60	80	90
Pumping Pressure	Mpa	6	6	8	10	13	16	18
Form of Distribution Valve		S valve	S valve	S valve	S valve	S valve	S valve	S valve
Hopper Capacity	L	350	350	700	700	700	700	700
Hopper Height	mm	1000	1000	1450	1450	1450	1450	1450
Practical Pumping Distance (Vertical/ Horizontal)	m	30/100	35/150	50/200	60/260	120/700	150/800	180/1200
Max. Aggregate Size	mm	30	30	40	40	40	40	40
Engine Brand		Dongfanghong	Dongfanghong	Weichai	Weichai	Weichai	Weichai	Weichai
Engine Power	kw	38	52	72	85	130	176	186Eur.III
Overall Dimension (LxWxH)	mm	3200x1500x1500	4800x1500x1700	4800x1500x1700	4800x1500x2200	5800x2160x2200	5800x2160x2200	5800x2160x2200
Total Weight	kgs	2200	2600	3500	3500	6480	6580	6680

Package

Construction case
FAQ
1.Q:Are you factory or trading company?
A: We are factory in Changsha, Hunan.
2.Q: What is your main oil pump brand?
A: Germany Rexroth or Korea Kawasaki.
3.Q: The motor power is the electrical or diesel?
A: Both type. The power of electric type apply to 380V 50Hz.
4.Q: How about guarantee period?
A: 1 year for structure parts. We strictly follow the warranty terms.
5.Q: What is the payment terms?
A: 30% advance payment and the rest should be paid before delivery by T/T or by L/C.
6.Q: Maintenance and After-sales service?
A: We provide video technical support, and we can send technicians to your country if necessary. We have local after service team in some areas.
