Sanding Polishing Grinding Machines Sander for Paricleboard Chipboard OSB MDF HDF

Product Description

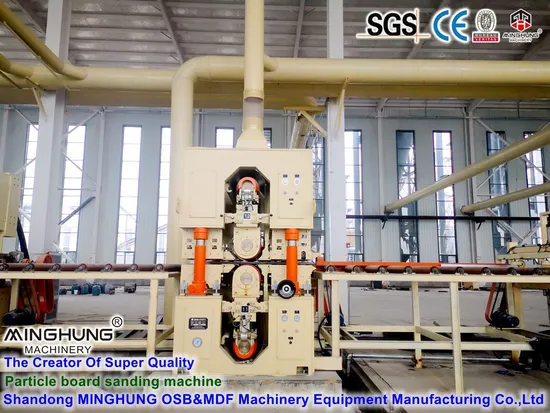

Sanding Polishing Grinding Machines Sander for Paricleboard Chipboard OSB MDF HDF

01 PRODUCT DESCRIPTION
INTRODUTION&STRUCTURE: This is double sides sanding machine with two sanding heads, for making particle board, osb board, and mdf board. Usually the sanding machine will not be one set, and each set has different function, some sanding machine for rough sanding, some for fine sanding, so usually you need the full sanding line, to make your wood based panel board good quality.
TYPES FOR CHOOSE: Sanding machine can be different specification, it can be double sides, also can be single side; it can be different sanding heads.

02 PRODUCT FEATURES 1. Multi-stage Sanding System: Sanding machines typically feature multiple sanding heads or sanding belts, allowing for progressive sanding from coarse to fine, ensuring the board surface is even and smooth.
2. Variable Frequency Drive Technology: Variable frequency drives control the motor speed of the sanding machine, making the sanding belt speed adjustable to suit different materials and sanding requirements.
3.Numerical Control Technology: Modern sanding machines are equipped with numerical control systems that precisely control sanding parameters such as belt speed, sanding pressure, and feed speed.
4. Tensioning and Tracking Systems: The belt tensioning system ensures the sanding belt maintains proper tension during operation, preventing slipping or breakage.
5. Automatic Thickness Measurement and Adjustment: Equipped with thickness measurement sensors, these machines detect the board thickness in real time and automatically adjust the sanding head position to ensure uniform thickness after sanding.
6. Automatic Loading and Unloading System: Automated loading and unloading systems reduce manual handling, increasing production efficiency.
03 PRODUCT PARAMETERS

Sanding width	1300mm
Thickness	3-50mm
Max infeeding speed	90m/min
Line speed	33m/s
Mainly motor	90kw*2pcs
Dust collector	16000m3/h

04 DETAILED PICTURES
05 FULL LINE MACHINES

Step1: Drum Chipper for crushing wood and barks and trunks into the certain size chips.	Step2: Vibrating Screen for screening big wood strands, suitable strans, and chips.

Step3: Drum Dryer for drying the wet wood strands.	Step4: Gluing Machine for make glue on wood strands and evenly distributed.

Step5: Forming Line for uniform distribution of the flakes both lengthwise and crosswise as well as the layer formation of top and middle layer flakes over the cross section of the panel.	Step6: Continuous Press Machine for pre press particleboard, and make it a certain initial strength.

Step7: Hot Press Machine for pressing woos based board in a high pressure and heating temperature.	Step8: Edge Saw Machine for cutting the board into the required sizes and specifications, usually with both cross-cutting and longitudinal cutting methods.

06 COMPANY PROFILE
We are China factory/manufacturer/supplier of the full line of Particle board making machine, OSB board making machine, and MDF board making machine.
With many years production experience, and keep continuous to improve our machine, now we can say that our machine has been mature, good and strong, which will help you produce good wood based panel.
The whole particle board production line includes many different machine from the beginning to the end, like the wood chipper, flaker, glue machine, dryer, screen, forming machine, pre press, hot press, cutting machine, sanding machine and so on. We can offer you the whole necessary machinery.
We have our professional engineers and technicians, who can design all machine very well and produce it. And we have the professional and fast sales team and after sales team, to offer good service for you.
07 LOADING PICTURES
