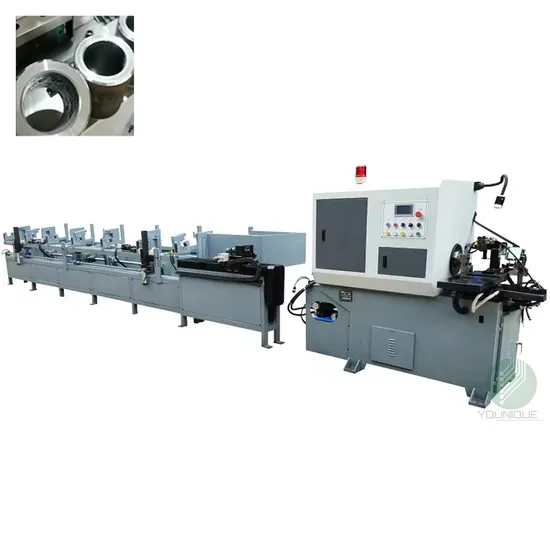

Ye-120 Thickness 2-20mm High Speed Rotary Hydraulic CNC Automatic Cold Cutter Round Metal Special Copper Pipe and Tube Stainless Steel Cutting Machine Price

Product Description

Product Description Pipe cutting machine parameters and configuration
YE-120(High precision servo positioning pipe cutting machine)

Cutting diameter range	50--116mm
Processing length	200mm
Maximum spindle speed	560RPM
Axial feed velocity	0~6m/min
Radial feed velocity	0~12m/min
Main motor power	5.5kw
Hydraulic pressure	3map
Overall dimensions	1800*1200*1600mm
Machine weight	1800

Main uses and characteristics of machine tools:
1,This machine is suitable for cutting all kinds of pipe materials, especially for mass production of bearing enterprises. The machine adopts PLC control, advanced servo system positioning and cutting, one feeding multiple cutting, with high precision and high efficiency. The detection of each cutting workpiece of the machine tool makes up for the shortage of the feeding of oil, rust and bending materials in the previous machine tool and the disadvantage of rebound after feeding, so as to eliminate the occurrence of waste products.
2,The machine has broken blade and no material alarm.
3,The machine adopts cross roller quenched guide rail, which has the characteristics of good rigidity, small rolling friction and long life.
4,Vertical and horizontal servo system control.

No.	key component	Specifications	Qty.	Power	Brand
1	Main motor	Level 3	1 set	5.5KW	Zhejiang mingsu motor
2	Electric system	ECM series AC servo	2 set	750kW/750W	Taiwang taida
3	Display touch screen	TPO49-BL-CU	1 set		Taiwang taida
4	PLC	DVP4ES2/40	1 set		Taiwang taida
5	Lead screw/feed	20-5	2 pcs		TBI
6	Guide rail	Cylindrical ball guide	2 set		TBI
7	Hydraulic pressure station		1 set
8	Bearing	32034 32936	2 pcs		Haerbin
