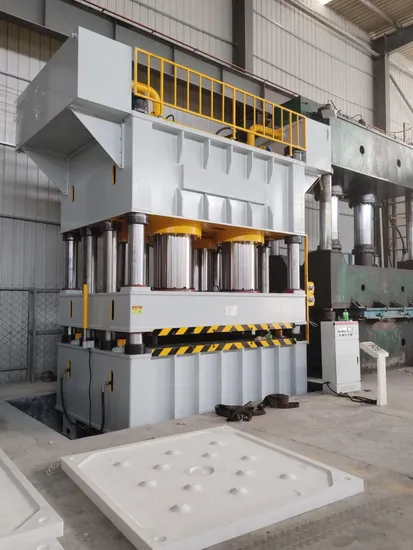

3000 Ton Hydraulic Press for Pressing and Forming Metal Door Panel Pattern

3000 Ton Hydraulic Press for Pressing and Forming Metal Door Panel Pattern

US$80,000.00-120,000.00 1 SETS (MOQ)

Basic Info.

Condition
New
Customized
Customized
Automatic Grade
Automatic
Structure
Vertical
Name
Hydraulic Press
Usage
Chamber Plate
Size
470mm to 2000mm Chamber Plate
Transport Package
Truck or Shipping
Trademark
BOYAN
Origin
China
HS Code
84122990
Production Capacity
1000 Sets Per Years

Product Description

Polypropylene Chamber filter press plate hydraulic press 1500T 2000T 2500T 3000T composite 6 columns and 4 cylinders
Hydraulic press is suitable for pressing of materials of plasticity, such as punching, bending, flanging thin stretch also can perform calibration, pressure equipment, plastic products and powder products of pressure molding. This series of hydraulic presses are suitable for various stamping processes, such as stretching, bending, forming, blanking and flanging, especially suitable for the following fields (1)Auto parts, body covers, brake pads, fuel tanks, chassis, axle housings, bumpers (2)Household appliances such as washing machines, televisions, refrigerators, etc. (3)Washing tanks, pots, stainless steel kitchen utensils and various other containers
Specification Unit 2000T 3000T 4500T 6000T 8000T 10000T
Nominal force KN 20000 30000 45000 60000 80000 100000
Ejecting force KN 1260 1260 1260 2000 2000 3200
Max. pressure of liquid MPa 25 25 25 25 25 25
Stroke of slider mm 400 400 400 400 400 400
Max. opening height mm 500 500 500 500 500 500
Working table size mm*mm 1500x2500 1500X2500 1580x2550 2200x3500 2400x4200 2500x4500
Ejecting stroke mm 450 450 450 450 450 450
Speed of slider Idle speed mm/s 120 150 150 150 150 150
Working speed mm/s 5-10 5-10 5-10 5-10 5-10 5-10
Return speed mm/s 80 80 80 80 80 80
Press plate thickness mm 0.8 1.2 1.5 1.8 2 2

1. Hydraulic power part, manual and electric 2. Mechanical control part; 3. Working cylinder part; 4. Hydraulic power part; By hydraulic oil pump. The motor is connected to the plunger pump with an elastic coupling 5. Mechanical control part; It is controlled by distribution box and combination button switch 6. Tubing part: connected by high pressure seamless steel tube
