Good Price Simple Hydraulic Jacking System/Cheap Grain Silo and Enamel Storage Tank Hydraulic Jacks in Stock/Piston Type Tank Hydraulic Jack/Synchronous Lifter

Product Description

Suitable for all kinds of large storage tanks (steel) and flat bottom corrugated board granary, enamel tank inverted installation construction.
Product Advantages
With sleeve process design, the shape is smaller, the weight is lighter, the miniaturization is easier to install and transport, and the application rate is high.
Reference Parameter

Hydraulic Jacks
Rated lifting weight	50KN
System pressure	16MPa
Hydraulic travel stroke	0.8m
Size of oil inlet and outlet	M18*1.5
Lifting height	2.3m
Hydraulic operating mode	Double-acting
Lifting mode	Rectangular steel frame
Lock mode	Hydraulic lock and Pin lock
Fixture type	Triangular bracket base, self-tapping fixed
Size	800*620*1180 mm
Weight	60 kg
Basic height of hydraulic jacks	1180 mm

Hydraulic Cylinder
Max working pressure	16 MPa
System pressure	380 V
System flow	38 L/min
Individual maximum displacement	5 L/min
Tank capacity	300 L
Motor speed	1470 r/min
Control voltage	DC 220 V
System temperature	20-60ºC
Size	2500*2000*1500 mm

Prodcut Features 1, This set of equipment is mainly composed of hydraulic jacking pump station, hydraulic cylinder, rectangular steel frame, etc., easy to install.
2, The equipment adopts PLC program to control jacking, which has the advantages of simple operation, high jacking synchronization precision and stable jacking process.
3, Hydraulic jacking pump station has two modes of manual and centralized control, hydraulic cylinder can be single or local (several) to adjust (fine tune) lift and fall; Multiple groups can be centrally controlled up and down; The jacking height can precisely control the butt adjustment of the tank wall welds.
4, Each hydraulic cylinder has a safety valve self-locking, equipment operation will not cause the tank or heavy objects to slide or fall due to power failure, the blasting of a high-pressure hose or the failure of a hydraulic cylinder, hydraulic jacking process is safe and reliable.
5, The plunger type hydraulic jacking system has no side force in the jacking process and has no influence on the tank wall.
6, The stroke of the hydraulic cylinder is 800 mm, which can meet the one-time jacking completion of the width of the wall panel below 2300 mm, reducing the jacking time, Save labor and other auxiliary costs.
7, The overall base length of the equipment is only 1180 mm, which can fully meet the inverted construction and installation process of large storage tanks, granaries and enamel tanks.
Installation Procedure
1, Install the first layer of tank wallboard/ corrugated plate
2, Install the granary vault
A. Install the central independent vault support fixture to ensure effective connection between vault and tank wall.
B. The top installation of the granary is divided into two parts: the first and second layer corrugated plate installation and the top installation of the granary.
Connection of hydraulic jacks to tank wall panel

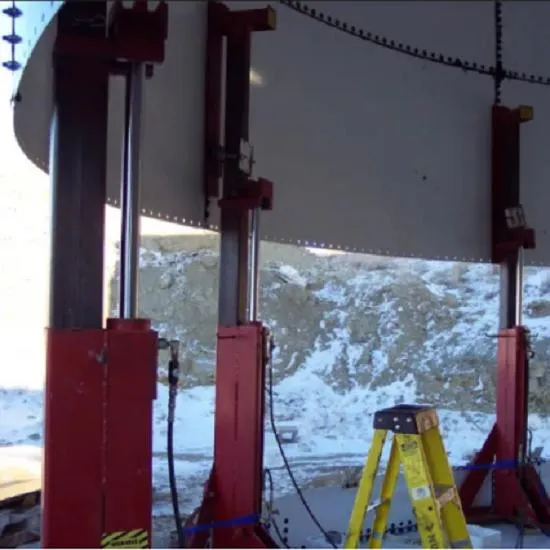

Hydraulic jacks lift condition
Company Introduction
Wincoo Engineering Co.,ltd is a hydraulic machinery manufacturing company integrated with design, development, production and sales, which mainly manufactures LYT-type chain-type hydraulic hoist, SQD unfixing holding-latch hydraulic hoist and supporting products. Such products are mainly used for inverted lifting and installation of steel storage tanks. Founded in 2003, after years of concentrated scientific research and development, the company obtained the patent certificate of "Utility Model Hydraulic Hoist' issued by "China National Intellectual Property Administration", and the right to use the trademark of "WINCOO" in 2008, so as to enable products of Wincoo Engineering Co.,ltd to quickly become Chinese brands.
Since entering Chinese market for more than 10 years, products of Wincoo Engineering Co.,ltd has been sold in nearly thirty provinces, cities and autonomous regions in China, and some overseas markets. The company has production line of advanced technology; meanwhile, Wincoo Engineering Co.,ltd designs, develops and processes products for famous domestic installation companies. With professional team, strict management and excellent equipment, the company strives to create the brand of "WINCOO",hydraulic hoist and series supporting products. As an expert of hydraulic hoist, WINCOO with charm of high technology is keen,innovative and forging ahead to establish design language of the company. In an all-inclusive and absorbing and open-minded manner, the hydraulic hoist and hydraulic pump station are perfectly combined to form hydraulic lifting equipment (hydraulic jacking equipment). As the founder and disseminator of hydraulic hoist, WINCOO has been building the inverted hydraulic lifting equipment and production technology of Dongfang installation engineering for a long time.
Wincoo Engineering Co.,ltd is committed to the research and development of LYT-type chain-type hydraulic hoist, SQD-type unfixing holding-latch hydraulic hoist and the supporting equipment. The LYT-type and SQD-series products have been widely used in various projects (inverted lifting, translation, jacking, and climbing, etc.) by major installation companies all over the country, and have achieved satisfactory results.
WINCOO sticks to improve core competitiveness by virtue of corporate culture, thus setting a good social image of the company during development. "Those hoping to expand the company must study hard from the moment, and the pursuit is endless". "WINCOO" will continuously forge ahead, contributes to the course of installation project in China and permanently moves forward to forge the monument of hydraulic lifting industry in China.
What we can bring to you?
1. Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the constrcution time.
2. We can provide all technical documents and advices to support you for construction procedure clearifications
3. We can calculate the most suitable number of hydraulic jack according to the weight of the tank
4. We can provide your suitable hydraulic jack accessories with much more competetive price from our long time business partner if you need.
5. We can provide site people training service, and operation service or manpower service or as a subcontractor
