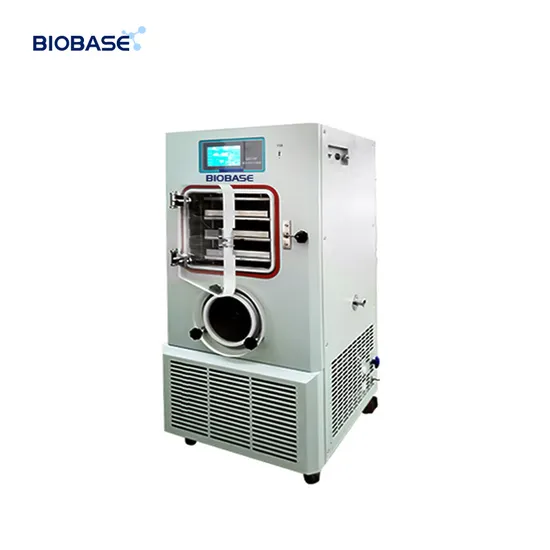

Biobase Large Capacity Pilot Standard Vacuum Freezer Dryer Bk-Fd20s for Lab
| US$4,400.00-8,900.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
BK-FD20S
Type
Freeze Drying Equipment
Fuel
Gas
Operating Pressure
Vacuum
Roller Number
Single Drum
Cloth Membrane Forms
Immersion
Fluid Bed Drying Equipment Type
Horizontal Fluid Bed
Vacuum Drying Equipment Type
Continuous Vacuum
Condition
New
Model
Bk-Fd20s
Freeze Drying Area
0.3m²
Shelf Temperature
-50ºC~+70ºC(No-Loading)
Cold Trap Temperature
<-80ºC(No-Loading)
Vacuum Degree
≤1PA(No-Loading)
Water Capture Capacity
≥6
Cold Trap Volume
14L
Cold Trap Size(Diameter*H)
Φ200*460mm
Drying Chamber Size(W*D*H)
330*325*470mm
Shelf&Tray Size(W*D*H)
Shelf: 400*270*18mm Tray: 395*265*25mm
Qty. of Shelf&Tray
Shelf: 3+1; Tray: 3
Sample Loading Capacity(Liquid)
3L
Height Between Trays
70mm
Tray Temperature Difference
±1ºC
Refrigerant
R404A+R23
Transport Package
Carton Packaging/Plywood Packaging/Wood Packaging
Specification
1150*900*1780
Trademark
BIOBASE
Origin
China
Production Capacity
10000 Units/Year
Product Description
Product DescriptionIntroduction: Biobase vacuum freeze dryer(square cabinet) is suitable for laboratory samples of freeze drying test, and a small amount of production.
Product Parameters
| Model | BK-FD20S(Standard) | BK-FD20T(Stoppering) | BK-FD30S(Standard) | BK-FD30T(Stoppering) | |
| Freeze Drying Area | 0.3m² | 0.2m² | 0.4m² | 0.3m² | |
| Shelf Temperature | -50ºC~+70ºC(no-loading) | ||||
| Cold Trap Temperature | <-80ºC(no-loading) | ||||
| Vacuum Degree | ≤1Pa(no-loading) | ||||
| Water Capture Capacity | ≥6 | ≥8 | |||
| Cold Trap Volume | 14L | / | 26L | ||
| Cold Trap Size(Diameter*H) | Φ200*460mm | / | Φ320*520mm | ||
| Drying Chamber Size(W*D*H) | 330*325*470mm | 340*500*420mm | 480*380*540mm | ||
| Shelf&Tray Size(W*D*H) | Shelf: 400*270*18mm Tray: 395*265*25mm | Shelf: 300*340*18mm Tray: 295*335*25mm | |||
| Qty. of Shelf&Tray | Shelf: 3+1; Tray: 3 | Shelf: 2+1; Tray: 2 | Shelf: 4+1; Tray: 4 | Shelf: 3+1; Tray: 3 | |
| Sample Loading Capacity(Liquid) | 3L | 2L | 4L | 3L | |
| Height Between Trays | 70mm | 100mm | 50mm | 70mm | |
| Tray Temperature Difference | ±1ºC | ||||
| Refrigerant | R404A+R23 | ||||
| Condenser Cooling Mode | Air cooling | ||||
| Defrost Mode | Electric defrosting | Natural defrosting(optional electric defrosting) | Electric defrosting | ||
| Stoppering Mode | / | Automatic | / | Automatic | |
| Total Qty. of Vial | Φ22mm | / | 440 | / | 654 |
| Φ16mm | / | 868 | / | 1200 | |
| Φ12mm | / | 1554 | / | 2187 | |
| Vacuum Pump | 4L/S(14.4m³/h) | 6L/S(22m³/h) | |||
| Electric Defrosting Consumption | 800W | 800W | / | 1000W | |
| Silicone Oil Heating Rods Consumption | 800W | 800W | 1000W | 1000W | |
| Hydraulic Pressure Station Consumption | / | 500W | / | 1000W | |
| Total Consumption | 3KW | 4KW | 4.5KW | 5.5KW | |
| Power Supply | AC220V, 50Hz/60Hz(single phase) | ||||
| Main Body Weight | 300kg | 400kg | |||
| External Size(W*D*H) | 1033*781*1580mm | 928*825*1366mm | 1272*853*1679mm | ||
| Packing Size(W*D*H)/ Gross Weight | Main Body | 1150*900*1780mm/400kg | 1150*900*1905mm/400kg | 1050*945*1570mm/450kg | 1392*995*1880mm/651kg |
| Vacuum Pump | 950*420*500mm(37kg) | 790*340*460mm(57kg) | 790*300*470(52kg) | ||
