Cowater 10 M3/H Indoor Fish Farm Aquaculture Equipment Compact Ras System for Recirculating Aquaculture System

Product Description

Product Description

Model	Water flow:	Grouper Yearly Output:	Size:	Power:
CW-RAS-10	10 m3/h	1000~1600 Kg/Once	2300*1150*2380mm	1630W
CW-RAS-20	20 m3/h	1600~3200 Kg/Once	2600*1500*2780mm	1730W
CW-RAS-30	30 m3/h	3200~4800 Kg/Once	3100*1800*2870mm	1850W
CW-RAS-60	60 m3/h	8000~9600 Kg/Once	5600*2000*2650mm	3500W
CW-RAS-100	100 m3/h	13000~16000 Kg/Once	5200*1700*2650mm*2	4100W
CW-RAS-150	150 m3/h	20000~24000 Kg/Once	5000*2000*2650mm*2	4800W
CW-RAS-200	200 m3/h	30000~32000 Kg/Once	Customized	5200W

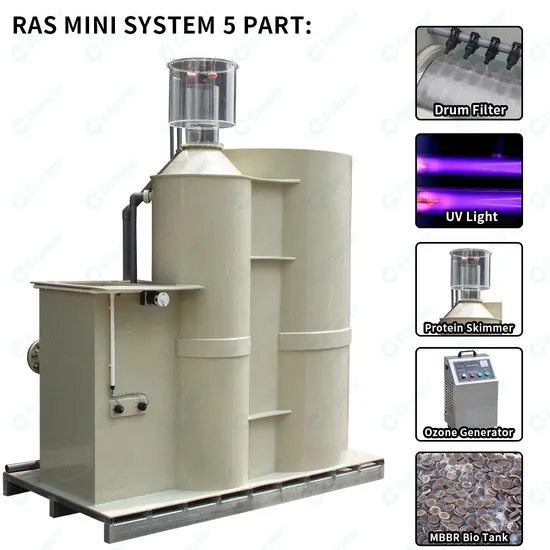

Plug & Play RAS filtration system including foam separation (protein separator), biofiltration, mechanical filtration, UV disinfection, ozone treatment. All-in-one complete RAS solution with minimum footprint and energy consumption. Suitable for livestock water tanks from 5 cubic metres to 100 cubic metres.Compact RAS Units are designed to provide biological, mechanical, chemical, and disinfection filtration in the smallest footprint than any other alternative filtration. The Compact RAS System is the symbiosis of all our experience in the area of mechanical and biological filtration, resulting in a "Turn key" solution: you just connect the in- and outlets to your pipeworks and connect the power plug. The system is based on the principle of a "recircualting aquaculture system" using the new k5 biocarrier that is brought into movement using integrated aeration. The system is fully equipped including drum filter, protein skimmer, ozone generator,moving bed biofilm reactor, uv sterilization light, air pump and integrated high pressure pump (for the RDF cleaning), all contained in a secured and dry chamber. Equipped with: high performance in-built protein fractionator/skimmer and automatic sludge cleaning system, Rotary drum filter, Moving bed bioreactor, K5 filter media, UV sterilisation system, Ozone generator system, Water level sensors, Push-button consoles for basic functions, Venturi pumps, feed pumps, IP64 electronic control box and 316 steel bolts and nuts.
