Antenna Coaxial Cable Rg Series RG6 Rg11 Rg59 Rg58 RF Cable Bc CCS 75ohm 50ohm CCTV CATV Cable

Product Description

Product Description

China Selling High Quality Low Price Rg58 Coaxial Cable
1) Inner conductor: CCS, TC or BC available
2) Dielectric: Solid PE or Formed PE available
3) Shiled: AL foil, Bonded AL foil, AL/PET/AL foil
4) Braiding material: AL, BC or TC available
5) Braiding coverage: 30 - 97% available
6) Shield: Standard, tri-shield or quad-shield structure available
7) Jacket: PVC jacket, PE jacket, LSZH jacket available
8) Messenger: 1.83mm/2.77mm steel avaliable
9) Jelly: Available
10) OEM and customer's designation are acceptable
Explanation of abbreviations:
1) CCS = copper clad steel
2) BC = bare copper
3) TC = tinned copper
4) 90 = 90% coverage
5) M = messenger
Delivery Details: 15days
Payment terms: T/T, L/C
Packing:
1) Packing lengths: 100m/roll, 200m/roll, 305m/roll, 100 yards/roll, 200 yards/roll, 300yard/roll
2) Inner packing: Wooden drum, plastic drum, paper drum
3) Outer packing: Carton box, pull out box
4) Other packing available according to client's request
Remarks:
1. Fast delivery
2. High quality
3. Professional manufacture of communication cable
Product Parameters

1. Specification Basic Construction

		RG58/U	RG58 A/U	RG58 C/U
Conductor	Material	BC/TC	BC/TC	BC/TC
	Nom.Dia.	19awg	19*0.2mm	19*0.18mm
Dielectric	Material	PE	Foam PE	PE
	Nom.Dia.	2.95mm	2.90mm	2.95mm
Shield	Material	BC/TC Braiding	BC/TC Braiding	BC/TC Braiding
	Coverage	95%	95%	95%
Jacket	Material	PVC/PE	PVC/PE	PVC/PE
	Nom.Thick.	0.80mm	0.80mm	0.80mm
	Nom.Dia.	4.95mm	4.90mm	5.08mm

2. Characteristics
Basic Characteristics

Nominal Impedance(Ohm)		50±2
Nominal Velocity Of Propagation(%)		87
Nominal Capacitance(Pf/m)		55±3.0
Sparker Test(Vac)		2500
Srl(Db)	30-470	≥20
	470-1000	≥18
Attenuation [68°f(20ºC)]	Frequency(Mhz)	Maximum(Db/100ft)	Maximum(Db/100m)
	50	3.90	12.80
	100	5.05	16.57
	200	8.20	26.90
	400	9.60	31.50
	500	119.0	39.04
	700	17.00	55.77
	900	18.00	59.02
	1000	19.80	64.96

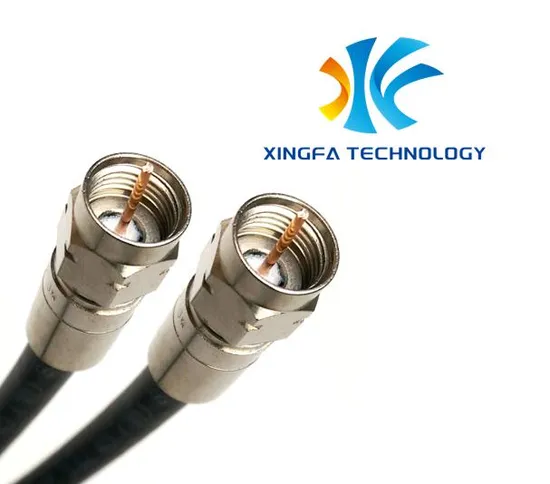

3. Product pictures

4. Raw materials

5. Packing details
1) Packing Lengths:100/roll,200m/roll,300m/roll,305m/roll, 500m woden reel, 1000m wooden reel
2) Inner Packing:Wooden reel,plastic reel,and paper reel
3) Outer Packing:Carton box,pull out box,pallet available
4) Other packing available according to clients' request
5. Exhibition
6. Our company




FAQ
What kind of cable do you produce?

We specialize in producing coaxial cable, telephone cable, speaker cable and so on.

What is your MOQ?

Usually, the MOQ is 10km.

What is your delivery time?

Usually, our delivery time is 15 days after received deposit. It is base on the quantity of the order.

What is your payment term?

Usually, we accept T/T.Other payment, we can negotiate with customers.

What is your manner of packing?

Inner Packing:
100m/roll, 200m/roll, 300m/roll, 100yards/roll; 200yards/roll; 300yards/roll
305m (1,000ft) wooden reel, wooden drum, plastic drum
Outer Packing:
Wooden drum, carton box, pull out box
Or according to client's request.

Can you customize cables basing on customer's sample?

Yes, of course.
