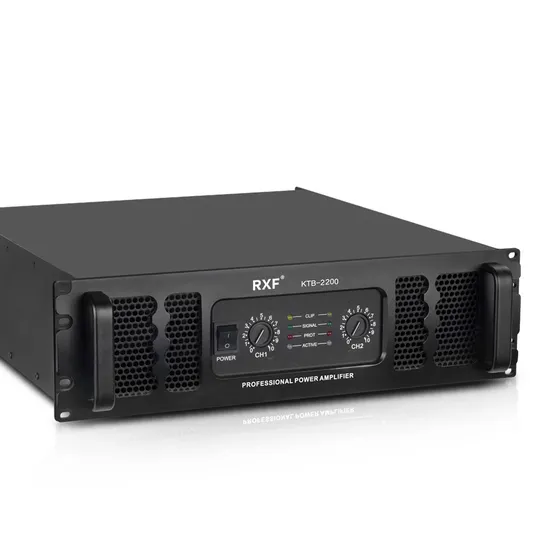

Ktb Series Class Td Power Amplifier: Ideal for Professional Sound Equipment
| US$395.00-436.00 | 5 Sets (MOQ) |
Basic Info.
Model NO.
KTB series
Used For
Professional
Tube Type
Transistor Amplifier
Function
Post Amplifier
Sound Channel
2.0
Output Number
4
Voltage
Customized
Element Number
Push-Pull Amplifier
Conductive Mode
Td
Transistor
Mjl21193/Mjl21194
Input Connectors
3 Pin-XLR/RCA/Trs
Amplifier Protection
DC/VHF/Short Current/Limit/Softstart
Input Sensitive
0.775V/1.0V/1.5V
Transformer
Copper Transformer
Trade Term
EXW, Fob
Transport Package
2 PCS of 5 Layers Kraft Paper Box
Specification
3U
Trademark
RXF, OEM available
Origin
China
HS Code
8518400090
Production Capacity
2000sets/Month
Product Description
Are you looking for an amplifier that work steadily under harsh situation, meanwhile, at an affordable price. then, you shall definitely give us A try. Product Description Feature: KTB series adopt TD circuitry, which produce lesser heat,high power copper transformer, MJL transistors, high-capacity filter capacitors,
with 4 continuously variable fans to ensure the amplifier working perfectly under harsh situation.
| Spec | KTB-1800 | KTB-2000 | KTB-2200 |
| 8 ohms Stereo Power | 2x1800W | 2x2000W | 2x2200W |
| 4 ohms Stereo Power | 2x2700W | 2x3000W | 2x3300W |
| 2 ohms Stereo Power | 2x3600W | 2x4000W | 2x4400W |
| 8 BTL | 4000W | 5000W | 6000W |
| 4 BLT | 6400W | 7000W | 7600W |
| Frequency response | 20-20000Hz(±0.3dB) | ||
| thd+N | >0.08%lKHz | ||
| S/N Ratio | >100dB | ||
| Slew Ratio | >30V/uS | ||
| Damping Factor | >500:1 | ||
| Crosstalk InPut ImPedance | >90dB@lKHz 30Kfi(Balanced,Stereo) 15KO(Blanced,Paralled) | ||
| Input Sensitivity | 0.775V/1.0V/1.4V | ||
| height | 3U | ||
| Packing diamention | 695X585X205mm | ||
Company Profile Since established in 2012 (former company named Enping Lixing Electronics Factory), our company has been focusing on the production and sales of professional power amplifiers. Through many years of running-in with the market, we have accumulated rich production experience, our products have been continuously improved, and our quality is unanimously recognized by our customers.
We adhere to the principle of people-oriented and service-oriented, actively responds to customers' requirements, and sincerely learn from customers' suggestions.
We are expecting your kind visit and sharing ideas .
After Sales Service we offer one year warranty for non-human damages, offer with parts and technical consultant assist to the repair.
