54*3W RGB/RGBW/RGBA/UV/Wa LED Wall Washer Light Waterproof
| US$120.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
LED 2004
IP Rating
IP65
Diffuser
Tempered Glass
Beam Angle
6degree to 120degree to Choose
Lifespan
50000 hours
Warranty
2 Years
Certification
CE
Electric Current Type
AC
Input Voltage
100V/120V/200V/220V /230V/240VAC, 50/60h
Color
RGB/RGBW/RGBA/RGBWA
Base Material
Aluminum Alloy
Transport Package
Carton/Flycase
Specification
Packing size: 62*31*39cm G. W.: 9.0kg
Trademark
MSLighting
Origin
Guangzhou, China
HS Code
94054090
Production Capacity
500PCS/Week
Product Description
LED high power PAR light is designed by MSLIGHTING Co., Ltd. It adopts in 54PCS of 3W RGBW, which is the most advanced lamp as light sources. It is new generation green high technology product. It projects long distance, big angle, and abundant colors. It brings people new vision sense, which makes people feel they are in a changeable color world.The nice design is good for dispelling heat very well and long life. Project angle can be adjusted randomly. The base is with holes, which are facility for orientation and fitting.
It is widely used in stage show, casino, advertisement, outside wall of mansion etc. It is controlled by controller with DMX; The effect can be gradual change, jump change, color glitter, random change, and alternate gradual change and so on. Perfect cast light beam provides architecture designers and light designers abundant imagine space.
| Model | LED 2004 (54*3W) | |
| Housing Material | Aluminum Alloy | |
| Housing Color | Black | |
| Aperture Cover | PMMA | |
| Operating voltage | AC90-240V/50-60HZ | |
| Power | Switch Power Supply | |
| LED current | 680mA | |
| Control Modes | Direct DMX 512, Master/slave. Stand alone. Sound Activity, Sound activity synchronization | |
| DMX Channel | 6CH/3CH,7CH/4CH | |
| Control panel | Digital 4 characters alphanumeric | |

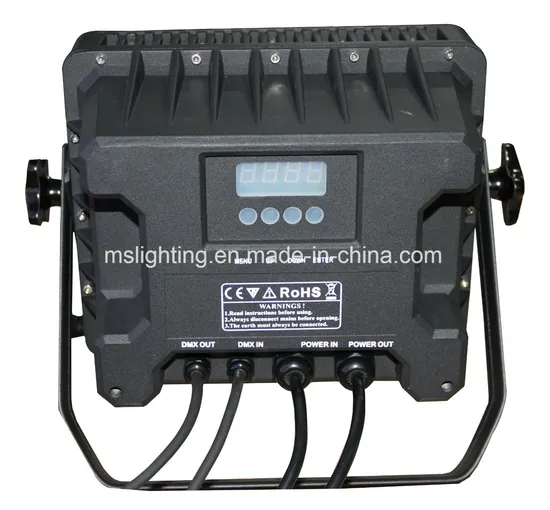

| Connector | 3-PinXLR (In and Out) | |
| NO.of LED | 54*3W LEDS | |
| LED Life Time | 80000-100,000 hours | |
| Power Consumption | 160W | |
| Light Projecting Distance | 25-120M | |
| IP Rating | Outdoor, Waterproof, IP 65 | |
| Operating Temperature | 20ºC-+45ºC | |
| Packing Dimension | 620*310*390 (mm) | |
| Gross Weight | 9.00 (Kg) | |
| Compatibility: | ||
| 1. Color Range: 16.7 million additive RGB colors; continuously variable intensity (256×256×256=16777216) | ||
| 2. Dimming 0-100%with regulated constant color control | ||
| 3.Strobe: 10 Flashed per second (any color) | ||
| 4. Function: it is max mix color, color change, color's gradual change, flash, speed/luminance the adjustable, and save function | ||
| 5. 7channel Mode and 4channel Mode would change each other in every light | ||
| 6. 7CH Mode DMX Value | CH 1_General dimmer (1-255, from dart to light) | |
| CH 2_Red (1-255, Dimmer, from dart to light) | ||
| CH 3_Green (1-255, Dimmer, from dart to light) | ||
| CH 4_Blue (1-255, Dimmer, from dart to light) | ||
| CH 5_White (1-255, Dimmer, from dart to light) | ||
| CH 6_ Strobe & Color change/ color gradual change open | ||
| CH 7_Strobe & Color change& color gradual change's speed adjustment (1-255, Speed adjustment, from slow to fast) | ||
| 7. 4CH Mode DMX Value | CH 1_Red (1-255, Dimmer, from dart to light) | |
| CH 2_Green (1-255, Dimmer, from dart to light) | ||
| CH 3_Blue (1-255, Dimmer, from dart to light) | ||
| CH 4_White (1-255, Dimmer, from dart to light) | ||
| 8. Control modes | 0: sound activity mode | |
| 1. DMX control mode | ||
| 2. Adjusting the color manual | ||
| 3. Adjusting the brightness manual | ||
| 4. Adjusting the strobe manual | ||
| 5. Adjusting the strobe speed manual | ||
| 6. Master-slave control mode, as the master | ||
| 7. Sound activity synchronization mode | ||
| 8 .Adjusting color's gradual change manual | ||
| 9. Adjusting gradual change's speed. | ||
| Each Package Included: | ||
| 1* LED 2004 with Signal Cable :3-PinXLR DMX In and Out + Water Power cable: Power Cable screw water proof connectors in and out (2ft cable) | ||
| 1* User Manual | ||
| 1* Power cable: 3 Pin plug and screw water proof connector on other side. (2ft cable) | ||
| 2* pyrocondensation.cannula (0.66ft = 20cm) | ||
| 1* Waterproof connector's cover for Power cable | ||
