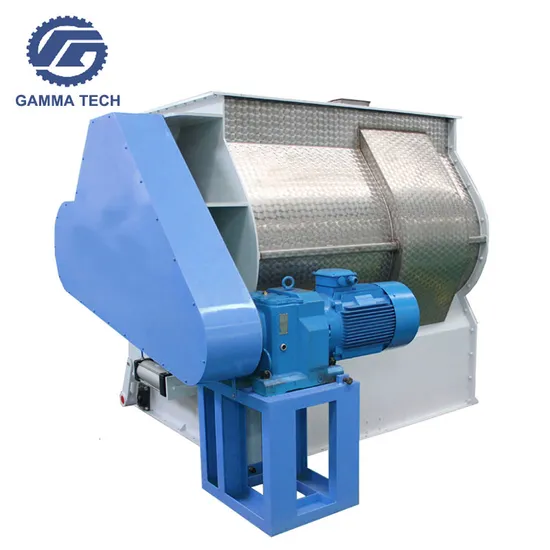

Compact Powder Mixing Machine for Making Premix Feed

Product Description

Sshj Double Shaft Mixer for Feed/Breed Aquatics/Chemical Factory(1) It is widely used in feed, food, chemical industry, chemical, fertilizer and industry for the mixing of powder, granular, flake, lump and other materials . (2) It has high mixing speed and short mixing period, mixing speed is 30-120 seconds per batch . (3) Mixing homogeneity is high, reaching 95% ( i.e. CV is less than 5%). Besides segregation won't happen . (4) Mixing capacity is variable with large effective volume . (5) The bottom-type electric or pneumatic discharging system can assure fast material discharging and less residue wit door shaft chain mechanism . (6) The equipment of return air inlet can help avoid powder leakage, when fully meets the requirement of environment protection . (7) Compressed air cleaning system can be equipped according to your actual need which will minimize the residue amount . (8) Special atomized spraying system customizable, the addition of molasses, oil and other material will be more homogeneous . (9) There are various machine types for your choice, including carbon steel, stainless steel, composite materials .etc
2.Technical Parameters:

Model	Power/KW	Volumn(cbm)	Capacity
SLHSJ1	11	1	0.5t/batch
SLHSJ2	18.5	2	1t/batch
SLHSJ3	22	3	1.5t/batch
SLHSJ4	30/37	4	2t/batch
SLHSJ7	45	7	3.5t/batch
SLHSJ8	45	8	4t/batch

3. Commercial Double Shaft Mixer Photos:
4. Factory Facilities :

About Service
We insist on "Quality is the soul of company" and take customers as our god, owned outstanding R&D team with the sense of innovation and cooperation, timely and effectively after-sales service team, professional installation guidance team. We devote to all-round service of all the products from shipment to maintenance.
√ Our professional service includes: Free training, Guidance Installation and Debugging.
√ Guaranteed Time: 12 moths from delivery date .
If you have any question, please contact us freely. Our after-sales service team on-line will do the best to accomplish your sincere requirement on time.
Thank you for your reliance and support!
Feed MixerFeed Mixing is a process that under external force, all kinds of feed materials are blended and mix together, so that they are distributed evenly in every volume of particles. It is an importabnt process to assure feed products quality. There are 2 types of feed mixers for complete feed pellet line: horizontal ribbon mixer and double-shaft paddle batch mixer.
Working Principle:The outer ribbon spiral pushes the feed material from one end to the other end, and the outer feed material is pushed to the other side and rolled through the extrovert; while the inner screw belt moves the material in the opposite direction, and the inner feed material is pushed to the other side and rolled out from the inside. After repeated many times, the feed is mixed evenly.

Pros:	Cons:
Comparatively low price; Brief structure, easy maintenance; Requires less power and energy consumption.	Mixing time is relatively longer; Mixing uniformity is comparatively low; Not that suitable for adding liquid.

The feed material in the mixer is affected by two opposite rotating rotors, and the compound motion is carried out. On the one hand, the blades carry material to rotatr counterclockwisely along the inner wall of the machine slot. On the other hand, the material is turned around and the weightlessness area is formed at the overlap of the two rotors.

Pros	Cons
Short mixing time; High mixing uniformity; Can add all kinds of liquids.	Comparatively high price; Need large power and energy consumption.

Main features of double-shaft paddle batch mixer The mixing speed is fast, and the batch mixing time is 45~60s; High mixing uniformity, the coefficient of variation is less than 5% CV; It is not easy to segregate when the proportion, size and shape divergences of the material are large; The maximum amount of liquid added can reach 20%, and the maximum adding amount of oil can reach 10%; The power consumption per ton is less than that of the conventional ribbon mixer, which is about 60% lower than that of the conventional ribbon mixer; Large opening type discharge door with fast discharge (5S) and no residue; A wide range of applications.
