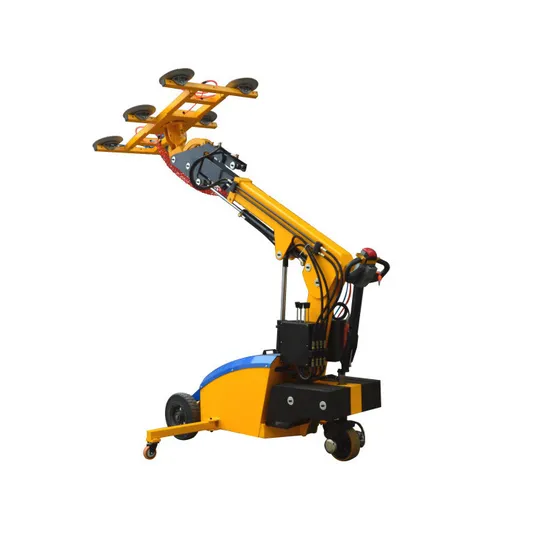

CE Color Customized Glass Robot Trolley Glazing Robot

Product Description

Professional manufacturer for glass machinery, such as grinding machine,vacuum lifter,storage shelfs, laminated furnace and accessories(grinding wheels, sucker, EVA etc)
This machine is ideal for transport the delicate glass within company premises and on construction sites.
Specifications:

Electric Robot	Unit	Detailed info
Rated load capacity	kg	300	350	400	500	600
Manual rotating	deg	360	360	360	360	360
lifting height	mm	3500	3500	3500	3500	3500
Manipulation	/	Walkie Type	Walkie Type	Walkie Type	Walkie Type	Walkie Type
Battery	V/A	2x12/80	2x12/90	2x12/100	2x12/120	2x12/120
Charger	V/A	24/12	24/12	24/15	24/18	24/18
Drive motor	V/W	24/1200	24/1200	24/1200	24/1500	24/1500
Lift motor	V/W	24/2000	24/2000	24/2000	24/2200	24/2200
Overall Width	mm	810	810	810	810	810
Overall Length	mm	2660	2660	2660	2800	2800
Driving wheel dimension	mm	250*80	250*80	250*80	300*100	300*100
Suckers diameter	mm	300	300	300	300	300
The glass size	mm	3660*2440	3660*2440	3660*2440	3660*2440	3660*2440

Why is it more competitive? 1.One multi-purpose machine can lift not only glass but also metal, building panels, granite.
2.Lightweight and extremely easy to operate.
3.Made from Q345 manganese steel material, square tube welding, safe and reliable.
4.With double system control mechanism, one vacuum system for working, and the other one for standby application;
5.Adopt THOMAS brand vacuum pump, Italy METALROTA heavy type driving wheels, Swiss BUCHER hydraulic power unit, and digital maintenance-free battery, it can walk freely without air source or power supply.
6.With 360 degrees rotation and 90 degrees turnover manually, allowing the operator to pick the flat glass accurately and gently.
7.With Japanese PANASONIC digital display vacuum pressure switch and battery meter, clearly monitor the safe operation of the equipment.
8.Equipped with a 12V backup battery. If the battery is dead during operation, it can be replaced in time to ensure the progress of the project.
9.An auto vacuum filling system ensures the whole vacuum system maintains a relatively constant safe pressure and provides continuous operation with predictive maintenance.
10.Structural components can be quickly installed. with the adjustable design, you can change the position of each suction cups, each suction cup with a separate control valve can hold different sizes of glass.
Detailed Pics:
Dimension Drawing:
Customized robot trolley:
Other products:
Comapany Introduction:
Founded by two metal equipment manufacturing industry-leading companies in 2017, Qingdao TOYO Industry Co., Ltd is specialized in glass making machines, systems, and tools for a wide variety of glass production, storage, and installation needs. With over 20 years' experience, not only can we manufacture the core products, but we also maintain long-term and trusty business partnerships with well-known suppliers both domestic and overseas.
We are able to provide one-stop sourcing services and solutions with high efficiency for global clients. We aim to assist you to save communication & negotiation cost with different factories in China, thus, further reducing the total procurement cost.
TOYOCC top-rated products include but not limited to glass grinding machine, glass cutting machine, glass handling & storage systems, laminating furnace, and accessories.
Why Trust Us?
FAQ:
1.Do you offer customized offer?
Yes,we an accept custom.
2.What's the delivery time?
About 20 days.
3.How can I get the after-sales services?
We offer videos,pictures and technical guidance immediately.
4.How can customer buy parts once it break down?
The lift adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
5.How can customer repair if any problem?
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
6.What's your QA&QC policy?
3times 100% inspection before shipping.
