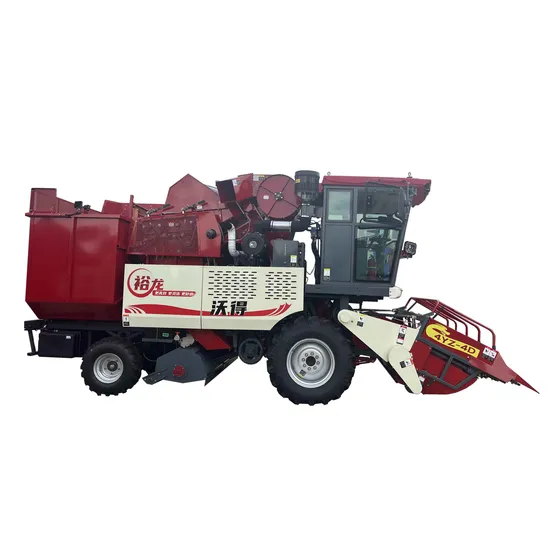

Fmworld Corn Harvester Series 4yz-4D
| US$21,500.00-25,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
4YZ-4D
Application
Corn
Power Source
Diesel
Harvest method
Cutting
Drive Type
Gear Drive
Transmission
Hard Shaft
Color
Red
Condition
New
Application Field
Agriculture
Warranty
2 Years
Weight
7560kg
Transport Package
Nude
Specification
6930*2560*3340mm
Trademark
FMWORLD
Origin
China
Production Capacity
500000
Product Description
| Model | 4YZ-4D | |
| Type | Crawler type, picking ear, peeling, straw turnover | |
| Engine | model | YUCHAI YC6J220-T303/YCA07P240-T401 |
| type | Vertical, inline, water cooled, four stroke | |
| power(kW) | 162/176 | |
| RPM((r/min) | 2300 | |
| Dimension LxWxH | 6930X2560X3340 | |
| Weight (kg) | 7560 | |
| Number of rows (Row) | 4 | |
| Row spacing(mm) | 560 | |
| Cutting Width(mm) | 2340 | |
| Ground Clearance(mm) | 300 | |
| working speed(km/h) | 3~8 | |
| Work efficiency(hm2/h) | 0.4-0.95 | |
| oil consumption(kg/hm2) | W40 | |
| grain Transmission type | central | |
| grain Transmission structural style | Chain rake | |
| Picking type | plate type | |
| picking roller/plate (unit) | 8 | |
| Type of peeling mechanism | rubber roller | |
| Number of Peeling rollers (unit) | 20 | |
| Fan | type | centrifugal |
| diameter(mm) | upper:Φ 613 below:Φ 170 | |
| number | 2 | |
| unloading type | Hydraulic flip unloading | |
| straw returning machine type | Sling blade type | |
| straw returning machine position | central | |
| working width of straw returning machine | 2270 | |
| gear box type | HST+ Mechanical transmission box | |
| wheelbase(mm) | 2950 | |
| Wheel track(mm) | guide wheel:1600 driving wheel :1900 | |
| tyre type | guide wheel:10/75-15.3 driving wheel:15.5/80-24 |
