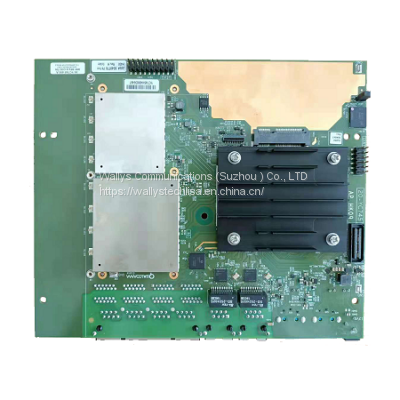

Wallys|DR8072A(HK09) Support WiFi 6E Card,802.11ax QCN9074

Wallys|DR8072A(HK09) Support WiFi 6E Card,802.11ax QCN9074

Product Details

Product Details

Product Description

Product Description
Features■ Qualcomm Atheros IPQ8072A AR Quad Core CPU
■ On-board 5GHz radio, up to 2475 Mbps physical data rate 8 MB NOR Flash, 256MB NAND Flash
■ On-board 2.4GHz radio, up to 1147Mbps physical data rate
■ Support 802.11ac TX Beamforming
■ Support 802.11ac/802.11ax MU-MIMO DL and UL
■ Support OFDMA DL and UL
■ Tri-band support with 5G SBS (4x4/5GHz ) + 4x4/2.4GHz
■ Supports Dynamic Frequency Selection (DFS) IPQ8072 4x4 2.4G & 5G
Absolute Maximum Rating

Parameter
Rating
Unit
Operating Temperature Range
-20 to +70
oC
Storage Temperature Range
-40 to +90
oC
Operating Humidity Range
5 to +95 (non-condensing)
%
Storage Humidity Range
0 to +90 (non-condensing)
%


Hardware Specifications

Symbol
Parameter
CPU
Qualcomm Atheros Quad Core ARM Cortex 64-bit A53 Processor IPQ8072A 2.2GHz CPU
CPU Frequency
Derived from Qualcomm Atheros AP.HK09
System Memory
1x 512MB, DDR4 2400MHz 16-bit interface
Frequency Range
2.412~2.472GHz,
5.150~5.825GHz
MiniPCIe Slot
1x MiniPCIe Slot with PCIe 3.0
Modulation Techniques
OFDMA: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
Environmental Temperature
Operating: -20oC to 70oC,
Storage: -40oC to 90oC
Flash
NOR Flash: 8 MB
NAND Flash: 256MB
Wireless
On-board 4x4 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax, max 17dBm per chain
On-board 4x4 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax, max 17dBm per chain
8x U.FL Connectors
Reset Buttons
1x S/W Reset Button
DC Jack Input
1x DC Jack Connector: 12V

Interface
4x 1Gbps Ethernet Port,
2x 2.5Gbps Ethernet Port
2x USB 3.0 Port
1x JTAG 20 Pin Connector
1x Serial Port 4 Pin Connector
LED
2x RGB LED Indicators
Power Consumption
TBD
