F8000L-F50000L F Type Glass Lined Reactor

Product Description

	Inner Vessel	Jacket
Design Pressure (MPa)	0.4/0.6/1.0	0.6
Design Temperature ( ºC )	-19 ºC /200ºC	-19 ºC /200ºC

Symbol	Usage
a	Medium Outlet
b1,b2,b3,b4	In/Outlet
c	Manhole
d	Agitator Hole
e1	Thermowell
e2, g1, g2, g3, g4, k	Spare
h	Sightglass
m	Vent Hole
n	Clean Hole

F8000L Nozzle Design (Plan View) F10000L~F30000L Nozzle Design (Plan View) F50000L Nozzle Design (Plan View)

Unit: mm
Specifications		F8000	F10000	F12500	F16000	F20000	F30000	F50000
Nominal Capacity (L)		8000	10000	12500	16000	20000	30000	50000
Total Capacity (L)		9105	11719	13696	17491	21835	33645	56444
Calculated Capacity(Notes 1) (L)		9060	11674	13651	17446	21790	33500	55514
Jacket Capacity (L)		1666	1940	2243	2551	2870	3700	4520
Heat Exchange Area ( m2 )		18.38	21.35	24.89	29.48	34.04	45	34.04
Reference Weight (kg)		6959	7911	9342	11222	13530	19270	34590
Main Dimension	d1	2000	2200	2200	2400	2600	3000	3800
	d2	2200	2400	2400	2600	2800	3200	4000
	d3(Notes 2)	2452	2703	2703	2908	3179	/	/
	h1	3310	3533	4053	4346	4641	5340	5611
	h2	210	210	210	210	210	260	647
	h3	850	900	900	950	1000	1150	1340
	h4	1200	1300	1300	1400	1550	/	/
	h	5400	5600	6530	7010	7475	8835	10425
	B1	400	470	470	470	470	470	470
	B2	510	550	550	550	550	550	550
	Φ	30	36	36	36	36	/	/
Nozzle DN	a	125	150	150	150	150	150	150
	c	300×400	300×400	300×400	450	450	450	450
	d	200	200	200	200	250	250	250
	e1	200	200	200	200	200	200	200
	e2	150	200	200	200	200	200	200
	e3	/	/	/	/	/	/	200
	g1	150	150	150	150	150	150	150
	g2	150	150	150	150	150	150	150
	g3	/	150	150	150	150	150	150
	g4	150	150	150	150	150	150	150
	h	125	125	125	125	125	125	125
	k	125	125	125	125	125	125	125
Jacket Nozzle DN	b1	65	80	80	100	100	100	125
	b2	65	80	80	100	100	100	125
	b3	65	80	80	100	100	100	125
	b4	/	80	80	100	100	100	100
	f1	65	80	80	100	100	100	100
	f2	65	80	80	100	100	100	100
	f3	65	80	80	100	100	100	100
	m	G3/4"	G3/4"	G3/4"	G3/4"	G3/4"	G3/4"	G3/4"
	n	G1/2"	G1/2"	G1/2"	G1/2"	G1/2"	G1/2"	G1/2"
Drive	DN	110	110	110	130	140	160	160
	h5	1375	1375	1375	1995	2190	2420	2640
Notes 1: Calculated Capacity: Volume under highneck flange.
Notes 2: Support types could be determined by users; if there is no special request, lugs would be normally applied.

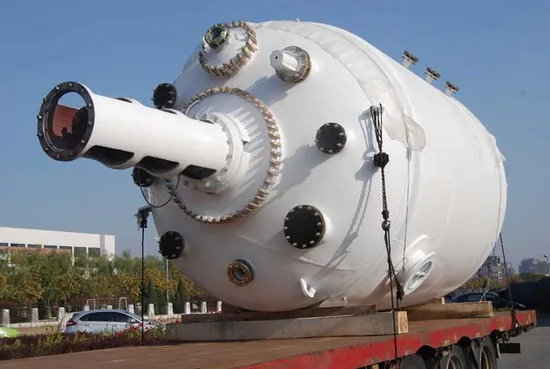

Main Features The F type glass lined reactor comes with a one-piece design that the cover and body can not be separated. Due to that, a manhole has to be designed on the head of the reactor to make it easy for operators to enter the reactor to carry out maintenance and parts replacement. It is a large capacity industrial process reactor, suitable for large scale production environment. Similar to the K-type reactor, this type of chemical reactor is manufactured using high end enamel and skilled enameling process. This enables the glass lining to be remarkably corrosion resistant, impact resistant and temperature variation resistant, combined with less prone to fracture and high durability. We are able to design and manufacture non standard glass lined reactor to user's requirements. Our F type glass lined steel reactor comes in complete specifications, including F1500L, F2000L, F3000L, F4000L, F5000L, F6300L, F8000L, F10000L, F12500L, F16000L, F20000L, F30000L, F50000L, etc.
