Advanced Sand, Ore, Coal, and Quartz Stone Ball Mill Machine

Product Description

Product Description
Xuzhou Churun Heavy Machinery Manufacturing Co., Ltd. stands proudly as one of the global leaders in the field of grinding equipment R&D and production. Renowned for our state-of-the-art domestic grinding mill design team and cutting-edge process technology, we boast first-class production equipment. Our company has meticulously crafted a comprehensive mill experiment, testing, measurement, and service supply system. Leveraging advanced technology, we possess the capability to manufacture a diverse range of mills including ball mills, rod mills, cement mills, bearing mills, bushing mills, overflow mills, lattice mills, and air coal mills.
The ball mill, a quintessential grinding machine, is designed to pulverize crushed materials into ultra-fine powders. This series of ball mills finds extensive applications in industries and mining enterprises, including sectors like mining ores (Gold, Copper, Lead, Manganese, Iron, Slag, Silver, Aluminum, Limestone, Gypsum Powder), metallurgy, building materials, chemicals, and various other grindable materials. Perfectly suited for both wet and dry milling, these mills can operate in open circuit grinding or in a circular grinding configuration with a power feeder. Noteworthy for its intelligent design, the ball mill offers robust adaptability to various raw materials, rapid operational speed, high crushing ratio, large capacity, and user-friendly operation.
Wet Grinding Ball Mill Working Principle:
The working principle of the wet grinding ball mill is a marvel of engineering. The electric motor powers the cylinder to rotate via a reducer, causing the interior's broken ore and steel balls to ascend to a certain height under the combined influence of friction and eccentric forces generated by the rotation. As gravity takes over, the ores descend and are progressively pulverized by the impact and grinding forces. The crushed ore is expelled from the cylinder through the discharge section and subsequently classified by a spiral classifier. Coarse sand is redirected back to the ball mill by the joint feeding machine for further grinding. The feeding machine ensures a steady and uniform supply of materials, ushering ores into the ball mill consistently. Consequently, the ground materials are continuously discharged from the Chinaware ball mill, making it a 24/7 operational powder grinding powerhouse.

Characteristics
1. Large ring gear, large side cover, and robust bearings: Our mill features an enlarged gear hub designed for extended longevity, enhanced by a high-frequency quenching heat treatment process on the modulated surface. Similarly, the sprocket benefits from the same advanced heat treatment technique.
2. Energy saving: Utilizing ball bearings in place of slide bearings significantly reduces friction, facilitating easier starts and delivering an impressive 10-15% energy savings compared to traditional ball mills.
3. Large processing capacity: Equipped with a discharge disc and a standard mill grate plate, this mill offers over 20% increased processing capacity compared to the energy-saving conical ball mill.
4. Efficient mud management: With a low mud surface at the discharge port, our mill ensures rapid mud passage, thereby minimizing excessive ore grinding.
5. Optimized ball loading: The mill supports a diverse load of balls, both large and small, ensuring small balls remain within and maintain optimal working conditions.
6. Easy installation: Built with a supportive frame, our equipment simplifies the installation process, making it more convenient for clients on-site.
7. Reliable electronic control system: Our advanced electronic control system includes protective measures against motor overcurrent, power failures, and power supply imbalances, ensuring seamless and worry-free operation.
Detailed Photos
Ball MillStructure: This innovative grinding mill encompasses a comprehensive feeding system, an efficient discharging system, and a robust transmission system. The transmission system includes a speed reducer, small transmission gear, high-performance electrical machinery, and advanced electric control, making it the epitome of engineering excellence.
Product Parameters
Our commitment to quality is unwavering; only products that meet our stringent standards reach the market. This dedication has swiftly positioned us as a market leader both domestically and internationally, thanks to the superior quality and dependable performance of our offerings.

Drum Size	capacity(t/h)	rotation rate(rpm)	Ball Weigh(t)	kind of drive	Reduce	Power(Kw)
Φ1.5*5.7	33-6	27	11	margin	ZD40	130
Φ1.5*6.4	4-7	27	12	margin	ZD40	130
Φ1.83*7	8-13	23.9	21	margin	ZD60	245
Φ2.2*7	13-18	21.4	33	margin	ZD60	380
Φ2.2*7.5	14-19	21.4	35	margin	ZD60	380
Φ2.2*10	15-20	21.4	45	margin	ZD80	475
Φ2.4*8	18-27	20.4	41	margin	ZD80	475
Φ2.4*9	19-29	20.4	42	margin	ZD80	570
Φ2.4*10	20-32	20.4	52	margin	ZD80	630
Φ2.4*11	21-34	20.4	60	margin	ZD80	630
Φ2.4*13	23-36	20.4	65	margin	MBY710	800
Φ2.6*10	28-38	19.7	70	margin	MBY710	800
Φ2.6*13	30-40	19.7	78	margin	MBY800	1000
Φ2.8*13	32-42	19.7	78	margin	MBY800	1250
Φ3.0*9	32-42	18.14	83	margin	MBY710	1000
Φ3.0*11	35-48	18.14	100	margin	MBY800	1250
Φ3.0*13	36-50	18.14	102	margin	MBY900	1400
Φ3.2*4.5	30-50	18.7	45	margin	MBY710	800
Φ3.2*11	38-52	17.76	110	margin	JDX100	1600
Φ3.2*13	45-60	17.76	120	margin	JDX100	1600
Φ3.5*13	65-90	17.1	165	margin	MBY1100	2000
Φ3.6*4.5	90-136	17.8	58	margin	MBY800	1000
Φ3.6*9	20-45	16.9	70	margin	Synchronous motor:1600
Φ3.8*13	70-100	16.8	180	margin	DBS280	2500
Φ4.2*13	130-150	15.9	231	margin	DBS280	3550

Packaging & Shipping

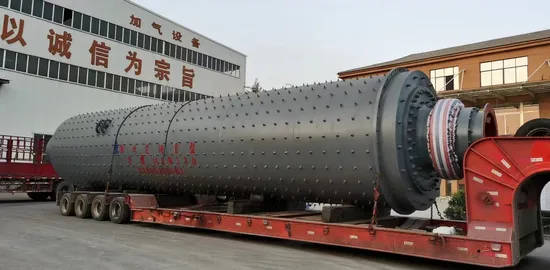

At Xuzhou Churun Heavy Machinery Manufacturing Co., Ltd., we prioritize the safe and efficient delivery of your Efficient Quicklime and Fly Ash Grinding Mill. To ensure the utmost care, we disassemble the machines before shipment and utilize a variety of robust packaging methods, including nude packing, bundle packing, grass rope packing, water-proof packing, wooden pallet packing, and wooden or carton box packing. Each method is meticulously selected to guarantee the protection and integrity of our products during transit.
Our Advantages
Xuzhou Churun Heavy Machinery Manufacturing Co., Ltd. proudly spans over a vast area of 5000 square meters, showcasing our expansive and well-equipped facilities.
Churun places our customers at the heart of everything we do, offering bespoke, comprehensive plant equipment configuration solutions. With nearly 300 thriving production lines across global industries such as cement, chemical, lithium mica, taconite, metallurgy, and solid waste disposal, we showcase our industry leadership. Our technical team, comprising seasoned experts, delivers profound design capabilities and extensive experience, achieving remarkable market success and earning the unwavering trust and praise of users worldwide. Looking ahead, Churun Heavy Industry commits to professionalism, integrity, and innovation, ensuring we provide efficient, reliable equipment and technical solutions that keep pace with the times.
Headquarter of
Churun
is strategically located in
Xuzhou
city, encompassing approximately 200,000 square meters. Our state-of-the-art facilities house over 200 sets of large and medium-sized metal processing equipment, including lathes, riveting machines, welding equipment, and assembly stations.
Today, our products boast recognition from both domestic and international customers. Our successful exports span across Indonesia, Russia, Cambodia, Vietnam, Laos, Africa, Uzbekistan, Romania, and many other countries and regions.

After Sales Service
Best Service: Our exceptional after-sales service and consultation set us apart. We pride ourselves on a customer-centric approach, ensuring we are readily accessible via sales hotline, email, Skype, or MSN. We guarantee a swift response to emails, typically within 30 minutes.
Pre-sale Services: Enthusiasm
We offer comprehensive pre-sale services, including an initial plan, process flow design, and manufacturing equipment tailored to your unique needs.
Sale Services: Commitment
Our expert technicians will be dispatched to your jobsite to guide installation and adjustments, train operators, and conduct joint check and acceptance procedures.
After-sale Services: Loyalty
To cultivate long-term relationships, we commit to regular follow-up visits to our customers.
Moreover, we provide a one-year warranty to ensure your machine operates reliably. We maintain an inventory of essential spare parts, allowing us to ship replacements promptly.
We warmly invite you to visit our company and workshop. We eagerly anticipate the opportunity to collaborate with you, offering the most suitable products at competitive prices.
FAQ
1 . Why Choose Xuzhou Churun Heavy Machinery Manufacturing Co., Ltd:
1. Over three decades of unparalleled expertise.
2. We are the premier supplier of mining machinery, construction machinery, machine casting, and forged parts.
3. Our products meet the stringent ISO9901:2000 quality management standards.
4.We offer video calls at any time to showcase our actual factory operations.
2. How long is the delivery time of your product? The delivery time is within 30 working days.3. Payment Terms:
A: Accepted payment methods: T/T, Cash. 30% deposit upon signing the contract, with the balance due before shipping.4. How long is the product warranty period? Our warranty period is 1 year, excluding wearing parts.5. What after-sales services does your company offer? We provide clients with foundation drawings for installation. Additionally, we offer guidance for the installation and operation of workers.6. Can your company provide spare parts? We can deliver spare parts within 30working days after your order. If your equipment was not manufactured by our company, please provide the drawing or part number of the wearing parts.
