Economic EUR Standard Upright Drilling Machine (Z5045/1 Z5040/1 Z5032/1)
| US$1,150.00-1,400.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5045/1 Z5040/1 Z5032/1
Number of Shaft
3
Hole Diameter
<50mm
Automatic Grade
Semiautomatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Model
Z5045/1
Function
Drilling Milling Tapping
Spindle Travel
130mm
Spindle Taper
Mt3 Mt4 R8
Range of Spindle Speed 50Hz
80-1250 r.p.m
Range of Spindle Speed 60Hz
95-1500 r.p.m
Step of Spindle Auto-Feeding
6
Transport Package
Plywooden Case
Specification
ISO9001: 2000 CE TUV
Trademark
white eagle
Origin
Made in China
HS Code
8459290000
Production Capacity
10000PCS/Month
Product Description
Drilling Machine (Z5045/1 Z5040/1 Z5032/1)Features:
Drilling, milling and tapping
Head swivels 360 horizontally
Headstock and Worktable up & down perpendicularly
Super high column
Precision micro feed
Positive spindel lock
Distinct auto device for releasing tools, operate easily
Geared drive, lower noise
Our understanding and experience in your market demand, our accurate pricing and excellent service will be your right access Chinese Industrial Supplies. Recommend the most suitable machinery for your market With over 60 years experience in industrial and mechanical industry, we can define the different markets exactly.

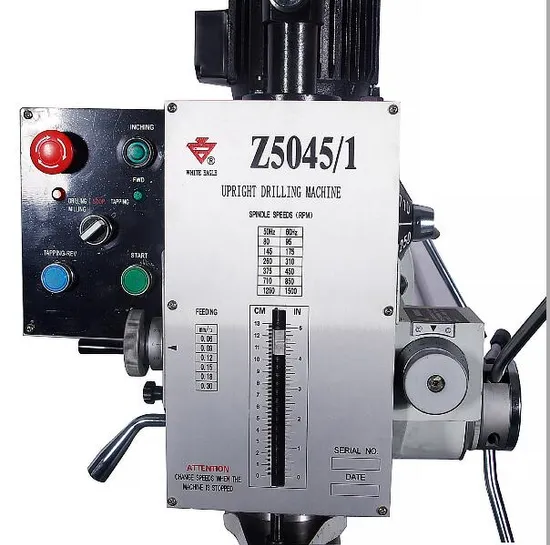

2.Machine photos
3.Specification
| Drilling Machine | Z5032/1 | Z5040/1 | Z5045/1 |
| Max. drilling capacity | 32mm | 40mm | 45mm |
| Spindle taper | M. T. 3 or R8 | M. T. 4 | M. T. 4 |
| Spindle travel | 130mm | 130mm | 130mm |
| Step of speed | 6 | 6 | 6 |
| Range of spindle speed 50Hz | 80-1250 r. p. m | 80-1250 r. p. m | 80-1250 r. p. m |
| 60Hz | 95-1500 r. p. m | 95-1500 r. p. m | 95-1500 r. p. m |
| Step of spindle auto-feeding | 6 | 6 | 6 |
| Range of spindle auto-feeding amount | 0.06-0.30mm/r | 0.06-0.30mm/r | 0.06-0.30mm/r |
| Min. distance from spindle axis to column | 290mm | 290mm | 290mm |
| Max. distance from spindle nose to worktable | 725mm | 725mm | 725mm |
| Max. distance from spindle nose to stand table | 1125mm | 1125mm | 1125mm |
| Max. travel of headstock | 250mm | 250mm | 250mm |
| Swivel angle of headstock(horizontal) | 360° | 360° | 360° |
| Max. travel of worktable bracket | 600mm | 600mm | 600mm |
| Worktable size of avaliablity | 380× 300mm | 380× 300mm | 380× 300mm |
| Swivel angle of table horizontally | 360 degree | 360 degree | 360 degree |
| Table leaned | ± 45° | ± 45° | ± 45° |
| Size of stand worktable of avaliability | 417× 416mm | 417× 416mm | 417× 416mm |
| Motor power | 0.75KW(1HP) | 1.1KW(1.5HP) | 1.5KW(2HP) |
| Voltage/Frequency | As customer' s requirement | As customer' s requirement | As customer' s requirement |
| speed of motor | 1400 r. p. m | 1400 r. p. m | 1400 r. p. m |
| Cooling pump power | 0.04KW | 0.04KW | 0.04KW |
| Net weight/Gross weight | 437kg/487kg | 442kg/492kg | 442kg/492kg |
| Packing size | 1850× 750× 1000mm | 1850× 750× 1000mm | 1850× 750× 1000mm |
| Loading amount | 18pcs/20" container | 18pcs/20" container | 18pcs/20" container |
Standard accessories
drill chuck1-13mm, Removing Block,Drill chuck arbor
Optional accessories:
90mm paraller vise
125mm paraller vise
milling cuttter holder
drill chuck
Mill chuck
Coolant system
Working lamp
Auto-tapping electrical
Boring bar
