China Supplier High Quality New Original Factory Price Advance Speed Transmission/Reduction/Reversing Hcd800gearbox for Fishing Boat/Ship Marine Diesel Engine

Product Description

Product Description
Description

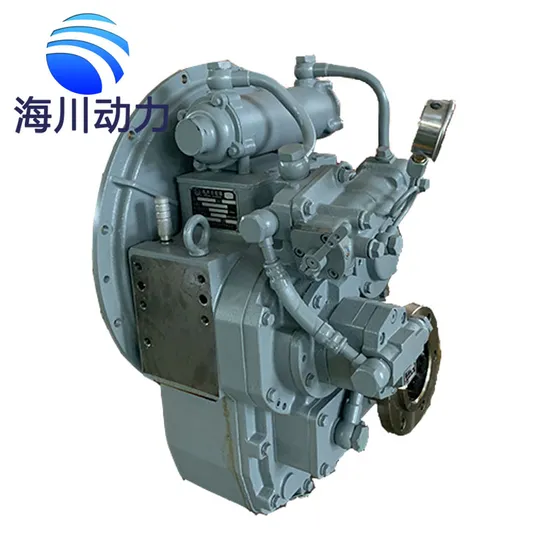

Marine Gearbox HCD800 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and one-stage transmission, featuring in small in volume, large in ratio, light in weight and easy in dismantle & reassemble and maintain. ADVANCE HCD800 - 3.429:1 MEDIUM/HEAVY DUTY GEARBOX

Reference number	A-HCD800-3,429
Brand	Advance
Model	HCD800
Ratio	3,429:1
Power	1530 HP @ 1800 RPM
Max. Power	1530 HP @ 1800 RPM
RPM Range	1000-1800
Rated propeller thrust	110 kn
N/n	0,85 hp/rpm

FEATURES & OPTIONS

Sae housing	Without/sae-00
Controls	Mechanical
Pto	Not available
Coupling size	21 /18 inch
Coupling type	Rubber block drive, with alu. ring

DIMENSIONS

Vertical offset	450 mm
LxWxH	1056x1280x1341 mm
Net. weight	2200 kg

AVAILABLE ARRANGEMENTS

Ratio	3,96:1	3,429:1	4,167:1	4,391:1	4,905:1	5,474:1	5,889:1
Rate	0,85 hp/rpm				0,80 hp/rpm	0,75 hp/rpm	0,70 hp/rpm

Other Models:
ADVANCE 135A - 5,06:1 MEDIUM/HEAVY DUTY GEARBOX

Reference number	A-135A-5,06
Brand	Advance
Model	135A
Ratio	5,06:1
Power	212,4 HP @ 1800 RPM
Max. Power	236 HP @ 2000 RPM
RPM Range	1000-2000
Rated propeller thrust	29,4 kn
N/n	0,118 hp/rpm

FEATURES & OPTIONS

Sae housing	Without/sae-1
Controls	Mechanical/ electrical
Pto	Not available
Coupling size	14 inch
Coupling type	Rubber block drive, with alu. ring

DIMENSIONS

Vertical offset	225 mm
LxWxH	578x744x830 mm
Net. weight	470 kg

AVAILABLE ARRANGEMENTS

Ratio	2,03:1	2,59:1	3,04:1	3,62:1	4,11:1	4,65:1	5,06:1	5,47:1	5,81:1
Rate	0,134 hp/rpm					0,125 hp/rpm	0,118 hp/rpm	0,103 hp/rpm	0,094 hp/rpm

ADVANCE HCD600A - 5,44:1 MEDIUM/HEAVY DUTY GEARBOX

Reference number	A-HCD600A-5,44
Brand	Advance
Model	HCD600A
Ratio	5,44:1
Power	972 HP @ 1800 RPM
Max. Power	1134 HP @ 2100 RPM
RPM Range	1000-2100
Rated propeller thrust	90 kn
N/n	0,54 hp/rpm

FEATURES & OPTIONS

Sae housing	Without/sae-00
Controls	Mechanical
Pto	Not available
Coupling size	21 /18 /14 inch
Coupling type	Rubber block drive, with alu. ring/(high) flexible coupling

DIMENSIONS

Vertical offset	415 mm
LxWxH	745x1094x1271 mm
Net. weight	1550 kg

AVAILABLE ARRANGEMENTS

Ratio	3,32:1	4,7:1	4,18:1	4,43:1	5,44:1	5,71:1	5:1
Rate	0,65 hp/rpm			0,62 hp/rpm	0,54 hp/rpm		0,6 hp/rpm

ADVANCE HC400 - 4,06:1 MEDIUM/HEAVY DUTY GEARBOX

Reference number	A-HC400-4,06
Brand	Advance
Model	HC400
Ratio	4,06:1
Power	684 HP @ 1800 RPM
Max. Power	684 HP @ 1800 RPM
RPM Range	1000-1800
Rated propeller thrust	82 kn
N/n	0,38 hp/rpm

FEATURES & OPTIONS

Sae housing	Without/sae-0/sae-1
Controls	Mechanical/ electrical
Pto	Not available
Coupling size	18 /16 /14 inch
Coupling type	Rubber block drive, with alu. ring/(high) flexible coupling

DIMENSIONS

Vertical offset	264 mm
LxWxH	843x950x890 mm
Net. weight	820 kg

AVAILABLE ARRANGEMENTS

Ratio	1,5:1	1,77:1	2,04:1	2,5:1	3,25:1	3,38:1	3,42:1	3:1	4,06:1	4,61:1	4,94:1
Rate	0,45 hp/rpm								0,38 hp/rpm	0,25 hp/rpm

ADVANCE D300A - 4:1 MEDIUM/HEAVY DUTY GEARBOX

Reference number	A-D300A-4
Brand	Advance
Model	D300A
Ratio	4:1
Power	630 HP @ 1800 RPM
Max. Power	805 HP @ 2300 RPM
RPM Range	1000-2300
Rated propeller thrust	60 kn
N/n	0,35 hp/rpm

FEATURES & OPTIONS

Sae housing	Without/sae-0/sae-1
Controls	Mechanical/ electrical
Pto	Available
Note	If using flexible couping, rate will rise 8%
Coupling size	18 /16 /14 inch
Coupling type	Rubber block drive, with alu. ring/(high) flexible coupling

DIMENSIONS

Vertical offset	355 mm
LxWxH	786x920x1040 mm
Net. weight	940 kg

AVAILABLE ARRANGEMENTS

Ratio	4,48:1	4:1	5,05:1	5,52:1	5,9:1	6,56:1	7,06:1	7,63:1
Rate	0,33 hp/rpm	0,35 hp/rpm	0,30 hp/rpm	0,25 hp/rpm		0,20 hp/rpm		0,17 hp/rpm

Company Profile
About Company
Located in Weifang City, Shandong Province, Weifang Haichuan Power Co., Ltd. is a professional manufacturer and sales company of diesel engines, generator sets, diesel pumps and relevant parts .
The Company has established business relationship with thousands of customers, and with high quality and perfect after-sales services, its products have been well received by all customers from Russia, Saudi Arabia, India, Sri Lanka, Philippines, Bangladesh, Singapore, Indonesia, Malaysia, Angola, Nigeria, etc.
On the principles of "quality first, reputation first" , Haichuan Power looks forward to creating a better tomorrow together with customers at home and abroad.
After Sales Service
SERVICES
Pre-Sales Service * Inquiry and consulting support.
* View our Factory. After-Sales Service * Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Warranty Period: One year or 1200 hours use.
Packaging: The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
FAQ
Q1. What is your terms of packing?
A: Generally, we pack our goods in plywood boxes.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: FOB, CIF.
Q4. How about your delivery time?
A: 15-20 working days upon receipt of the deposit.
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers' benefit; 2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
