Factory Price 52m Hb52K Truck Mounted Concrete Pump with Spare Parts

Product Description

Detail images
Overview

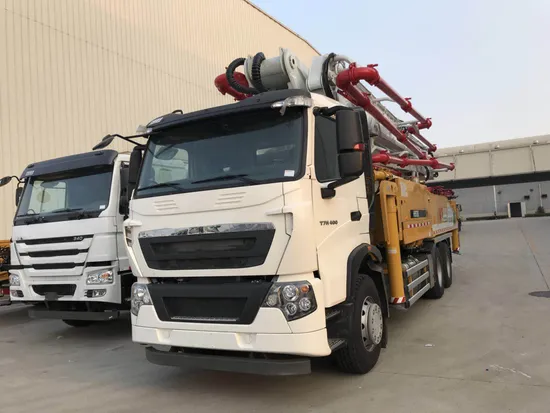

High-quality 52m HB52K Truck Mounted Concrete Pump with Factory Price
V7 series truck mounted concrete pump is a new generation equipment which is developed by SCHWING Germany technology.
It is highly reliable and durable with seven technical highlights. More advanced boom structure technology ,More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
5 section Z-boom for optimal design of frame structure and hinge mechanism, with more space to a job, manipulation is more flexible, long life characteristics.
Performance Highlights:
* Large diameter (260 mm) Φ, large displacement (170 / hour) pumping systems.
* Material absorption can reach more than 85%.
* Effectively reduce emissions with the reversing, vulnerability of longer life.
* The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
* The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
Specification

Description	Unit		Parameter value
Outline dimension	mm		13120×2500×3990
Overall weight	kg		34000
Chassis	Model		ZZ5347V484MD1
	Max. speed	km/h	90
	Max. grade-ability	%	40
	Wheelbase	mm	4800+1400
	Tire		315/80R22.5
Engine	Model		MC11.40-40
	Max. power	kW	297
	Max. torque	N·m/(r/min)	1900/1000~1400
	Displacement	L	10.518
	Emission standard		Eruo IV
Pumping system	Theoretical output	m³/h	170
	Concrete pumping pressure	MPa	8
	Theoretical pumping times	Time/min	23~26
	Delivery cylinder diameter ×stroke	mm	φ260×2000
	Max. diameter of pumping concrete	mm	≤40
	Filling height	mm	1580
	Concrete slump range	cm	8~23
Placing boom	Reach height	m	51.5
	Reach depth	m	36.1
	Slewingradius	m	46
	Slewing angle	°	±270
	Unfolding angle of the 1st section	°	90
	Unfolding angle of the 2nd section	°	180
	Unfolding angle of the 3rd section	°	180
	Unfolding angle of the 4th section	°	240
	Unfolding angle of the 5th section	°	210
	Unfolding angle of the 6th section	°	120
Stabilizer span	Longitudinal span of stabilizer	mm	9540
	Transverse span of front stabilizer	mm	9150
	Transverse span of rear stabilizer	mm	10060
Others	Lubrication method		Automatic lubrication
	Control method		Manual/remote control
	Volume of water box	L	1200
