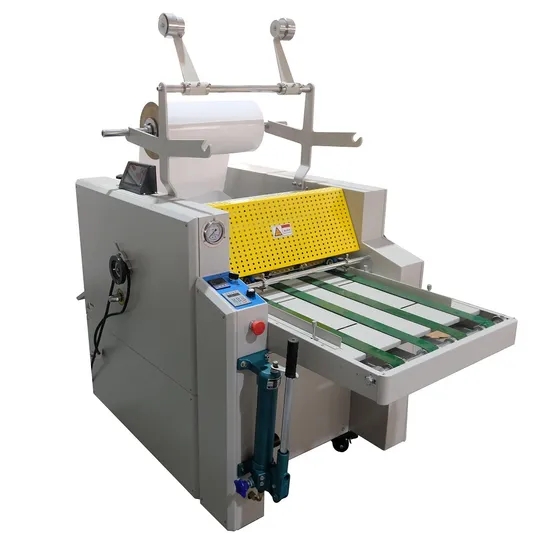

A2 A4 Paper Sheet Thermal Heat Lamination Machine
| US$4,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
SWFC-520C
Classification
Heat Lamination Machine
Application
Packaging Paper, Film Material
Driven Type
Electric
Automatic Grade
Semi-Automatic
Membrane Material
All Kinds of Plastic Films,Paper,Aluminum Foil etc
Plastic Film Mulching Modes
Solventbased Lamination
Performance
Thermal Lamination
Transport Package
Film Wrapping
Specification
1030x2300x3150mm
Trademark
HX
Origin
Wenzhou, Zhejiang, China
HS Code
8420100090
Production Capacity
20 Sets/Month
Product Description
SWFM520C/720C/920C Hydraulic automatic cut laminating machineoil heating
With automatic cut
With overlap function
SWFM-520C / 720C hydraulic oil heating semi-automatic laminating machine (with pull off), the aircraft covers an area of small, easy to operate, fast, with automatic temperature control, anti-curl set, South Korea imported silicone. Manual pressure. Users only need to enter the meter on the need to break the length of the paper, you can complete the film after the pull off the rear plate with a receipt.
The machine to pre-coated polyester film as material, can be widely used in window-type packaging boxes, food boxes, books, drawings, advertisements, certificates and other products of the surface coating, the printed film after the film, waterproof, durable, Clear.
The main machine parameters
| Model | SWFM-520C | SWFM720C | SWFM920C |
| Max paper size | 490x580mm | 690x580mm | 890x580mm |
| Mini paper size | 150x200mm | 150x200mm | 150x200mm |
| Operating speed | 0-25m/min | 0-25m/min | 0-25m/min |
| Laminating temperature | 50-120ºC | 50-120ºC | 50-120ºC |
| Total power | 4kw | 4kw | 5kw |
| Dimensions(LxWxH ) | 2x1.1x1.4m | 2x1.3x1.4m | 2x1.5x1.4m |
| Pressure | 3~6Mpa | 3~8Mpa | 3~8Mpa |
| Pressure mode | Manual | Manual | Manual |
| Voltage | 220V/50Hz | 220V/50Hz | 220V/50Hz |
| roller diameter | 220mm | 220mm | 220mm |
| Feeding mode | by hands | by hands | by hands |
| Slitting function | with | with | with |
| Anti-curl function | with | with | with |
| Auto pull of film after laminating | Yes | Yes | Yes |
| With overlap | with | with | with |
