Mini Single Screw 55mm Mono Layer 1000mm Single Layer Film Blowing Machine

Product Description

Product Description

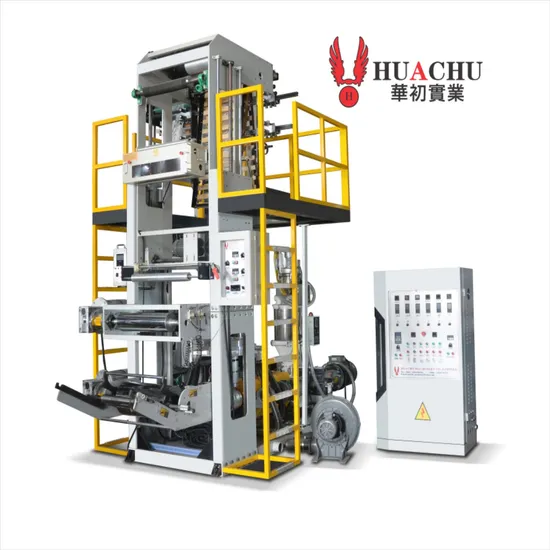

Mini single screw mono layer Film Blowing Machine
Mini single screw mono layer Film Blowing Machine With Rotary Die Double Winder is professional used in blowing HDPE and LDPE film. The machine can increase production output , improve quality of film and save your cost, which is suitable for blowing high-low pressure polyethylene industrial film and agricultural film. APPLICATIONS
-------------------------------------------------------------------------------------------------------------------------------------- Shopping bag, Garbage bag, Packaging bag,industrial film , agricultural film
PRODUCT INFORMATION --------------------------------------------------------------------------------------------------------------------------------------
Mini single screw mono layer (HD/LDPE) Film Blowing Machine With Rotary Die single Winder Performance and Characteristics:
The machinge body is channel steel frame traction frequency friction,with single rolling friction,lift up and down which is suitable for blowing high-low pressure polyethylene industral fiml and agricultural film. Detailed Photos
Product Parameters

EXTRUDER	MODEL	MINI 55-1000
FEATURE	SUITABLE MATERIAL	HDPE, LDPE,LLDPE
	LAYER NUMBER	1-Layer
	FILM THICKNESS	HD :0.01-0.06 LD: 0.03-0.12MM
	MAX OUTPUT	100KG/H
	MAX FILM WIDTH	900mm
EXTRUSION UNIT	SCREW DIAMETER	Φ55X1
	SCREW L/D RATIO	32/1
	SCREW MATERIAL	BIMETALLIC
	BARREL THERMO CONTROL	3X1
	BARREL COOLING FAN	200WX3X1
	SCREEN CHANGER	STANDARD
	DRIVING MOTOR	22 KWX1
	GEARBOX	#180 SG
	DIE	ROTARY or fixed DIE LD Φ180 MM
	DIE THEROMO CONTROL	2
	AIR RING	DUAL LIP
	FLANGE THERMO CONTROL	2
	AIR BLOWER	3.7 KW
	TAKE UP TYPE	UP AND DOWN
TAKE UP UNIT (UP AND DOWN DESIGN)	TOP NIP MATERIAL	WOODEN
	TAKE UP ROLL MATERIAL	HIGH TEMP RUBBER
	TAKE-UP ROLLER LENGTH	1000MM
	GUSSET	√
	TAKE-UP MOTOR	1.5KW GEAR MOTOR
	TAKE-UP SPEED	10-80M/MIN
	PINCH PATTERN	PNEUMATIC
	WINDING TYPE	SINGLE WINDER ON MACHINE
WINDING UNIT	WINDING ROLLER LENGTH	1000MM
	WINDING SHAFT	AIR SHAFTX2
	BANANA ROLLER	√
	MAX DIA.OF WINDED ROLL	800MM
	WINDING MOTOR	TORQUE MOTOR WITH DELTA INVERTOR
	SPEED CONTROL	BY INVERTER CONTROLL
	Winder	SINGLE manuel winders
OTHERS	AUTO LOADER	INCLUDED
	DRYER	INCLUDED
	HEIGHT	4.8-4.3 METERS AJUSTABLE

<< Details Information >>
<< Machine Parts >>

We are Taiwan Type High Speed Blown Film Machine suppliers/manufacturers from china factory . We can produce the Taiwan Type High Speed Blown Film Machine according to the client's requirement. We are always try our best to become the good Taiwan Type High Speed Blown Film Machine, film blowing machine manufacturers/suppliers and welcome the customer from all over the world to contact with us.

FAQ

A. When your company was found?
B. our sales team has more than 15 years experience in the plastic machinery industry.
A. What are products do you supply?
B. We are manufacturer of Plastic/Biodegradable film blowing machine,Bag making machine,printing machine,plastic recycling machine etc.
A.How about your products warranty ?
B.One year(12 months) Warranty will be provide from the date of container arrive Clients'factory.If machine parts are broken due to quality problem within warranty period, we will send new part for free( Any artificial misuse or destory prepensely is not included within the limitation of Quality Guarantee).
A. What are your Payment and delivery terms?
B.Payment term:
1) T/T, 30% as prepaid ,70% before delivery
2) L/C, 30% by T/T ,70% as L/C at sight, and for clients from Bangladesh&Ethiopia ,we accept 100% L/C at sight.
Delivery time: Standard will be in 30-40 working days
A.What Technical Support we can get if order machines
B.We can provide Installation Drawings,Basic operating instructions,Operation explanation through Video&Photos,Online video calling for technical support if necessary.
