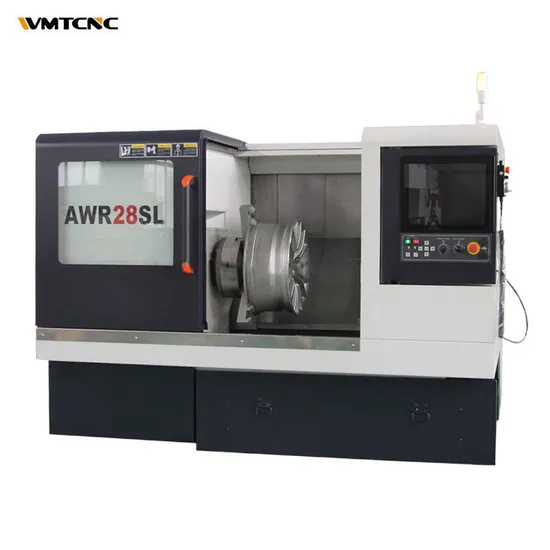

AWR28SL 4th Generation Alloy Wheel Cutting CNC Machine for Wheel Repair
| US$13,000.00-15,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
AWR28SL
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01mm
Performance Classification
Economical CNC Machine Tools
Certification
CE
Condition
New
After Warranty Service
Video technical support
Weight
2400kgs
Dimension(L*W*H)
2220 X 1556 X 1523mm
Power
5.5kw
Transport Package
Standard Ply-Wood Case
Specification
CE, SGS, ISO9001: 2000
Trademark
WMTCNC
Origin
Anhui, China
Production Capacity
50 Set/Sets Per Month
Product Description
Feature:
Wheel cutting from 11'' to 28''
User-friendly fully automatic software.
17'' Touchscreen controller
Slant bed structure to remove chip easily
Liner guide with high precision and long life
Different Language & Voltage as requirement
Specification
| model | AWR28SL |
| X axis travel | 520 mm |
| Z axis travel | 530mm |
| Jaw chuck | 16'' with 3 step soft jaw |
| Alloy wheel gripping O.D. Range | 11''~28'' |
| Spindle motor | 5.5 kw |
| Spindle speed | 40~1200 r/min |
| X axis rapid traverse | 10m/min |
| Z axis rapid traverse | 12m/min |
| Cutting feed rate range | 0.05~200mm/min |
| Position accuracy | X--0.01mm; Z--0.01mm |
| Re-position accuracy | X--0.007mm; Z--0.008mm |
| Machine Size (LxWxH ) | 2220 x 1556 x 1523mm |
| Packing size: (LxWxH ) | 2440x 1400 x 1900 mm |
| N.W. / G.W. | 2400kg / 2500kg |
