CNC Technical Spindle Wood Veneer Peeling Lathe Machine

CNC Technical Spindle Wood Veneer Peeling Lathe Machine

US$19,000.00-88,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
GT2600
Type
Veneer Production Machine
Automatic
Automatic
Certification
CE
Name
Face Veneer Slicer
Application Field
Plywood Manufacturing Plant
Voltage
380V/415V /Customizable
Other Products
Log Debarker, Veneer Stacker , etc
Size
1300mm 2600mm 2900mm
Key Selling Points
High Efficiency , Long Service Life
Machinery Test Report
Provided
Video Outgoing Inspection
Provided
Project Solution Capacity
Cross Categories Consolidation
Core Components
Bearing , Motor , Gearbox , PLC ,etc
After Sale Service
Online Technical Support
Transportation
by Sea
Delivery Time
Depend on Your Quantity
Condition
New
Warranty of Core Components
2 Years
Transport Package
by Container
Specification
2900mm 3200mm
Trademark
GTCO
Origin
China
HS Code
8465
Production Capacity
100/Month

Product Description

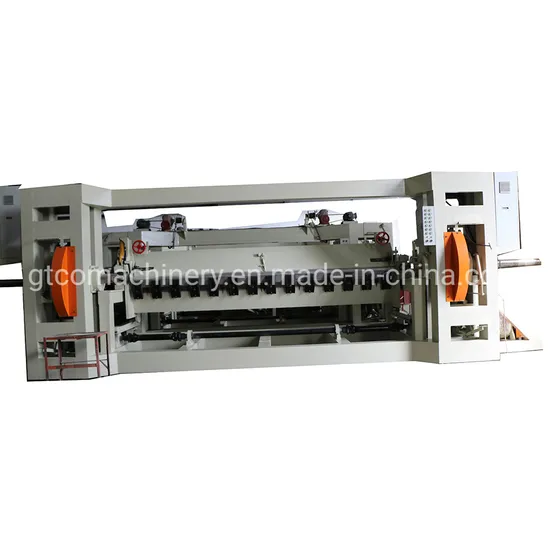

CNC Technical Spindle Wood Veneer Peeling Lathe Machine

Spindle peeling machine mainly processing big diameter wood like 1200mm, 1200mm to make thin face veneer. if your log diameter is bigger than 700mm, this spindle peeling machine will be a good choice for you.
it has 4feet and 8feet is customized according to your needs.

Product Parameters

Type 1500A 1500B 1700B
Cutting Size (DxL) Φ1500×2600mm Φ1500×2600mm Φ1700×2600mm
Min Residual Diameter Φ110mm Φ110mm Φ110mm
Max. Diameter 1500mm 1500mm 1700mm
Cutting Thickness 0.2-2.0 mm 0.2-2.4 mm 0.2-2.4 mm
Cutting Speed 48-75meters/min 48-75m/min 48-75m/min
Power 36kw 42kw 47kw
Peeling Blade Size 2700x180x16mm 2700x180x16mm 2700x180x16mm
Dimensions(LxWxH) 4500x2300x2300mm 5400x2150x3100mm 5400x2300x3500mm
Total Weight 5600kg 8200kg 8700kg

Product Description
1) New structure---more rational, more sturdy and durable, equal force.
2) New original material---wear resistant, not easy to be out of shape.
3) Famous brand motor----- more powerful, work well for hardwood.
4) Heavy Duty----machine weight is about 7500, heavy enough for any kind of wood and big diameter log.
5) Control system----Adopt New programing, work stable and increase production capacity. Detailed Photos
Packaging & Shipping
Company Profile
WHO WE ARE
GTCO Machinery company is located in Xicheng New District, Linyi City--- a commercial and logistics city.
After more than 20 years' continuous innovation and development, Machinery has become an outstanding enterprise along with strong power, advanced technology and excellent quality Products are sold nationwide, exported to Asia , Europe , Africa and Oceania... etc .
WHAT WE DO
We have strong technical strength, talented people, and constantly introduce various automation and semi-automatic products. Now the national key promotion panel automation transformation production line, plywood production line, veneer machinery .automatic edge cut machine, veneer peeling production line, veneer dryer, automatic veneer cutting machine, hot press, cold press, lifting platform, automatic putty- scraping machine, and glue spreader, etc.
2020 years, we join in the new design and construction machine - stone crusher, the main product has PE Jaw Crusher, PF Impact crusher, CS Cone crusher Feeder and screen Mobile crusher. etc.
We always right here waiting for service to you!
Welcome to visit us.
WHY CHOOSE US
1. Customized equipment, especially of unusual size, press, etc.
2. High quality and technical support
3. So rich international-trade experience for machinery.
4. 7*24hour online service.
