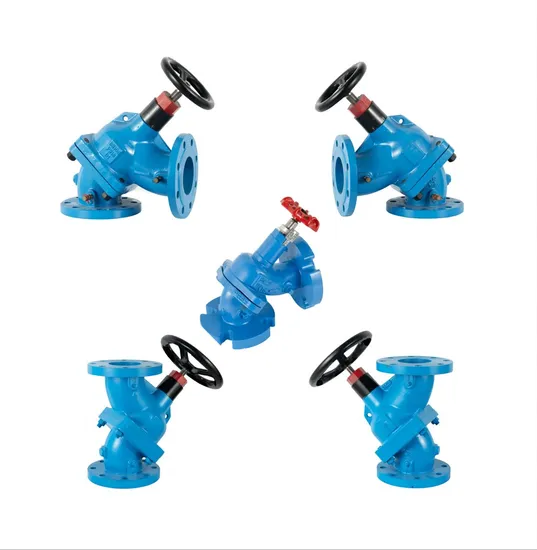

Cast Iron/Carbon Steel BS4504/DIN/ANSI B 16.5 Class 125/150 Size 2′-12 Triple Duty Check Valve Water Check Valve Backflow Preventer

Product Description

Cast Iron/Carbon Steel BS4504/DIN/ANSI B 16.5 Class 125/150 Size 2'-12 Triple Duty Check Valve Water Check Valve Backflow PreventerProduct Description
Triple duty control check valve is generally used for pump control in open water supply systems and closed circulation systems.
It is often installed behind the water pump outlet or rubber expansion joint to achieve flow regulation, check, cut off, and change the installation direction.
Specification

NO.	Name	Material
		Chinese Standard	ASTM Standard
1	Body	QT450-10	A536 65-45-12
2	Disc	HT250+EPDM	ASTM 126-ClassB+EPDM
3	Spring	0CrNi18	ASTM A276 304
4	Upper Body	QT450-10	A536 65-45-12
5	Hand Weel	Carbon Steel	ASTM A570

Nominal Diameter: DN65-DN300,2 1/2'--12'
Nominal Pressure: Class125/PN16/PN25
Flanged End Standard: ANSI B16.1,EN1092-2,GB/T17241.6
Working Temperature: -20ºC- 120ºC

NPS	2.5	3	4	5	6	8	10	12
DN	65	80	100	125	150	200	250	300
L1	187	208	244	305	359	481	516	611
L2	117	98	111	140	168	233	248	356
H(Open)	328	346	353	460	508	697	799	981
Kv	48.29	82.56	117.5	211.49	383.37	464.87	793.17	1139.48
Cv	56.4	96.4	137.1	246.8	447.4	542.5	925.6	1329.8

Advantages
1.This valve should be installed at the outlet side of the pump. It can be installed vertical or horizontal.
When install it at vertical position, the medium should flow from down to up.
2. Can connect with 90° flanges or 180° flanges.
3. This valve has Non-return, regulating, close flow function.
4. All sizes have special lifting hole, can be installed conveniently.
