500m 1000m Water Well Camera Borehole Inspection Camera for Sale

Product Description

500M 1000M Water Well Camera Borehole Inspection Camera For Sale Product Description
The High-Definition Panoramic Camera for Piling Inspection is a state-of-the-art inspection tool for pipe piles, offering a combination of frontview high-definition imaging, 360° sideview scanning, and localized HD recording. This device ensures detailed inspections for assessing the integrity of pipe pile structures with precision and clarity. Application Main Applications:
Full Borehole Wall Imaging and Recording: The instrument is capable of capturing full panoramic high-definition images and recording videos of the entire borehole wall. This feature is particularly useful for visual inspections and documentation of the internal condition of pipe piles, which is essential for maintenance, repair, and integrity assessments.
Lateral High Precision Scanning: With its high precision and high-definition 360-degree continuous rotary scanning capabilities, the device can meticulously examine the lateral surfaces of pipe piles. This is beneficial for identifying any irregularities, such as cracks, corrosion, or deformations, which could compromise the structural integrity of the pipe piles.
Accurate Measurement of Defects: The TS-GC1201(A) Pipe Pile HD Panoramic Imager allows for the precise measurement of pipe pile joints and wall fractures. This is crucial for determining the extent of damage and planning appropriate remedial actions.
Inspection of Large-Diameter Wells and Pipelines: Beyond pipe piles, the instrument is also utilized for panoramic high-definition imaging and lateral scanning of large-diameter wells and pipelines. This application is vital for monitoring the condition of these critical infrastructures and ensuring their safe and efficient operation.
Construction and Engineering Projects: The device is frequently employed in construction and engineering projects where the installation, inspection, or maintenance of pipe piles is required. Its non-intrusive and detailed imaging capabilities make it an invaluable tool for engineers and technicians.
Environmental and Geotechnical Studies: The instrument can be used in environmental and geotechnical studies to assess the condition of underground structures and their interaction with surrounding soil and water. This helps in understanding the impact of construction activities on the subsurface environment.
Asset Management and Maintenance: For asset management and maintenance purposes, the TS-GC1201(A) Pipe Pile HD Panoramic Imager provides a reliable and efficient means of conducting regular inspections of underground infrastructure. This ensures the timely detection of potential issues and supports proactive maintenance strategies.
Our Advantages Features:
High-Definition Imaging: The device is equipped with a high-definition camera capable of capturing 1080p clear and fine images. This ensures that the visual data obtained is of exceptional quality, allowing for accurate analysis and assessment of the pipe pile's condition.
360-Degree Panoramic Viewing: The combination of frontview 360-degree panoramic imaging and sideview rotary scanning provides a comprehensive view of the pipe pile's interior. This feature is crucial for identifying and documenting any defects or irregularities that might be present.
Real-Time Data Acquisition and Processing: The instrument's high intelligence, powered by a dual-core processor, enables real-time automatic panoramic image acquisition and rapid seamless image stitching. This ensures that the data collected is both timely and accurate, facilitating efficient inspections.
User-Friendly Analysis Software: The integrated analysis software offers a synchronized view of dynamic recordings, 2D expansion diagrams, 3D histograms, and space trajectories. It simplifies the process of generating detailed inspection reports with just a single click.
Portability and Ease of Use: The compact and lightweight design of the instrument, along with its rechargeable and portable electric cable rack, makes it convenient to transport and operate in various locations. The system is also easy to learn and use, even for beginners.
Robustness and Reliability: The TS-GC1201(A) Pipe Pile HD Panoramic Imager is built with a high level of integration and robustness, ensuring stable performance. It is also sealed to provide good waterproof and dustproof properties, making it suitable for use in harsh environments.
Low Power Consumption: The system operates on a wide voltage range and can be powered by either an internal high-capacity lithium battery or an external battery. This design ensures a continuous working time of no less than 10 hours, which is beneficial for extended inspections.
Versatile Display Options: The analysis software allows for flexible switching between different types of displays, including plane expansion diagrams and 360-degree rotating 3D histograms. This versatility aids in better understanding and presenting the data.
Pressure Resistance: The probe, featuring a stainless steel housing and tempered optical glass cover, is designed to withstand significant pressure, up to 10MPa, making it suitable for use in deep and challenging environments.
Customizable Configuration: The product comes with a customizable configuration list, allowing users to select the appropriate probe size and additional accessories based on their specific needs. This ensures that the instrument can be tailored to suit a variety of applications and requirements.

Product Parameters
Technical Introduction:
Host (Main Unit) Specifications:
Display: 7-inch true color LCD screen with adjustable backlight for optimal visibility under various lighting conditions. Processor: High-performance low-power embedded dual-core processor that ensures efficient and quick data processing. Control Mode: Touchscreen interface for intuitive operation and control. Data Interface: USB 2.0 for fast and reliable data transfer and connectivity. Protection Level: IP67 rating, indicating the device is dust-tight and can be submerged in water up to 1 meter for 30 minutes, ensuring durability in challenging environments. Memory: 32G TF memory card for ample storage of high-definition images and data. Operating System: Linux-based system for stability and compatibility with various software applications. Power Supply: Rechargeable high-energy lithium battery or external 12V battery, supporting continuous operation for over 10 hours. Dimensions: 255mm (L) x 180mm (W) x 60mm (H) for compactness and portability. Weight: 1.7KG for ease of transport and use. 2. Probe Specifications:

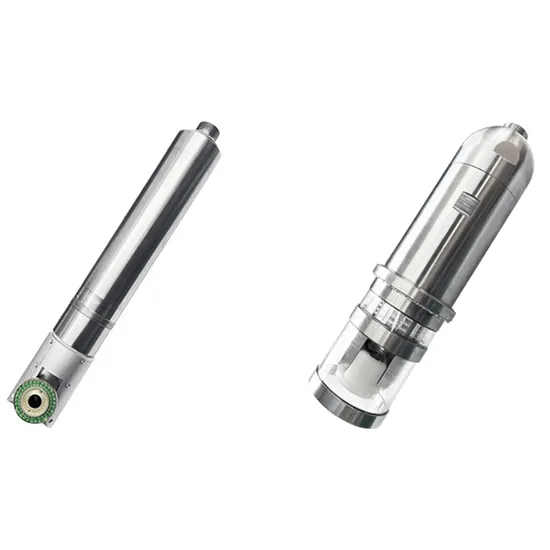

Diameter: Available in two sizes, Φ85mm and Φ116mm, to accommodate different pipe pile diameters. Power Supply Mode: Built-in battery ensures uninterrupted operation and eliminates the need for external power sources during inspections. Cameras: High-definition cameras with 0.01Lux low-light capability and 360° panoramic view, offering a comprehensive visual assessment of the pipe pile interior. Image Pixels: 20 million pixels for detailed and crisp imaging, enabling precise identification of even the smallest defects. 3D Compass: Providing obliquity and azimuth measurements with precision of 0.1°, essential for accurate defect characterization. Operating Temperature: Capable of functioning in a wide temperature range of -10ºC to 60ºC, suitable for both indoor and outdoor inspections. Check Aperture: Designed to inspect holes with diameters ranging from Φ120mm to Φ1000mm, offering a broad range of applicability. Check Hole Depth: Standard depth rating of 100 meters, with customizable options for specific project requirements. Controller: High-performance MCU for reliable and efficient control of the probe's functions. Auxiliary Light Source: Adjustable intensity of ≥30Lux through the host software, ensuring optimal illumination in low-light conditions. Dimensions: Φ85X450mm and Φ116X397mm, tailored to the probe sizes for efficient scanning. Weight: 2.8KG and 6KG respectively, designed for durability without compromising portability. 3. Configuration List:
The standard configuration includes the main host unit, a choice between Φ85 or Φ116 probe, a depth encoder, a manual winch with customizable cable length up to 100 meters, an optional electric winch, a data transmission line, chargers for both the host and probe, vacuum insulated silicone grease, a flash drive for data storage, an aircraft chassis for protection during transport, a certificate of quality, and an instruction manual for user guidance Packing List
